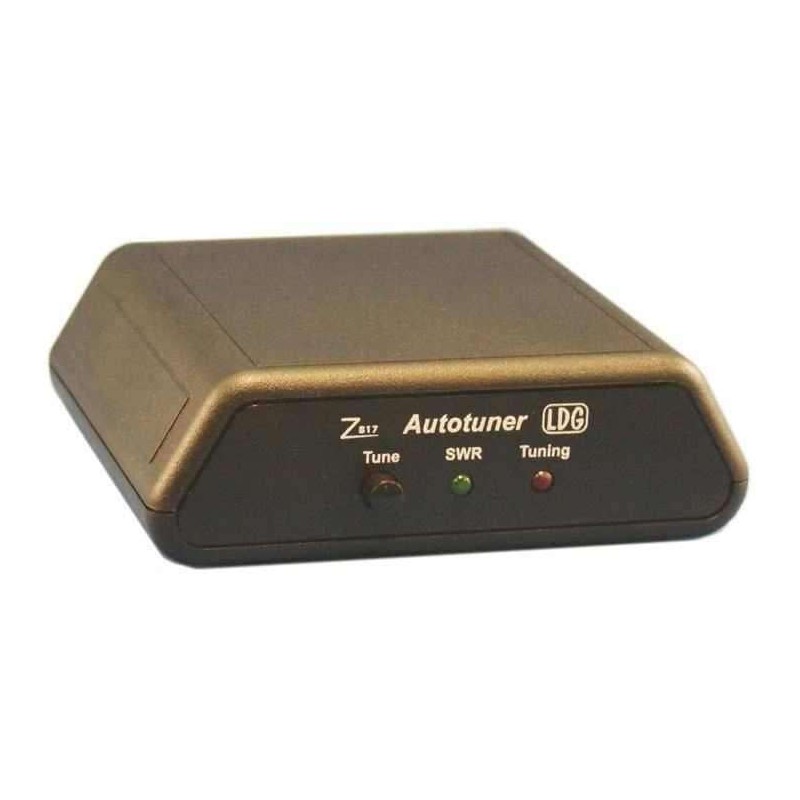

LDG Z 817 for QRP devices

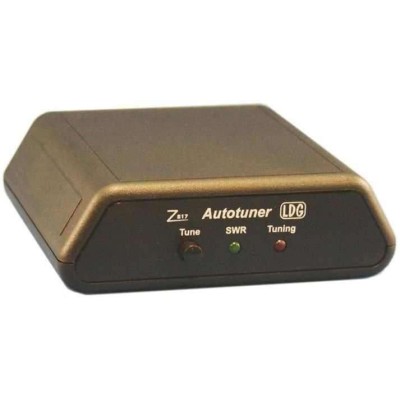

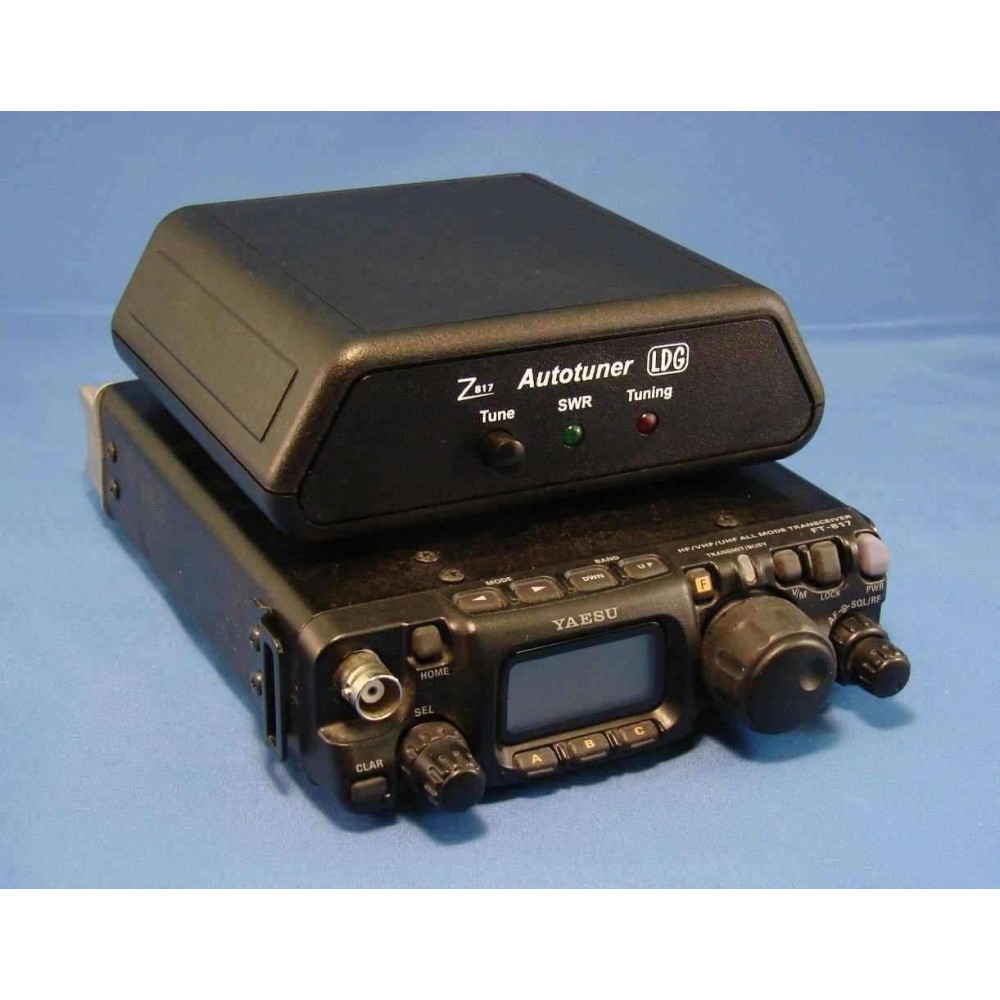

The Z-817 is the final Autotoner for the QRP radio including the Yaesu FT-817 (D). The Z-817 interfaces at the CAT (ACC) on the back of the FT-817 radio with the cable supplied. Optimization could not be simpler; A pusher pulsating on the tuner is all necessary and the Z-817 deals with the rest. We move on to PKT mode, transmit a carrier, tune the tuner, then restore the radio to the previous mode! 2000 memories cover 160 to 6 meters.  {

Of course, the Z-817 will also work as an antenna tuner for general use with other QRP radio. Just transmit a carrier and press the Tune button on the tuner. The Z-817 is powered by four AA internal alkaline batteries (not included), so there are no additional cables necessary to use the Z-817. Relè block are used so that energy consumption is zero when it is not developed that it allows a set of batteries to last about a year.  {

Technical data LDG Z-817

• {
• RF Power 0.1 to 20 Watts SSB, CW and Digital Modes (Z-817H: 75W)

• {
• Latching Relays for Ultra Low Power Consumeration

• {
• Battery operated 4 x 1.5V Alkaline AA (Not Included)

• {
• built-in cat port interface. Cat Thru Port for Computer Connection. {

• {
• 2000 Memories When Used With FT-817 Interface (200 Memories for Other Radios)

• {
• 1.8 to 54 MHz Coverage

• {
• Tunes 6 to 600 Ω (About 10: 1 SWR Range). 16 to 150Ω on 6m (about 3: 1)

• {

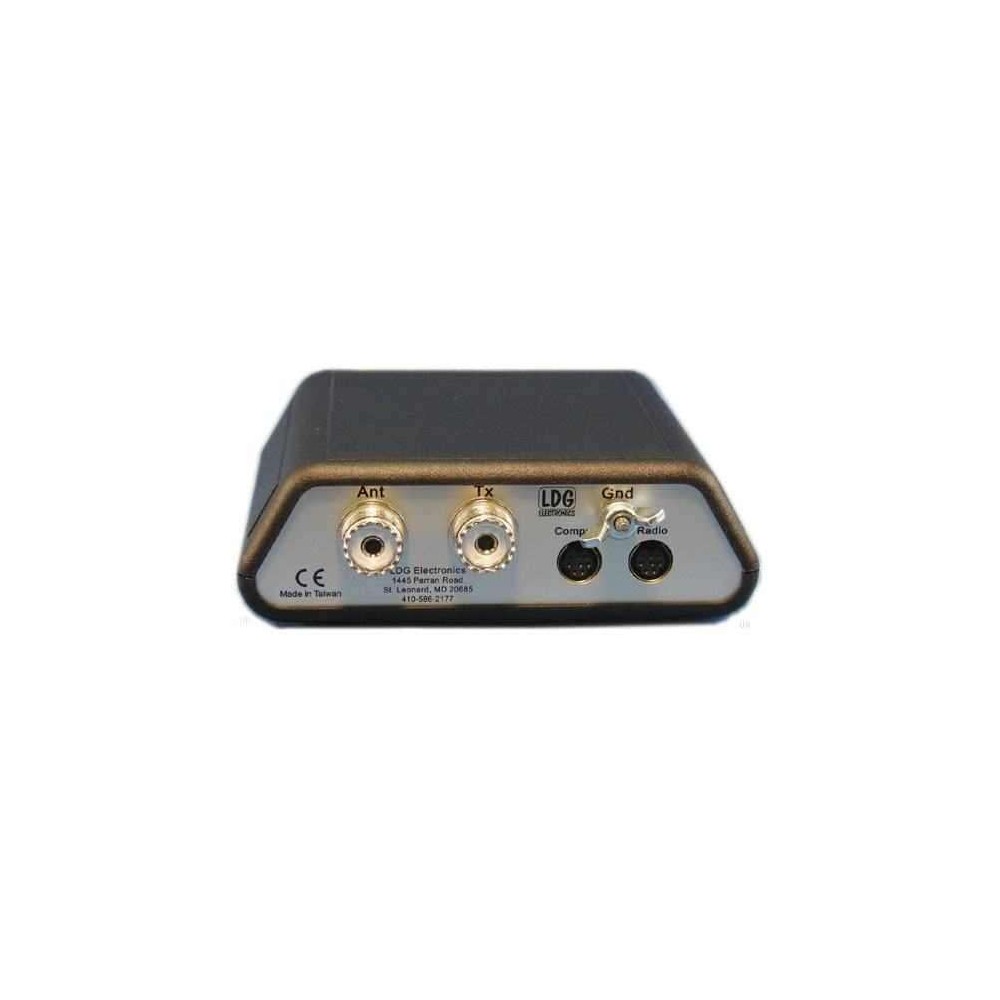

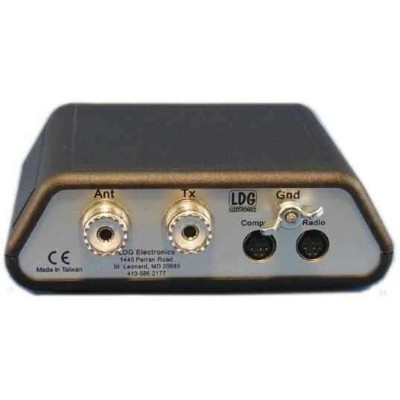

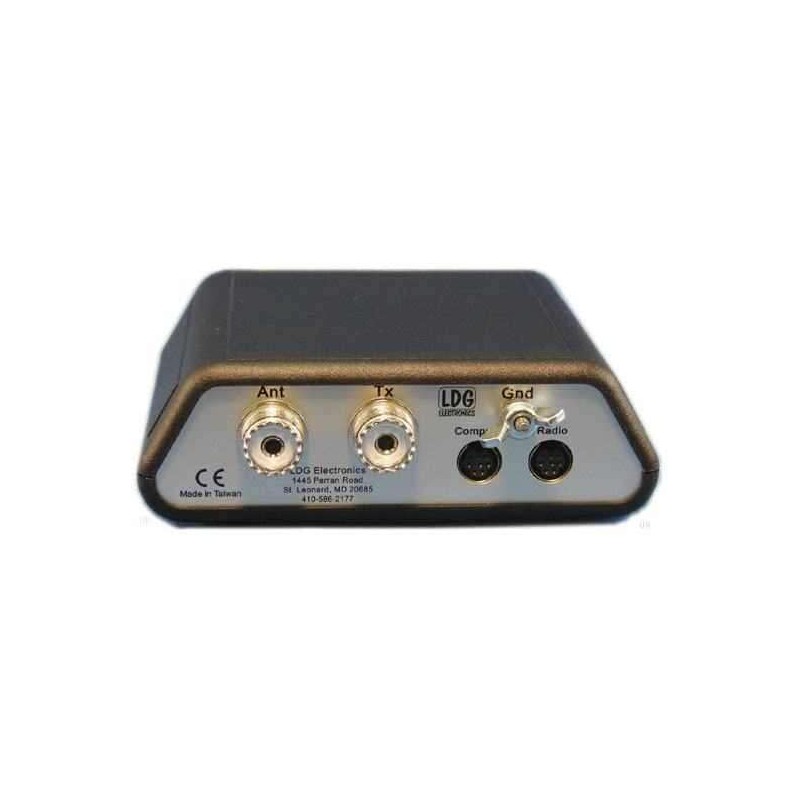

• SO-239 in and out Connections for Dipoles, Verticals, Beams, G5RV, OCF, Cobra, ect. {

• dimensions: 120 x 43 x 130 (Whd). Weight: approx. 300g (Without batteries). {

• {
• Manual attention in German and English
