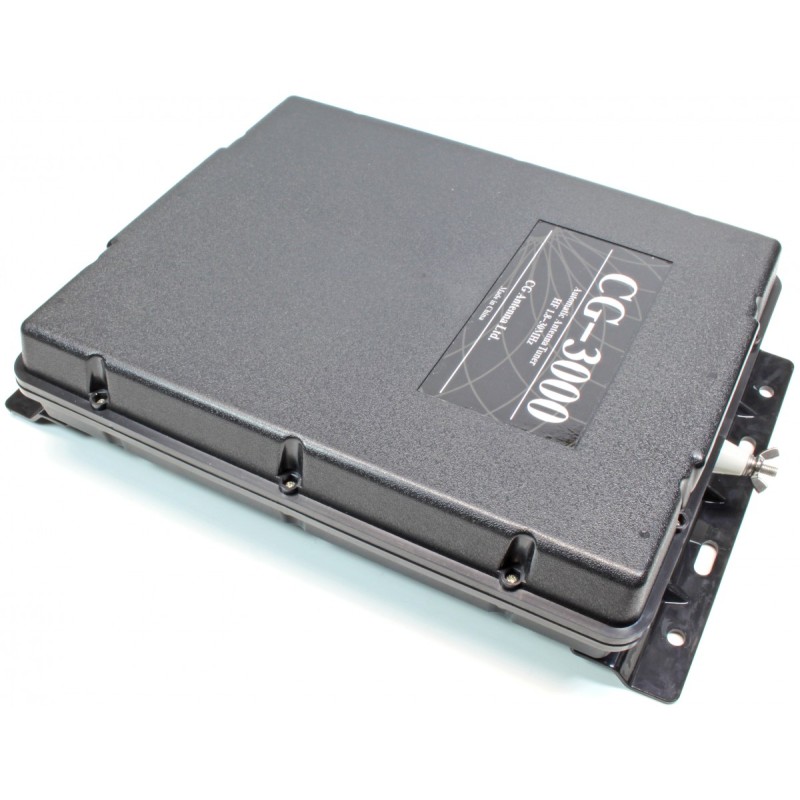

CG 3000 Automatic pole tuner with CTU

The CG-3000 is a reliable automatic tuner for hf from 1.6 to 30mhz, for vertical, longwires, dipoli etc. as the well-known SG-230 This touched member of the philri or monopoly antennas, the antenna connector is simply a high-viewing connector. The tuner has a range from 12 to 1000 Ω, max. Loading power: 150W. {

Once the agreement has been found, it is stored in a non-fees, so that a new agreement on a similar frequency will be very fast. The Tuner uses a Pi network that has the advantage (compared to the L) to act as a passa-low additional filter, reducing the emission of spuries. {

The CG-3000 tuner opera at 12V DC, no other cholening cables are required. The sturdy plastic container is also suitable for external use, landing size. 365x240x75mm. The minimum length of the antenna is 2.5m for 6MHz frequencies and beyond, or at least 8m from1.8mhz and beyond. With a small fiber glass pole (not included) and a little thread (not included) you can build a good antenna for all bands. {

{ In the price the CG-CTU command is included

Specifications
