CG 3000 Automatic Palo tuner

Name: CG 3000 Automatic Palo tuner
Brand: CG Antenna
SKU: CG-3000
Price: 232.71 EUR
Availability: InStock

Reference CG-3000

In Stock

€232.71

Order processing times and shipping times:

Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.

Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.

Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.

When will it arrive?

Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.

Deliveries are made Monday through Friday.

Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.

Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.

Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.

{{

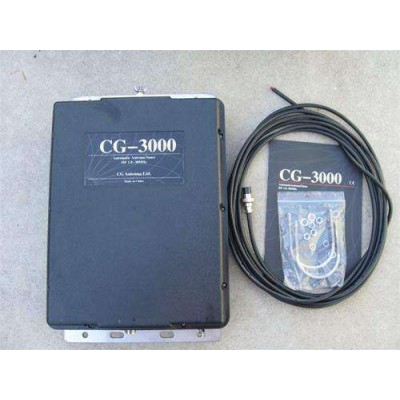

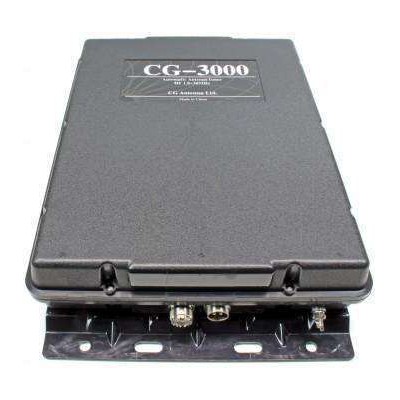

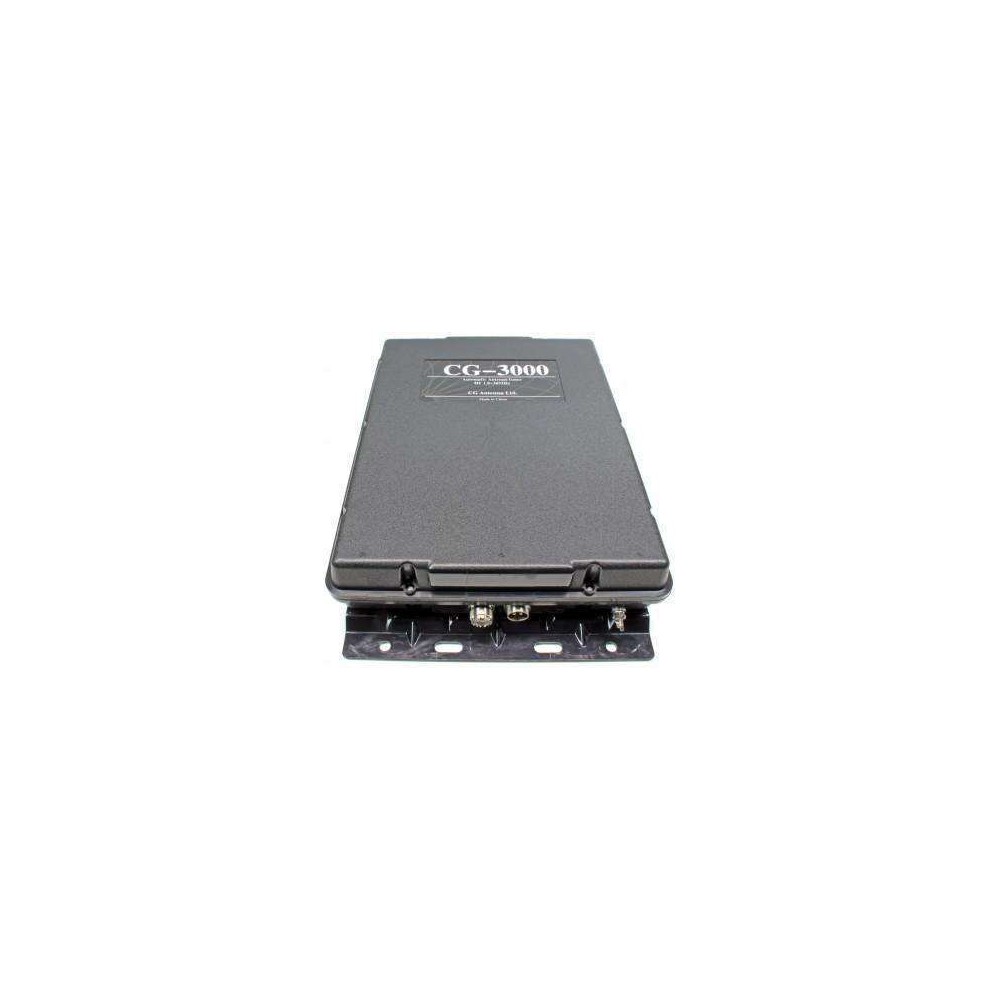

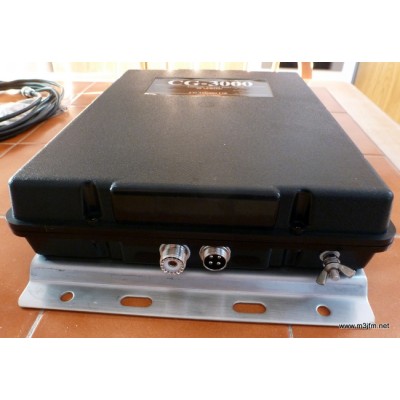

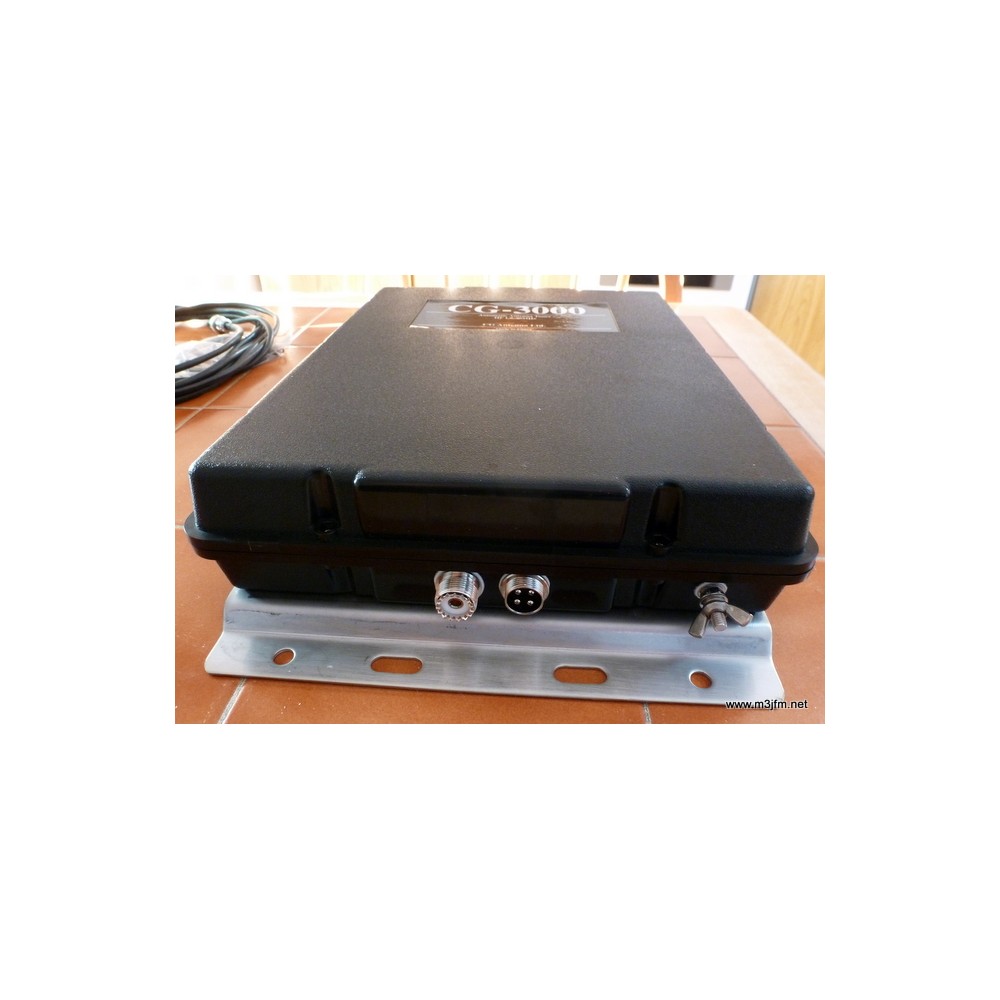

{ The CG-3000 is a reliable automatic tuner for hf from 1.6 to 30mhz, for vertical, long wire, dipoli etc. as the well-known SG-230 This touched meletrine tuned filters or monopolies, the antenna connector is simply a high-viewing connector. coaxial, first connects the screen to the mass. The tuner has a range from 12 to 1000 Ω, max. Loading power: 150W. { {

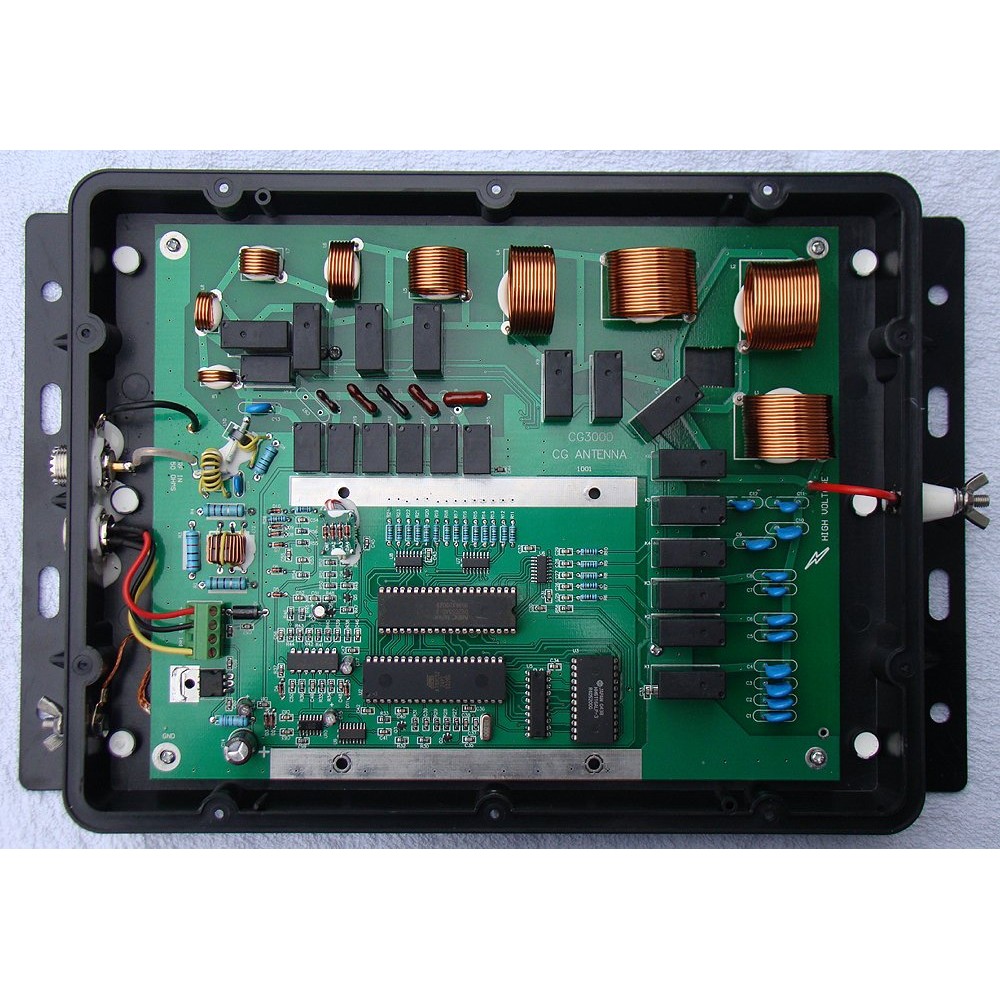

Once the agreement has been found, it is stored in a non-favorable memory, so that a new agreement on a similar frequency will be very fast. The Tuner uses a Pi network that has the advantage (compared to the L) to act as a passa-low additional filter, reducing the emission of spuries. {
The cg-3000 tuner to 12V DC, other connection cables are not required. The sturdy plastic container is also suitable for external use, landing size. 365x240x75mm. The minimum length of the antenna is 2.5m for 6MHz frequencies and beyond, or at least 8m from1.8mhz and beyond. With a small fiber glass pole (not included) and a little thread (not included) you can build a good antenna for all bands. {

{

technical characteristics

{
{ {003 003} Tantonable frequency: 1.8 - 30 MHz with 8 -meter long wire antenna {
{ Input impedance: 45-55 ohm {
input power: 10 - 200 W Pep {
ROS: & LT; 2: 1 {
{ Power voltage: 12V +/- 10% {
{ CONSUMPTION CONSUMPTION: & LT; 0.8 A {
Automatic tuning time: ca. 2 seconds (first tuning) less than 1 second (return to memory frequency) {
Memory channel: 200
Weight: 1.8 kg
dimensions: 310 mm x 240 mm x 72 mm (length - width - height)
