Mat 600a Automatic tuner HF 600 Watt

{

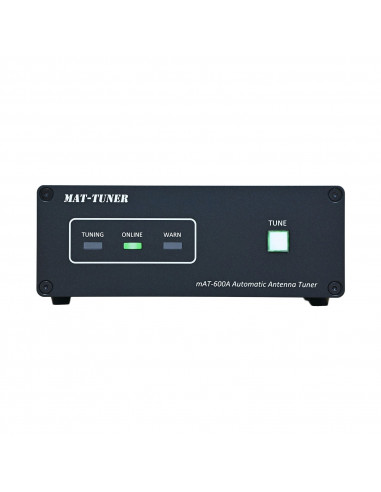

The Mat-600a is a universal automatic tuner for the entire range of short waves from 1.8 to 54 MHz. It is compatible with almost all linear transceivers and amplifiers and is particularly suitable for stations with high power requirements. The antenna adaptation takes place automatically by pressing a button on the front panel of the appliance, without the need for a separate control connection with the radio device. Three LEDs inform during the process on the state of tuning, on the active operating status or on any notices in the event of inadequate transmission power. {

{

{

The housing of the tuner is made of precision aluminum with precision and combines the mechanical robustness with a compact and portable design. With a weight of about 1.9 kg and dimensions of 92 × 75 × 193 mm, the device can be easily integrated even in mobile or restricted environments. The power supply is provided by a continuous voltage from 12 to 15 V with a minimum consumption of 1 A. The tuner lights up automatically as soon as it is powered, there is no power switch. {

{

{

is particularly practical the integrated memory for a maximum of 16,000 frequency ranges. If the settings are already stored, the adjustment takes place almost without delays, in a few milliseconds, while for unknown frequencies the tuning does not generally require more than eight seconds. For tuning, the transmission power must be reduced to 5-15 W; If you use a linear amplifier,This must be temporarily put in bypass mode. An integrated bypass relay in the tuner also allows you to completely exclude the device from the signal path if necessary.

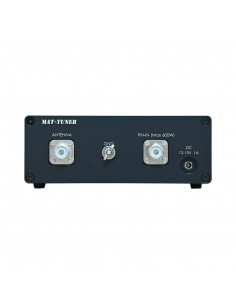

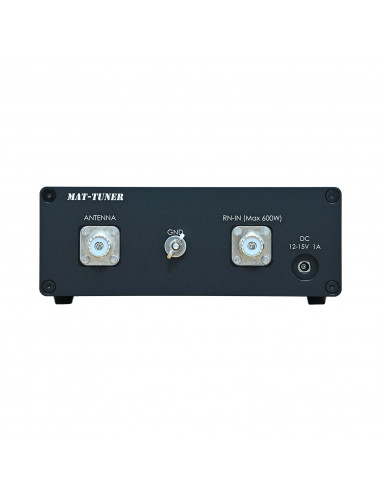

the entrances and exits are made as a pl (SO-239) And a ground connection is also available. The Mat-600a is designed exclusively for use in dry internal environments and must be protected from humidity and direct atmospheric agents.

in the complex, the Mat-600a offers a stormy solution, To be used for a quick and reliable adaptation of the antenna, regardless of the radio device used or the structure of the station.
