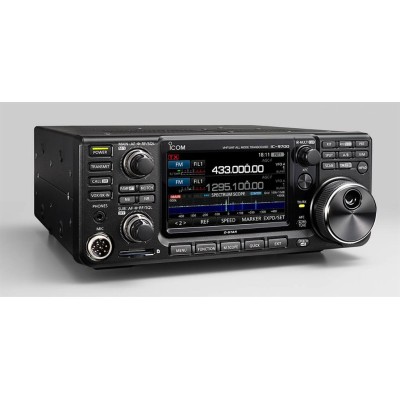

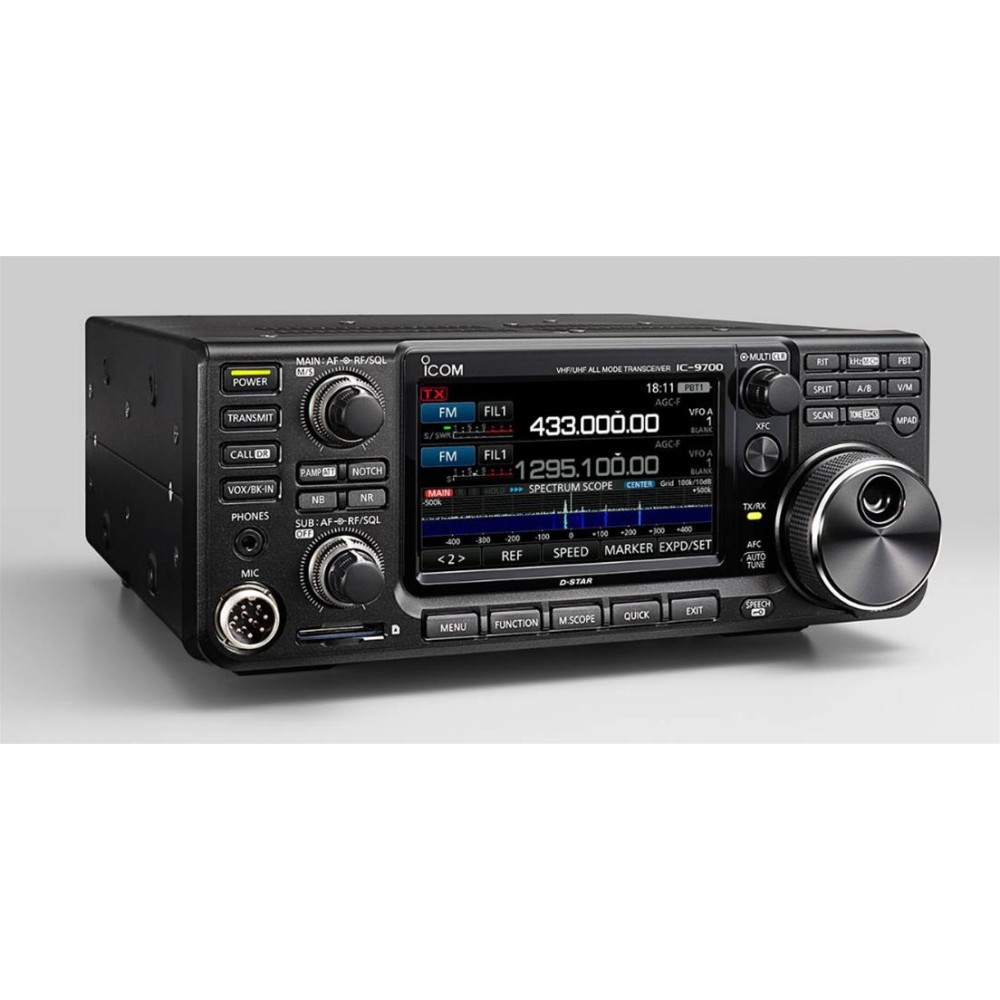

ICOM IC-9700 transceiver 144/430/1200 MHz from base

Write a review

€1,789.00

The IC-9700 uses direct sampling technology in RF for VHF and UHF operations. This technical solution allows to reduce hardware complexity, improving the signal/noise ratio. {

ICOM plans to launch this high -performance transcneiver on the market at the beginning of next year. {

We expect the question for this product, especially dedicated for SSB, EME and Satellite traffic, is important. We want to clarify that this indicative price and availability in Italy could be subject to changes. {

Possibility of Modifca

The frequencies after the modification will be:

144 - 148 MHz

430 - 450 MHz

{ 1240 - 1300 MHz

Main features:

} Base station Tri-Banda 144MHz, 430MHz (direct sampling in RF) and 1.2GHz (conversion) {

{
Supports all the CW / AM / SSB / FM / RTTY and D-Star Digital Voice and Digital Data ways 008} {

{
New PA with RF 100W power (2m), 75W (70cm) and 10W (23cm) {

} display Touchscreen TFT LCD color 4.3 ″ {

{{007 007} Automatic Satellite Doppler Effect Management with Normal / Inverse Hands in SSB and 99 Satellite Channels that can be memorized {

frequency stability 0.5ppm {

{
Entrance for external reference 10MHz {

spectrum analyzer with the Real Time Scope function {

{
Dual Watch and Full Duplex operation in satellite mode (TX/RX on different bands) {

{
AUDIO Registration / Reproduction function (SD memory card) {

{ General

frequency coverage:

144.000-148.000, 430.000-450.000, 1240.000-1300.000 MHz

144.000-146.000, 430.000-440.000, 1240.000-1300.000 MHz

Mode: SSB, CW, RTTY, AM, FM, DV, DD

number of channels: 107 (99 Simplex + 6 scan margins of the program + 2 calls) × 3 gangs,

Antenna connectors: 99 (satellite), 2000 (Dr function)

144 MHz so-239 (50 Ω),

Power requirements: 430/440, 1200 MHz Type-N (50 Ω)

13.8 V cc ± 15% (negative mass)

Energy consumption: TX less than 18 a (high power)

Operating temperature interval: RX 1.2 in Typical (Standby), less than 1.8 A (Massimo Audio)

from -10 ° C to + 60 ° C; 14 ˚F at 140 ˚F

Frequency stability: less than ± 0.5 ppm (from -10 ° C to + 60 ° C, from 14 ° F to 140 ° F)

frequency resolution: 1 Hz

Dimensions: 240 × 94 × 238 mm, 9.4 × 3.7 × 9.4 inches (L × A × P, projections not included)

weight: 4.7 kg, 10.4 lb (approximate)

transmitter

outgoing power:

144 MHz 0.5-100 W 0,125-25 W

430/440 MHz 0.5-75 W 0,125-18.75 W

1200 MHz 0.1-10 W 0.025-2.5 W

Modulation system:

SSB Digital PSN modulation

FM Digital Reactor Modulation

Modulation AM Digital Low Power

DV -DIGITAL GMSK DV Reactivity Modulation

Square digital DD modulation

Spuries emissions:

144 MHz less than -63 db less than -60 db

430/440 MHz less than -61.8 db less than -60 db

1200 MHz less than -53 db less than -50 db

Suppression of the load -bearing: over 50 db

unwanted side band: over 50 db

microphone impedance: 600 Ω

receiver

Receiving system: 144, direct sampling RF 430/440 MHz

Low conversion to 1200 MHz if intermediate frequency sampling: 311-371 MHz (1200 MHz)

Sensitivity (Preamp: On, Filter: Soft):

SSB / CW (10 db s / n) less than 0.11 μv

am (10 db s / n) less than 1.0 μv

FM (Sinad 12 db) less than 0.18 μv

DV (1% Ber) (PN9) less than 0.35 μv

DD (1% Ber) (PN9) less than 1.59 μV Selectivity (Filter: Shape):

SSB (BW = 2.4 kHz) more than 2.4 kHz / -3 db, less than 3.6 kHz / -60 dB CW (BW = 500 Hz) more than 500 Hz / -3 dB, less than 700 Hz / -60 db RTTY (BW = 500 Hz) more than 500 Hz / -3 db, less than 700 Hz / -60 db am (BW = 6 kHz) more than 6 kHz / -3 db, less than 15 kHz / -60 dB FM (BW = 15 kHz) more than 12 kHz / -6 dB, less than 20 kHz / -60 dB

DV (Spacing 12.5 KHz) More than -50 dB DD (spacing 300 kHz) more than -40 dB

Spuria and refusal report of the image:

SSB/CW 144, 430/440 MHz over 70 dB, 1200 MHz over 50 dB

am / fm / dv 144, 430/440 MHz over 60 db, 1200 MHz over 50 dB

DD 1200 MHz over 50 db

audio output power: over 2.0 W (distortion of 1 kHz, 10%) in a load of 8 Ω

Download the manual in Italian here

{

D-Star (Digital Smart Technology for Amateur Radio) is a digital radio protocol developed by Jarl (Japan Amateur Radio League). ICOM, ICOM Inc. and the ICOM logo are registered trademarks by ICOM Incorporated (Japan) in Japan, United States, United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and / or other countries. This product includes "Zlib" and "Libpng" Open Source software and is licensed based on the open source software license. Android and Google Play are registered trademarks or google Inc. brands. All other brands are owned by their respective owners.
