Flexradio Flex 8400m ATU SDR Removal 100 Watt
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{
{
{
{
Flexradio Flex 8400m ATU SDR Tunder 100 Watt with including tuner. {

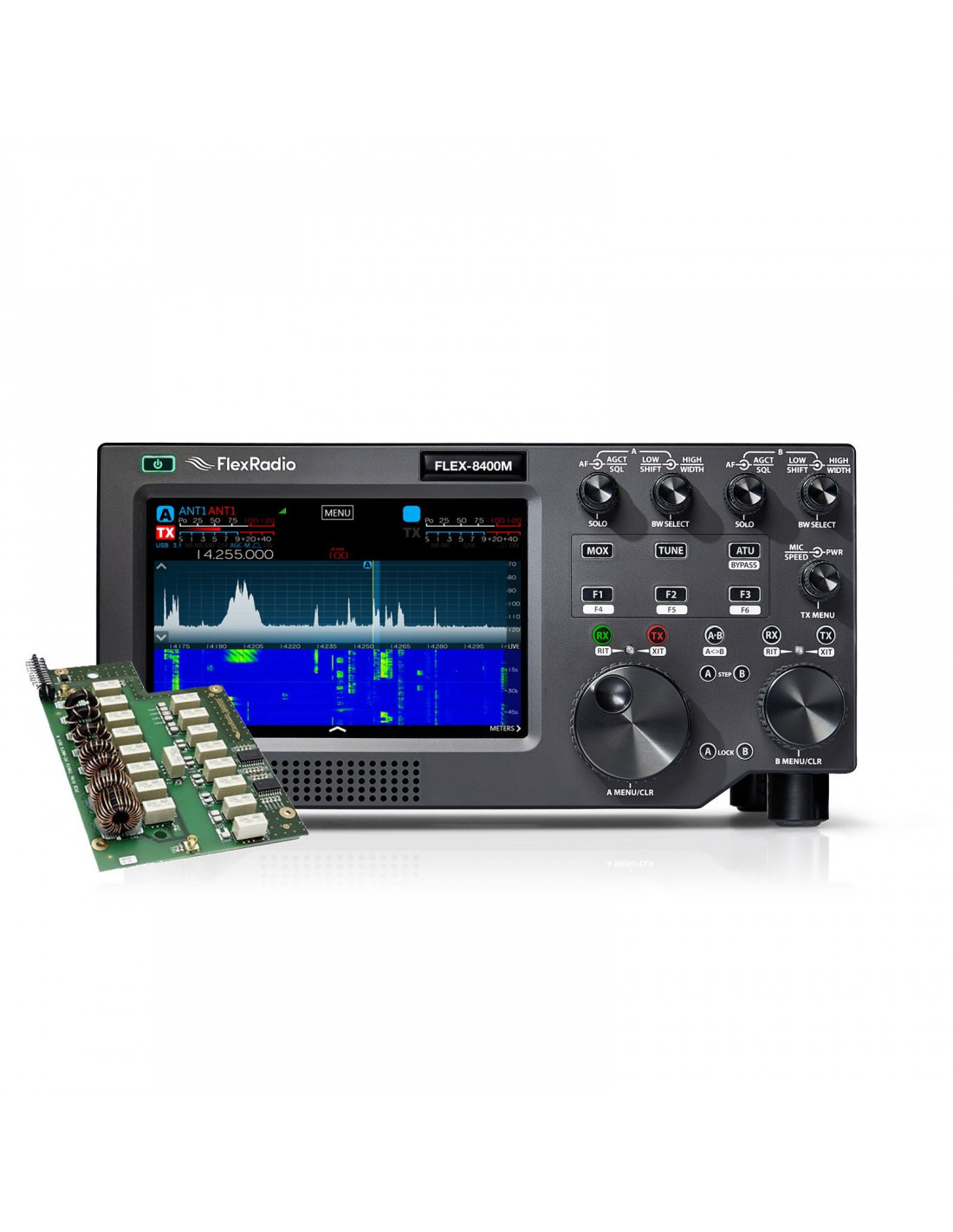

{ with the Flex-8000 series (consisting of the models 8400, 8600, 8400m and 8600m), flexradio launches the new generation of high-class SDR transceivers. In addition to the technical characteristics of the Flex-8400, the 8400'm ' is equipped with a complete control panel dominated by an 8-inch touch sensitive display (resolution 1920 x 1200 pixels).
{ is based on the architecture of the lucky Flex-6400m, but has a CPU with performance about four times higher and an FPGA with double performance. This increase in performance not only guarantees shorter start and loading times, but above all constitutes a solid base for the implementation of numerous future features that could not be made with previous hardware resources.
{ one of the first of these incoming news is the "adaptive pre-drilling" (APD) which, according to the manufacturer, offers the cleanest signal on a radio and amateur platform. All Flex-8000 models are also equipped with integrated GNSS (Global Navigation Satellite Navigation Satellite Navigation) and an integrated NTP time server as standard. This guarantees that all Flex-8000 transceivers always remain exactly on the same frequency. But even without a direct vision of the sky, the Flex-8400m can continue to use the internal TCXO.
{ Receivers are designed as direct scanning SDR receivers. A 122.8 MHz sampling frequency is used;The AD converter has a word width of 16 bit. The result is an exceptional 115 dB RMDR value (with a spacing of 2 KHz). As a visible result of this high -level digital technology, the user has a mm of up to 7 MHz available, more than enough to simultaneously observe different radio amateur bands and direct their activities accordingly.
{
The FlexRadio Flex-8400m SDR transceiver has been developed specifically for the most demanding radio amateurs and offers maximum flexibility and ease of use, as this top-of-the-range transceiver can be used as an autonomous radio without the need for a computer. The large integrated IPS display with Touch function provides information on the operating status and on the assignment of the bands at every moment and is completed by numerous "classic" commands such as rotary controls for volume adjustment, the sensitivity of the receiver and the VFO. - Of course, the latter are two, so that both receivers can be set individually and directly without having to access the menu. It is also possible to connect an external screen via the HDMI connection.
{
{
Alternatively, you can use the first-class remote functions of the Flex-8400m and comfortably check the radio via PC, laptop, Mac or iOS client. As an option, the Master console is also available, which can access the transceiver via WLAN or wired ethernet. As with all Flexradio transceivers, attention is paid to the practicality and simplicity of remote control.
{ The two completely independent SDR receivers meet an important requirement to work on the right in Split mode or to monitor other bands and other ways in a contest. Full Duplex crossband operation is also possible.
distance operation
Each Flexradio model, with or without front panel, can be easily controlled at a distance. The following options are available:
- {
- SmartSdr software on PC Windows
- Smartsdr for iOS on iPhone or iPad {
- Master console
Remote control can be carried out through the local network of the house, but also via the internet from a great distance. It doesn't matter where you are: you can control the rare DX station from your station, even if you are sitting in a hotel! With the latest V3 version of the Smartsdr software, it is even possible to make a transceiver work with two operators simultaneously. You can use any combination of the aforementioned devices: a PC, an iPhone/iPad or the Master Consul .
Since the power is at 13.8 V CC, the operation is not limited to the use as a fixed station, but also benefits the freedom to be able to use the device in the car, van or camper.
{
{
{ Technical data
- {
- Product Name flex-8400m ATU {
- Converter resolution from 16/122.88 msps {
- Freq Range Receiver 30 kHz - 54 MHz {
- supported band 160m, 80m, 60m, 40m, 30m, 17m, 15m, 12m, 10m, 6m {
- Potenza [W] 100 W
- 4 m band: able to transmit no, the change is not possible {
- Band 6 m: able to transmit yes, as delivered {
- Band 60 m: able to transmit yes, as delivered {
- color black {
- { brand flexradio {
- Mode USB, LSB, CW, AM, FM, RTTY {{} {
- bluetooth interface no
