ICOM IC-7300mk2 HF transceiver
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{
ICOM IC-7300mk2 Remotetering HF All-Mode compact for HF/50 MHz; The European version also includes { 5 mHz {004 004} 005} {{} and {005 005} {} 70 MHz {{{{{{{{{{{{{{{{{{{{H004 {{{{{{th # Porta significant updates to reception/transmission, connectivity and efficiency. {
{{
{
novelty of the MK2 - In short
- {
-
{
Improved RMDR (≈ 105 dB at 2 kHz) and significantly lower phase noise noise (typ. −139 DBC/Hz)
{ -
{
HDMI ™ exit for external monitor with spectrum/waterfall (optional audio)
{ -
integrated CW decoder - decoding of the Morse without PC
{ -
{

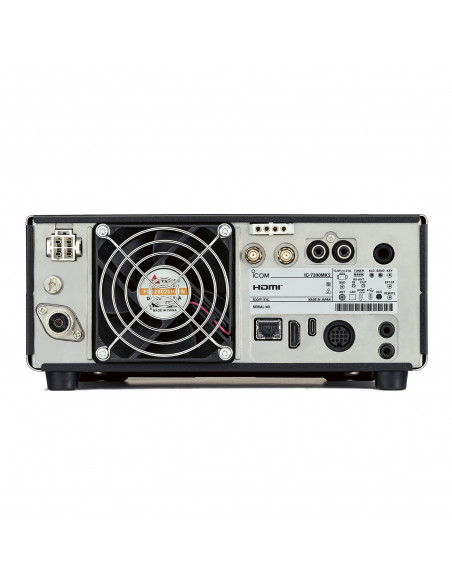

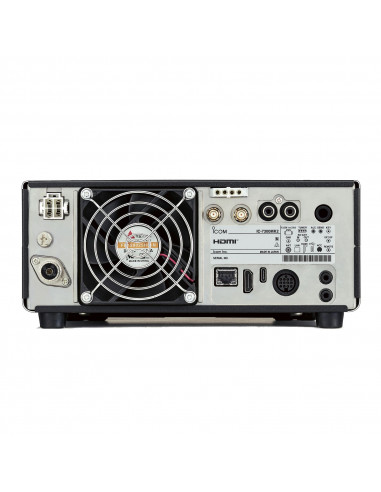

rx-antenna in/out (SMA) for separate RX routes, filters or preamplifiers
{ -
{
USB-C with two more audio commes commers (e.g. ft8 and logging in parallel)
{ -
{
via Lan with RS-BA1 (V2, optional, sold separately) -including remote ignition/shutdown, without PC server
{ -
{
RX current in standby reduced (≈ 0.7 a) for less heating
{
{
unchanged operating logic
The interface is identical to that of the IC-7300. Menu, touch control and work flows remain in the same points, reducing re-training and errors in Club or multi-user stations.
{
Reception and transmission
greater robustness to the strong signals thanks to the highest eart; The phase noise in TX decreases (typ. −139 DBC/Hz a 1 kHz). In practice: less influence of adjacent canal channels and more "clean" transmitted signals. The RMDR ({ mutual mixing Dynamic Range ) indicates immunity to mutual mixing due to the phase noise of the oscillator in the presence of strong adjacent signals.
{
efficiency and thermal
The RX current in standby drops from 0.9 to 0.7 a (tip.). Less dissipation means less heat and more stable prolonged sessions (contest).
{
Display and decoder
{

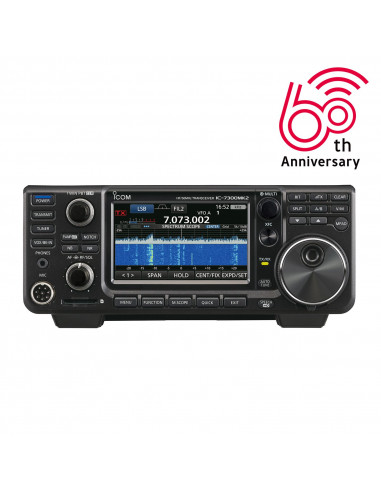

L output HDMI ™ allows you to show frequency, spectrum/waterfall, menu and, if desired, audio on a large external monitor.The integrated CW Decoder reads the Morse without PC; filtering and speed are adjustable.
rx paths and connectivity
rx-antenna in /out (SMA) separated allow dedicated RX antennas, closet or preamplifiers filters. With USB-C , two more audio commes commeri allow, for example, FT8 and logging via a single cable.
remote operations
lam Simplifies remote control: with RS-BA1 (version 2, optional, sold separately) the transceiver is manageable via the network/Internet- Including ignition/shutdown - without PC server in the station. Required network access and DC Power Continue.
{
bands and variants
{
The European version also supports the new band 5 MHz and 70 MHz . Note: pre-production information; The specifications can change before the shipment. {
