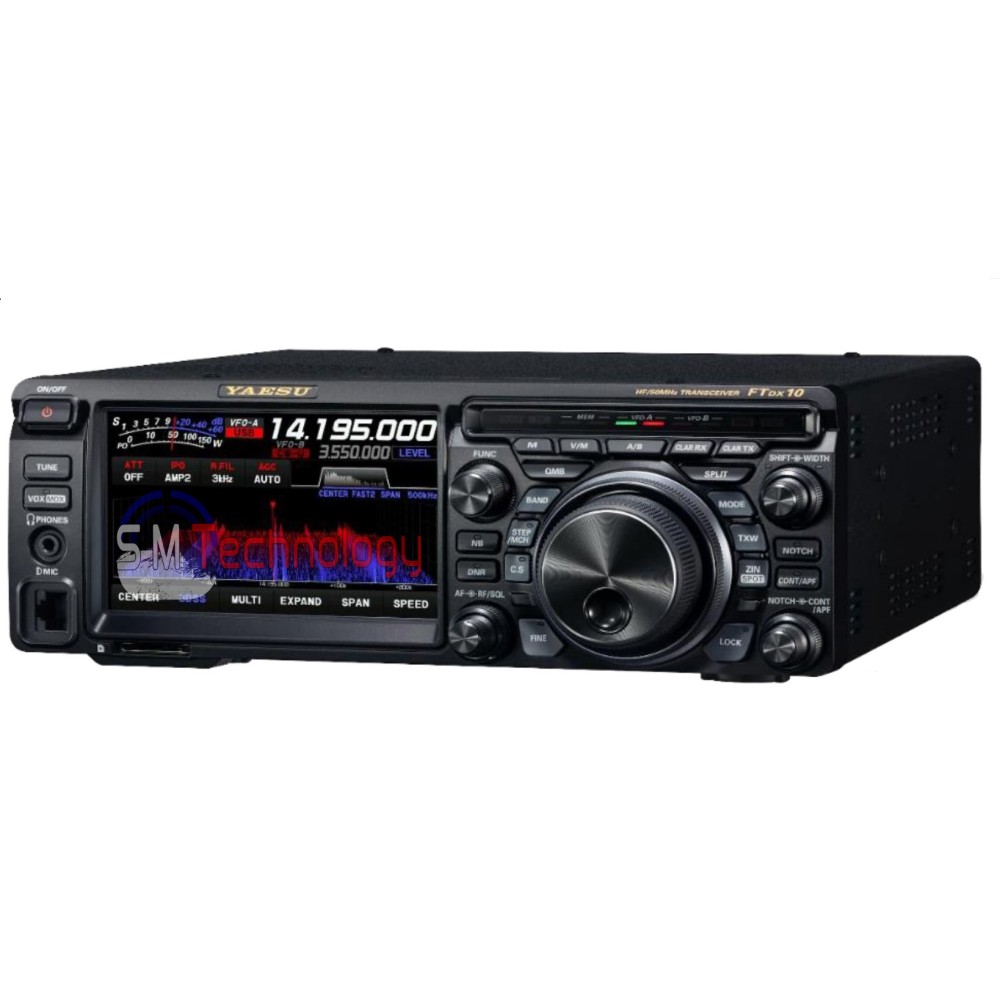

Yaesu FTDX 10 HF/50/70mHz SDR-HIBRIDO 100W

{

Yaesu FT DX 10 HF/50/70MHz SDR-Hybrid transceiver with 5-inch touch-screen display, automatic tuner, 100W

{

As the FTDX 101 series, the new FT DX 10 uses the Yaesu Hybrid SDR - SDR with narrow band and SDR with direct sampling. The SDR SDR receiver SDR underlines the receiver's excellent performance, while the Direct Sampling SDR provides a digital processing in real time of the spectrum. {

- Strait band sdr with 3 types of filters for roofs and phenomenal multisegnal reception characteristics

like the FTDX101 series, the configuration of the Down Conversion type receiver was adopted with the first IF at 9MHz. It makes the incorporation of excellent narrow band crystal roof filters that have the "cliff edge" shape factor, the desired brisk -shaped factor. Thanks to the narrow band SDR with the latest circuit configuration that includes roof filters at 500Hz, 3khz and 12khz and low noise oscillator, the RMDR (mutual mixing Dynamic Range) reaches 116db or more, the BDR (Blocking Dynamic Range) Close-In reaches 141db or more, and the 3rd IMDR (Thioderder Intermodulation Dynamic Range) reaches 109db or more, in the 14Mhz band at 2khz of separation. {

{

- 250mHz Hrdds (High Resolution Direct Digital Synthesizer) offers a silent and clear reception

{

The local circuit of the new FTDX10 uses the 250mHz HRDDD method such as the FTDX101 series. Thanks to its characteristics that improve the c/n ratio (carrier/noise) and the careful selection of the components in the project, the characteristic phase noise of the local signal reaches an excellent value of -145db or not in 14mHz at 2khz of separation. {

{

-3DSS (3-Dimensional Spectrum Stream) on the 5-inch color TFT display with touch-panel functionality

The 5-inch Full-Color panel shows the 3DSS display. By touching the frequency display, the numerical keypad is displayed, and the active band regulation and frequency can be set by direct entrance. The setting and adjustment of the frequency can also be performed by rotating the Main dial or touching the telescope display. Similar to the FTDX101 series, the Multi display are available, the display of the RX operating status, the Modes Center, Fix and Cursor. {

- Frontal panel designed for extraordinary operational efficiency

MPVD (Multi-Purpose VFO Outer Dial), is a multipurpose knob located outside the VFO that allows control of the clarifier, c/s (personalized selection function) and the call of memory channels.

- Remote operating with optional LAN unit (Sca-lan10)

The remote operation of the transceiver is possible with the remote control software of the optional scoring network. In addition to checking the basic transactions of the transceiver, the various variants of display display of the oscilloscope display allow sophisticated operations such as the monitoring of the band conditions on a large display even remotely through the connection to a domestic LAN network.

The characteristics of the new FTDX10 also include:

- 15 separate passband filters - An effective reduction of QRM through the functionality of IF DSP (If Shift/Width, If Notch Dnf, DNR, COUTOUR) - High quality final stage and stability that uses the new Push -Pulls Transistors Pull Mosfet RD70Hup2 - 80mm aluminum dysparer with very low noise fans - Automatic high -speed antenna tuner with 100 memory channels - RF & AMP monitor; AF Transmit - Three -stadium parametric equilibrher (SSB/ AM) - QMB (Quick Memory Bank) - Stack Stack - Optional Alternal - SP -30 - 30 -designed SPTDX10 FTDX10 - OPTIONAL ROOFING FILTER (300HZ) - XF -130CN AVVERCIAL AMPLESTER -

characteristics of the transceiver:

- HF/50MHz 100W Remotemerist - Hybrid SDR configuration, combining an SDR receiver with a narrow band, and a direct sampling SDR - The narrow band receiver allows you to achieve phenomenal reception performances (2khz RMDR 116DB+, 2khz BDR 141db+, 2khz 3rd IMDR 109db+) - IF A) 9MHZ Down Convention, capable of producing an excellent Shapo Faretor Facture - 250 MHz Hrddds (High resolution Direct Digital Synthesizer ultra low -known system with local oscillator - 15 Fix band filters (BTF (BPF (Bm (af dsp (IF (IF ift/devth, devth, IF, IF, FF, FF, IF, IF, IF, IF, IF, IF, IF, IF, IF, IF, IF, IF, Notch/Dnf, Contour, Dnr, APF) - Final stage of the highest quality and stability that uses the new Push -Pull Mosfet RD70Hup2 transistors - 5 -inch color touchscreen display with 3DSS (3 -Dimensional Spectrum Stream) - MPVD (Multi -Purpose VFO Outer Dial) allows an immediate and intuitive operation - Quick Memorly Bank (QMB) - CW Operations with multiple functions such as: CW Zero -In, CW Auto -in, CW Reverse, CW decoding, CW Keying Signal Form Shaping by FPGA and Others - RTTY (FSK)/ PSK coding/ decoding function - Other practical functions such as the selection of the RF Gain, iPo, AGC and Quick Split Function - space for SD Card - possibility of Operate the FTDX10 remotely using the optional Lan-UNIT (SCO-LAN10) unit

{

accessories supplied

{

SSM-75E microphone, power cable with spare fuses, 3-pole 6.3mm connector, user manual

{

specifications

{

frequency range:

{

RX 30khz - 75MHz (Operating Range) 1.8MHz - 29.699999MHz (specific performance valid only for the radioamatory ranges) * * 5.1675/5.332/5.348/5.3585/5.373/5.405MHz (only US), 5.351500-5.366500mHz (EU)/ 5.25000-5.406500 (UK only) 50MHz - 53.99999mHz (specified performance valid only for radioamatory bands) 70MHz - 70.49999mHz (specific performance valid only for UK market)

{

TX 1.8 - 54MHz (only radio -amaizing ranges)

{

type of modulation: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM), F1B (RTTY), G1B (PSK) Frequency stability: ± 0.5ppm (32 ° f to +122 ° f/0 ℃ to +50 ℃, after 1min) Voltage power supply: DC 13.8V ± 15% ± 15% Type of circuit: Double -Conversion SuperHero -terne Intermediate frequencies 1st If 9.005MHz, 2nd If 24khz RF TX Power: 5W -100W (CW, LSB, USB, FM, RTTY, PKT), 5W -25W (AM) Dimensions (L X A X P): 10.47 x 3.58 x 10.35 (Inch) / 266 x 91 91 x 263 (mm) *protruding parts not included weight (landing.): 13lbs/ 5.9kg

{

manual in Italian Yaesu Ftdx 10 here
