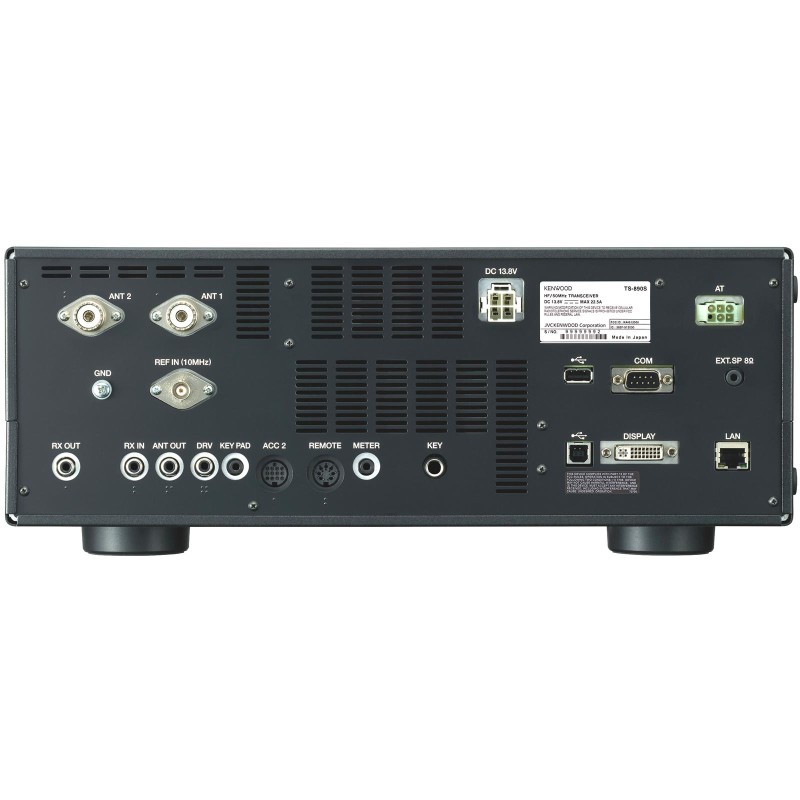

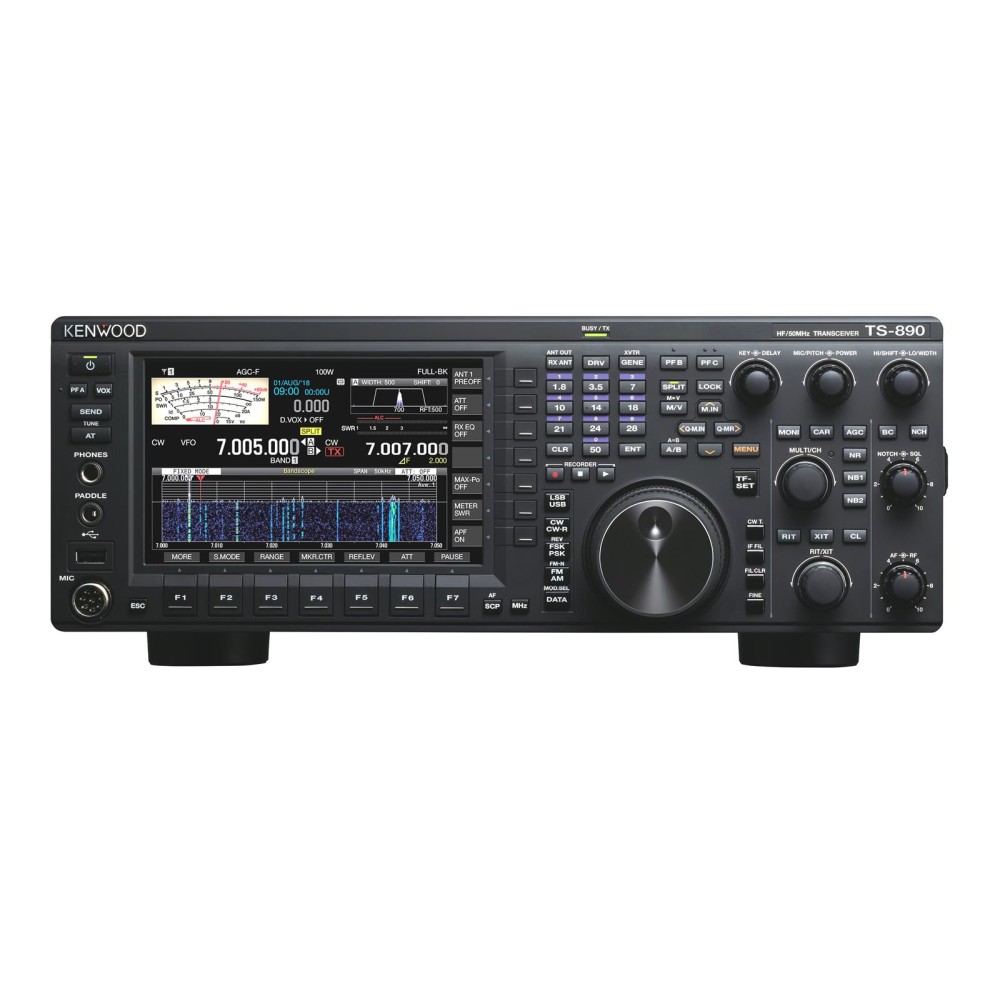

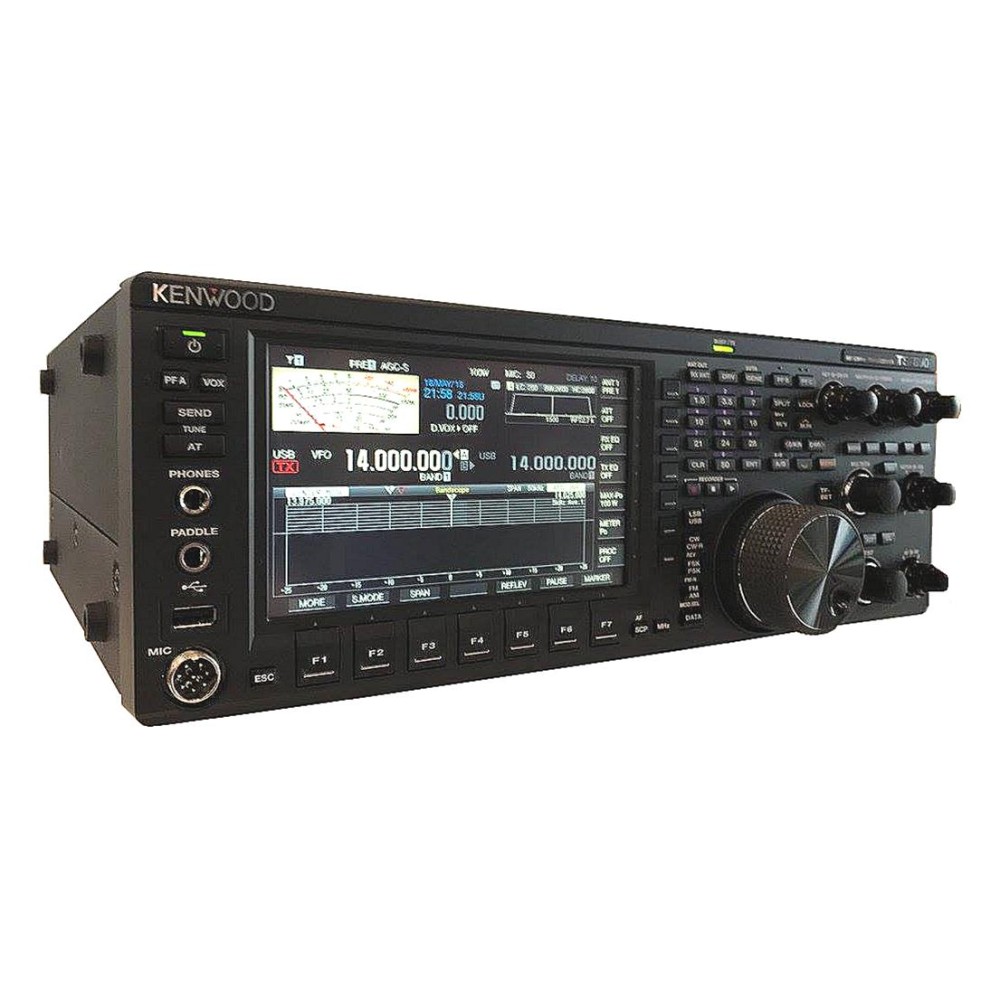

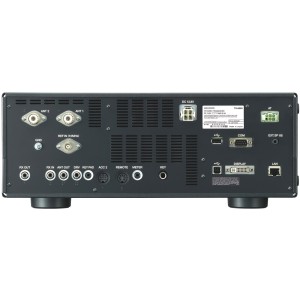

Kenwood TS 890S HF, 50MHz and 70MHz Remoteterminist the new Kenwood masterpiece A HF / 50MHz / 70MHz. {
Equipped with a complete conversion receiver, roofing filters for option 500Hz / 2.7khz / 6khz / 15khz and 270Hz. {
A 7 -inch color TFT display with a complete band radius. {
{
100 W output power on HF / 50 MHz, 50 W on 70 MHz ( Only version for Europe ). {
{
110db * 3rd Dynamic Inter -Moduulation interval (3rd iMDR) measured in punitive 2khz spacing conditions. 114DB * Dynamic interval of mutual mixing (RMDR). 150db * Dynamic range block (BDR) All functions offer first -rate reception performance. High -performance DSP shows its ability when controlling interference signals, adjustment of sound quality and digital functioning. {
(*: 2 kHz spacing measurement standards - RECEPTER TAKING 14.2 MHz, Mode CW, BW 500 Hz, pre AMP OFF)
{
{ Tcxo as standard, high frequency stability at ± 0.1 ppm {{{{{{{{{{{{{{{{{{{ # {
{
Characteristics of the TCXO temperature drift
- The values are measured examples.
{
equipped with a TCXO (plywood oscillator in temperature) which does not require standard heating, a high stability of ± 0.1 ppm has been obtained in a large temperature range that covers from 0 ° C to + 50 ° C. It is also possible to entry the outdoor signal. (10 MHz).
A variety of functions allows you to quickly perform split operations with a single receiver. Quick Split frequency settings, switching of the State Band divided via a direct band and support button for external TF watch via an external receiver. A layout of the panel that allows intuitive management facilitates operation.
-Split frequency settings
In addition to the conventional methods of setting the split frequency, the proven split setting functions of TS-990s have been included. For 2khz up, press "2" on the numeric keypad after a long pressure of the split key and the settings are complete. Divided frequencies can be set within a range of ± 9khz (1khz steps).
Connecting another TS-890S or TS-590s / SG * 1 unit to the Ant OUT connector to be used as a sub-Ricavitore * 2 and using the Split A transfer function, this can enable assistance in the simultaneous reception to 2 waves during the Split operation. 3.
* 2: A loss of about 3DB (theoretical value)
* 3 is detected: frequency transfer, standby mode and secondary audio silence are possible. Requires separate antenna cable and cross-32c cross cable. Not compatible with the combined use sp / headphones.
The unit is compatible with the coding / coding of the CW Morse code. The transmission of the Morse Code is possible with the entry of text from a USB keyboard. The combined use of models sent by memories of messages and transmissions of the terminal code via panel is also possible. The switching of the dedicated decoding filter and the functions for transmission registers and exit of the decoded text on PC are also included.
- RTTY base operating settings (insertion polarity, movement width, hi/lo tones, inverse mode) - compatible with PSK31 (Qpsk, BPSK) and PSK63 and PSK63 (BPSK) - RTTY/PSK operation via integrated decoding/coding (compatible USB keyboard) - Memory Memory function - View adjustment spectrum (FFT audio, Cascata / Scope XY (FSK) / Vector Area (PSK)
{
When using the KNS (Kenwood Network Command System), the remote operation of the radio is possible through a direct LAN connection. Conventional connection is also possible using a host and arhp PC (Amateur Radio Host Program).
{
{ ts-890s is equipped with an internal memory of 1 GB and can record a maximum of about 9 hours of audio without using the USB memory *. When using USB memory, depending on the capacity, there are no limits on the amount of audio recording. The registration options include normal, constant and timer, and the registration can also be connected to the Squelch.
*: Other files that share the memory capacity can be in less than 9 hours. {
