ICOM IC-7610 Base transceiver HF and 50 MHz SDR

ICOM IC-7610 Base transceiver HF and 50 MHz SDR-0

ICOM IC-7610 Base transceiver HF and 50 MHz SDR

Name: ICOM IC-7610 Base transceiver HF and 50 MHz SDR
Brand: ICOM
SKU: IC-7610
Price: 3362.73 EUR
Availability: InStock

Ampliamento banda da LABORATORIO

Reference IC-7610

In Stock

€3,362.73

Order processing times and shipping times:

Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.

Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.

Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.

When will it arrive?

Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.

Deliveries are made Monday through Friday.

Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.

Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.

Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.

{

The ICOM IC 7610 uses a direct scan converter as any advanced SDR (software Defined Radio) software to convert the RF signal into digital signals directly behind the antenna. All subsequent elaborations then take place with the use of special digital components (FPGA, Field Programmable Gate Array). The result is an extraordinarily high blocking dynamic range, which in the case of the IC-7610 is about 110db (2 kHz distance of the signal). These good features of the receiver are also supported by a precise oscillator with an extremely low phase noise. {

{
The ICOM IC-7610 offers two independent receivers who can also receive different bands and ways. Each receiver has its own checks for the volume and the RF gain. This makes it easy to observe and work a fleece in split mode by observing both the right station and the calls on different receivers, possibly also with different filter widths. The easy to use transceiver because the necessary functions are arranged compactly and easily accessible. {

{

{

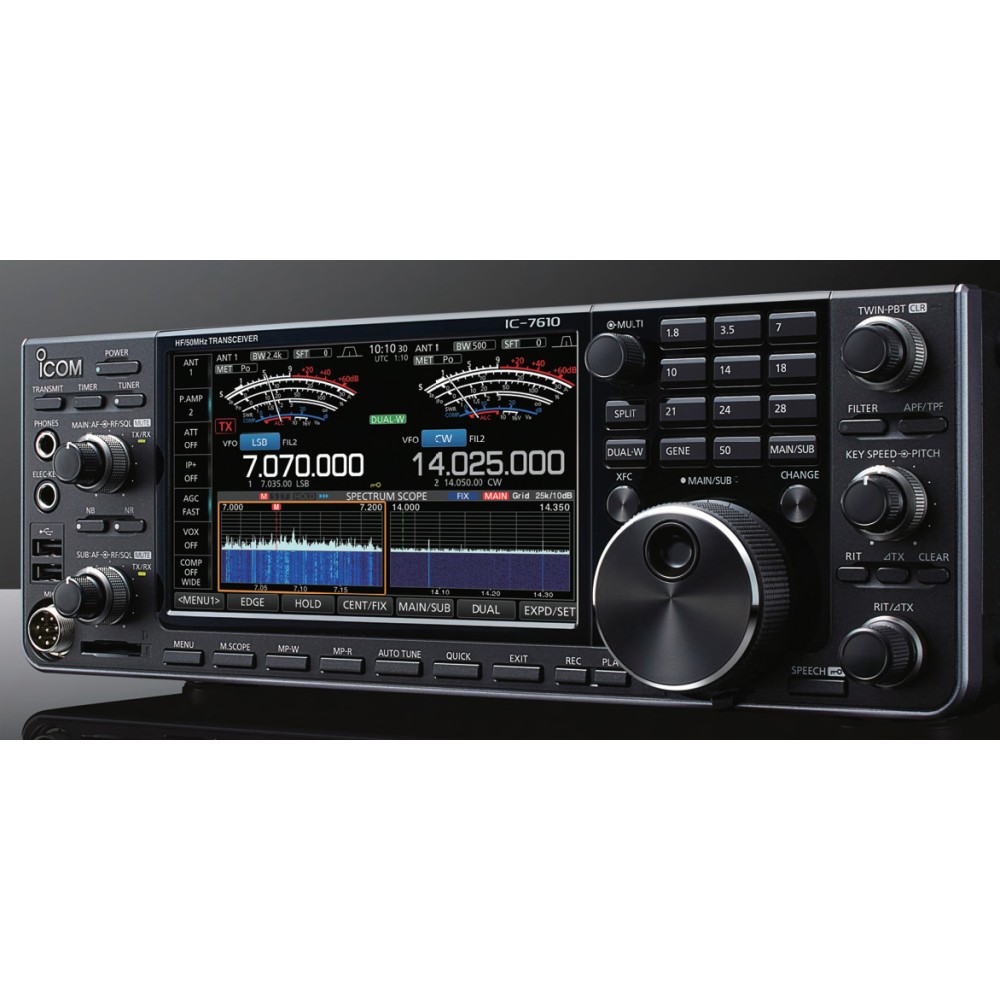

Both receivers are equipped with the so-called 'Digi-Sel' filters. These filters work as a pre -selected in operation and have steep edges than the fixed bandwidth filters. This type of filtering protects even better the overloading converter of unwanted signals outside the band range. The display is a touch display like its small and successful brother IC-7300, only slightly larger, 7 instead of 4.3 inches. Many functions are managed through this touch display. A quick cascade display in real time shows the reception field for each receiver separately. The width of the spectrum can be adjusted between ± 2.5 and ± 500 kHz. In this way you always have the activity of the band in sight, it doesn't matter if you are waiting for a right station or if you want to check in a competition if the band is already open. { {
{003 003} characteristics IC-7610:
{{} all the short wave bands + 6m
integrated antenna tuner
100W transmission power sd memory card for setting and recording operating methods: am, fm, ssb, cw, rtty, rtty, Psk31 101 memory 2 antenna sockets, commutable
antenna exit rx

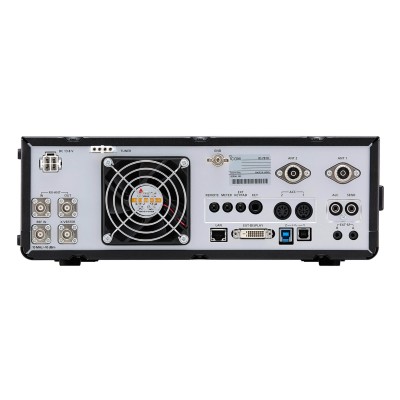

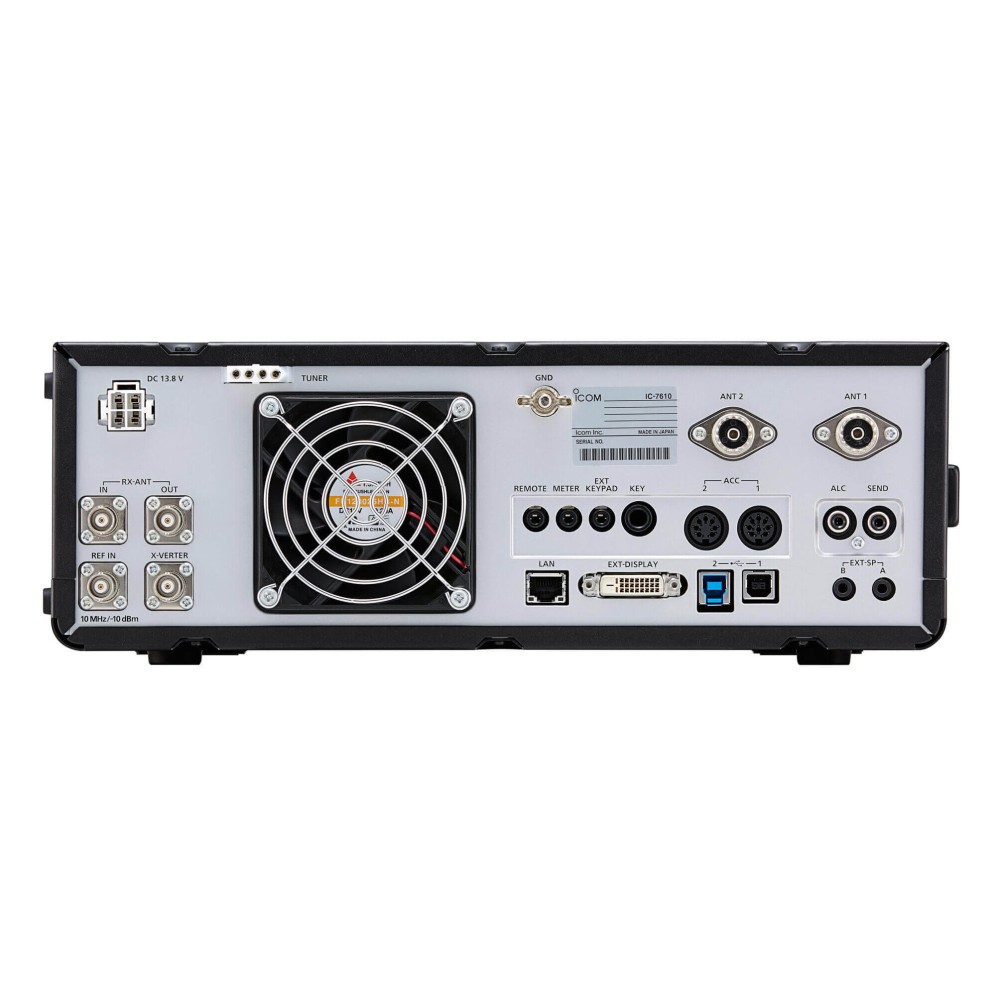

dvi-d socket for the connection of an external monitor Ethernet socket for remote control USB 3.0 socket for the fast transfer of data (data data (data data transfer (data transfer (data I/q) USB 2.0 socket for data cat remote connection icom ci-v
output for analogical s-meter Tension
connection for external keyboard (CW, RTTY, Keyer) entrance for the clock at 10 MHz predisposed for "> The transversal operation ic-7610 equipment: hm-219 PDAR microphone manual > cables cc spare fuses div. small parts
fixme /p>
