Yaesu Ftx-1 Optima 100W Quadrubanda transceiver
{
technical characteristics
{
Supported band { 160m, 80m, 40m, 30m, 20m, 17m, 15m, 12m, 10m, 6m, 2m, 70cm
{
Potenza [W] { 0.5 - 6 W (drums), 0.5 - 10 W (EXT. 13.8 V), 100 W at the base station
{
Max. Current Intake (a) 2.5 / 21
{
4 m band: able to transmit yes, after the modification
{
Band 6 m: able to transmit yes, as delivered
{
brand Yaesu
{
Modes USB, LSB, CW, AM, FM, C4FM, date
{
Weight 1,25 or 3.9 kg
{
connection of the antenna 3 x PL (1 x vhf/uhf, 2 x hf/6m)
{
bluetooth interface yes, optional.
{
size W x h x d 213 x 89 x 240 mm
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{

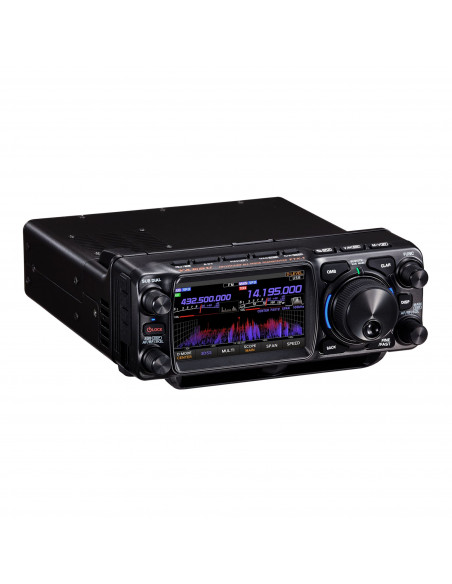

Yaesu Ftx-1 Optima 100W Quadrubanda transceiver
{
Yaesu presents the long-awaited successor of an icon: direct heir of the legendary FT-817/818, the FTX-1 combines portability and advanced SDR technology-perfect for radio amateurs who want the maximum both in portable and in a fixed station. {
{
{
Both models, { ftx-1 field and ftx-1 optima , cover the entire radio amateur spectrum from 160m to 70cm , including the bands hf, 6m, 2m and 70cm and 70cm . They support all analogous ways (fm, ssb, cw, am) and digital way c4fm . The true double band receiver also allows the simultaneous reception of two C4FM signals, with automatic switching via AMS . {
{
{
The color touchscreen display from 4.3 " offers a three -dimensional representation in real time of the spectrum thanks to the 3D Spectrum Stream (3DSS) . The user can choose between three viewing modes: double horizontal, vertical or single band. {
{
On a technical level, the transceiver integrates an Frontend RF with 10 BPF filters , double DSP, main independent and secondary receivers and an high purity oscillator from 110.592mhz , which guarantees a high quality of sampling and an excellent signal/noise ratio. {
{
The main differences between the models are found in the power and integrated equipment:
- {
- {
The Field version offers 6W with battery or 10W with external power supply , perfect for portable use.
{ - {
The Optima version integrates a 100w amplifier , a automatic tuner and a incorporated speaker , ideal for fixed station or high -performance activities on the field.
{ {
thanks to the accessories dedicated to the FTX-1 series, the system can be expanded according to personal needs. Automatic tuner are available, active cooling modules, Bluetooth connection, GPS antenna for APRS or satellite use, protective frames for external use and accessories for power and audio in any context.
Additional functions and characteristics:
- {
- {
qmb (Quick Memory Bank) to quickly save frequency and current settings
{ - {
Mag (Memory Auto Grouping) To automatically organize band channels
{ - {
PMG (Primary Memory Group) to monitor the favorite channels (e.g. club frequencies)
{ - {
Preset mode optimized for use FT8
{ - {
QRP mode with power less than 5W
{ - {
Slot microSD for log, memory and backup
{ - {
Wires-X (from August 2025)
{ - {
Support for communications aprs
{ - {
USB interface for cat control and digital modes
{
