OM 6BPF Low pass filter

Name: OM 6BPF Low pass filter
Brand: SMT Europe
SKU: OM 6BPF
Price: 682.02 EUR
Availability: OutOfStock

€682.02

{

The band Pass Filter OM6BPF is designed for all short wave amateur bands from 1.8 to 29 MHz (Exclusive Warc-Bands) for 200 W Power. {

{

Specification:

{
Frequency Coverage: Amateur Bands 1.8 - 29.7 MHz Exclusive Warc {
Design: 3 Resonent Filters {
Power Rating: 200 W in SSB, CW, RTTY, AM and FM {
input prevent: 50 ohm {
SWR: less then 1.2: 1 across band {
Output impedance: 50 ohm unbalanced {
Insertion Loss: Very Low insertions loss two to high - q capitors, hand tuned for maximum performance {
Control Methods: Automatic With Yaesu, Icom, Elect, Om Power Automatic Amplifiers, BanddecoDer for Example Microham Devices {
Power Supply: External Bethaeen +12 V to 15 V {
LED Indicators: Automatic Mode {
Band indications {
Bypass mode {
parameters: 210 x 75 x 320 mm (Width x Height X Depth) {
Weight: 2.3 kg

{

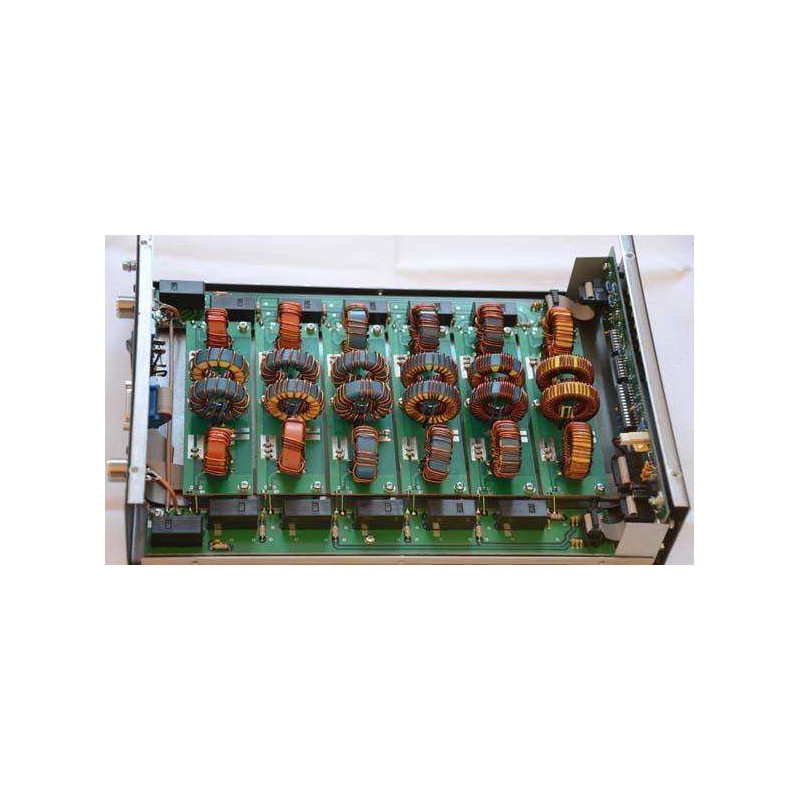

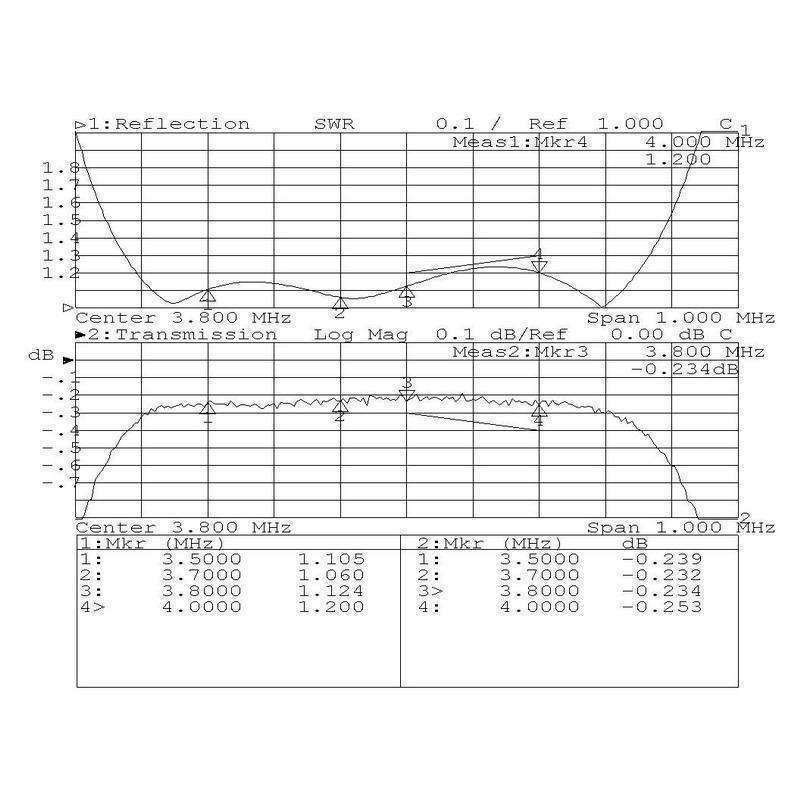

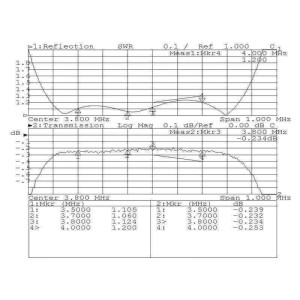

Measured Typical Band to Band Rejection
MHz	Max. Loss (DB)	Max. SwR	Crossband Minimum Loss (DB)
1.8	0.25	1.1	3.5 MHz 2 td>	7 MHz	14 MHz	21mHz	28MHz
2.0	0.25	1.1	47	70	60	53	70
3.5	0.25	1.1	1.85 MHz	7 MHz	14 MHz	21mHz	28MHz
3.8	0.25	1.1	42	46	60	55	50
7.0	0.3	1.15	1.85 MHz	3.5 MHz 2 td>	14.mHz	21mHz	28MHz
7.3	0.3	1.15	66	46	70	55	47
14.0	0.3	1.15	1.85 MHz	3.5 MHz 2 td> {	7 MHz	21 MHz	28 MHz
14.4	0.3	1.15	80	62	41	38	60
21.0	0.4	1.2	1.85 MHz	3.5 MHz	7 MHz	14.mHz	28 MHz
21.5	0.4	1.2	75	75	65	35	58
28.0	0.4	1.2	1.85 MHz	3.5 MHz 2 td>	7 MHz	14.mHz	21 MHz
29.7	0.4	1.2	80	90	70	47	27 {
