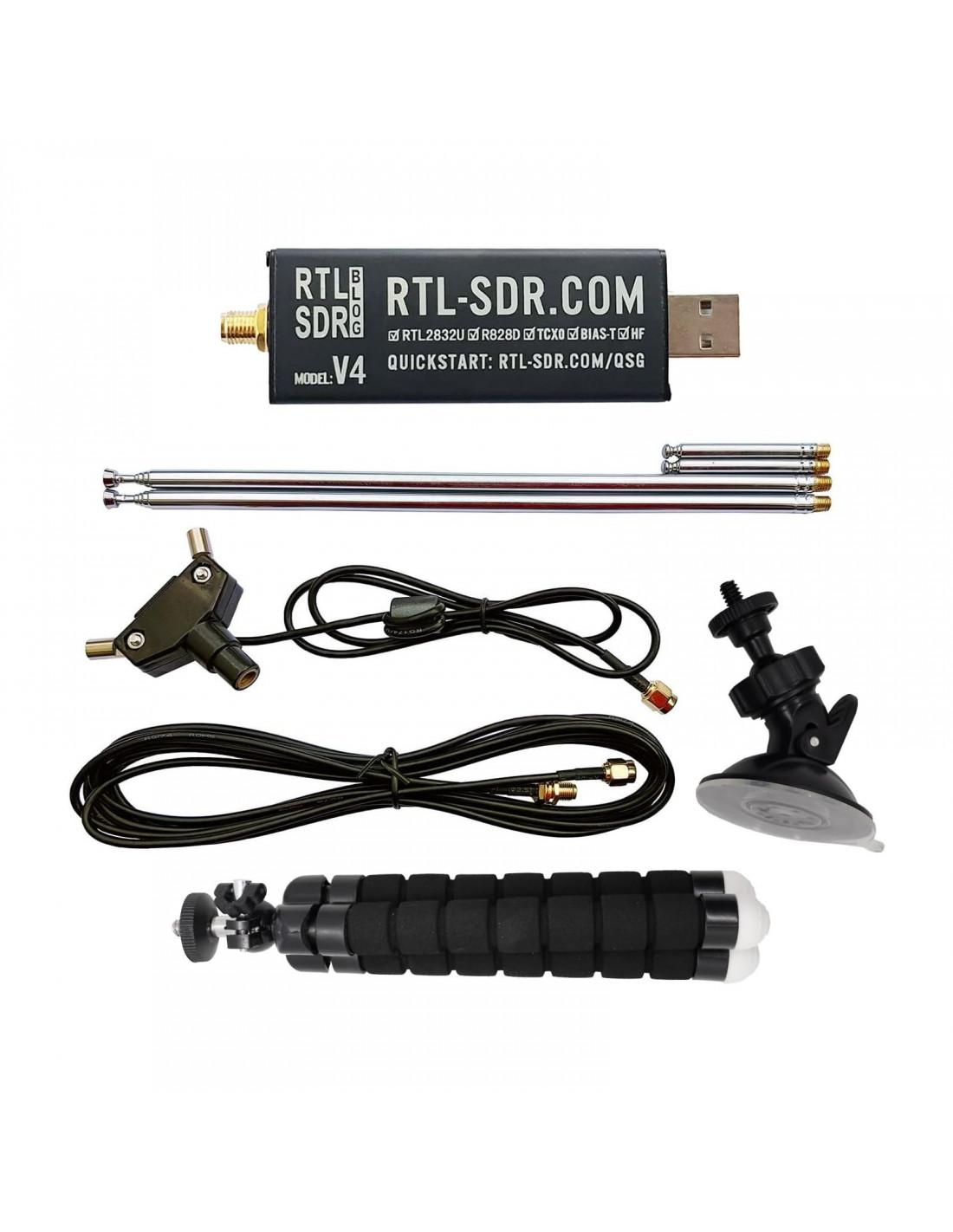

RTL-SDR V4 receiver with antenna kit
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{

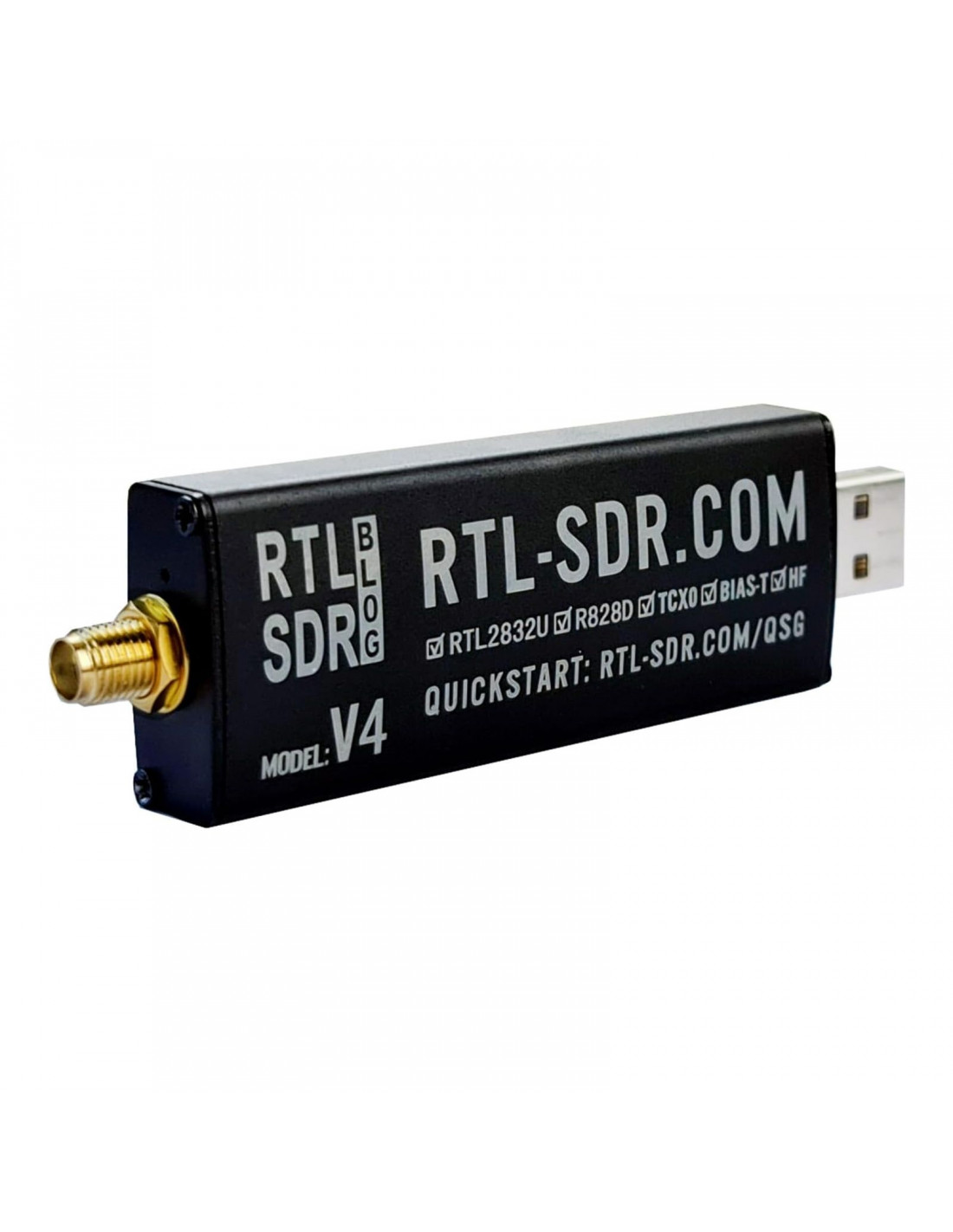

L RTL-SDR BLOG V4 is the new generation of popular SDR receivers USB, designed specifically for the needs of radio amateurs and experimenters. Compared to V3, the V4 version offers improved HF reception technology, optimized filters and more efficient power and heat management.
frequency intervals
{
reception from 500 kHz to 1.766 GHz
-
{
HF (short waves): integrated uponverter up to 28.8 MHz
{ -
{
VHF/UHF: Full range of the Tuner R828d
{
{
{ {
Main improvements compared to the V3
{
-
HF reception via uponverter instead of direct sampling: no aliasing problem, improved sensitivity, adjustable HF gain
-
Frontend with Triplexer : separates HF, VHF and UHF bands for better insulation and minor interference
-
additional notch filters for AM, FM and DAB bands to mitigate strong transmission signals
-
improved phase noise thanks to an optimized diet design
-
less generation of heat and slightly reduced current consumption
technical data
tuner: r828d
adc: rtl2832u, 8 bit
bandwidth: stable up to 2.56 MHz (up to 3.2 MHz with possible losses)
input impedance: 50 Ω
absorption: 250–270 Ma via USB
{Connectors: SMA , USB-A
{Frequency stability: tcxo 1 ppm
{Bias-tee controllable via software (4.5 V, 180 mA)
{robust aluminum houses with thermal dissipation
{{
{
compatibility
{
compatible with the main SDR software such as SDR#, SDR ++, SDR Console V3, GQRX and many others. It works with Windows, Linux, MacOS, Android and single -card computer such as Raspberry Pi. Updated drivers are required. {
{
{
conclusion
{
The RTL-SDR Blog V4 is a compact, versatile and powerful SDR receiver. With the new HF Upconverter, improved filtering and optimized performance in terms of noise, represents a clear step forward compared to the V3 version - ideal for both beginners and expert SDR users. {
