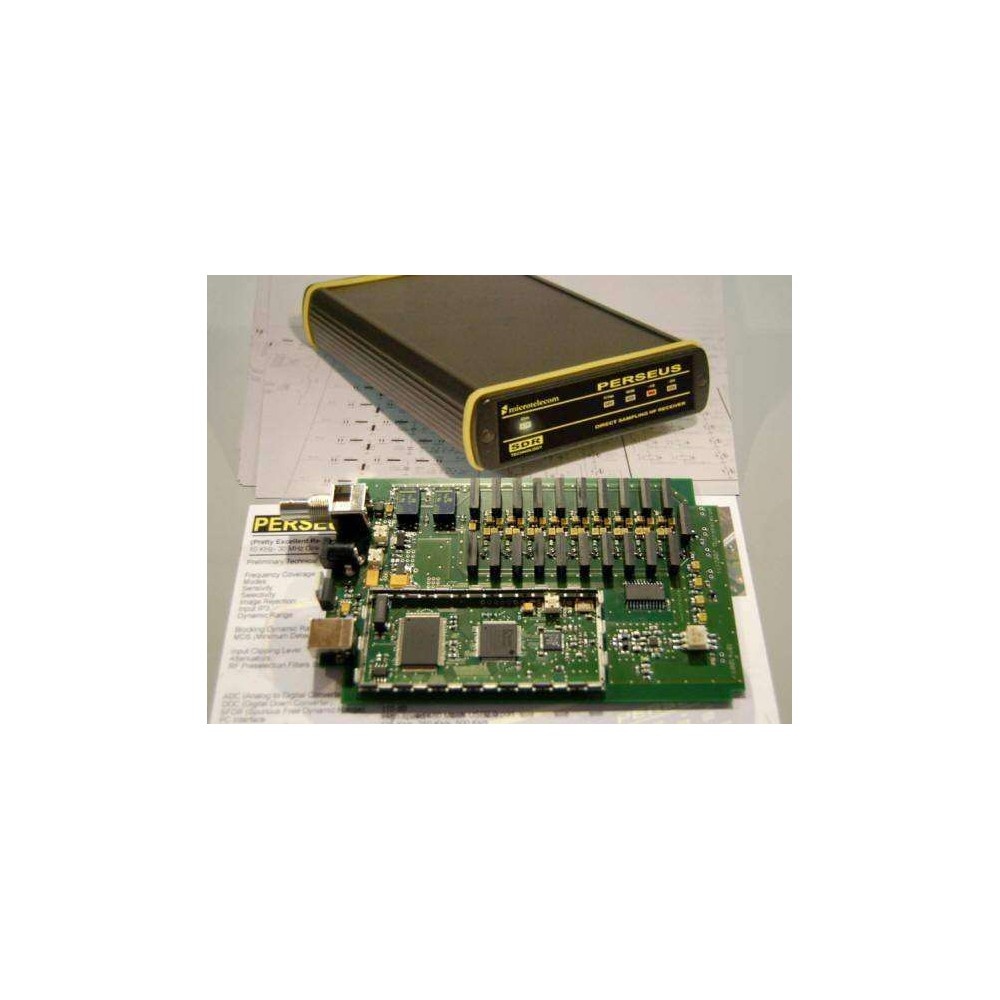

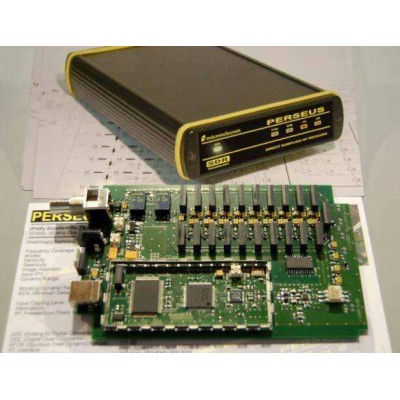

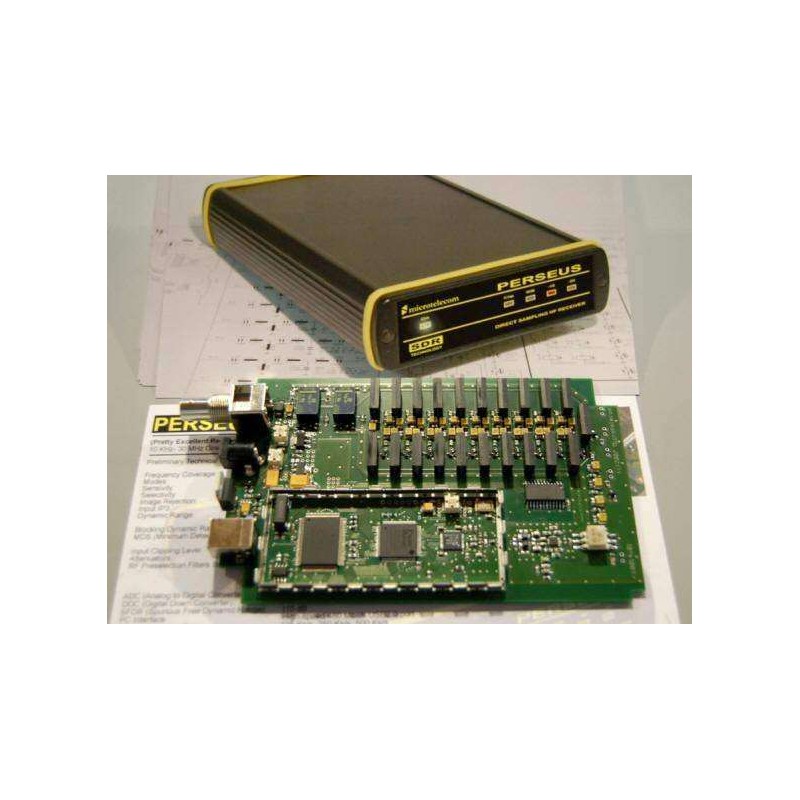

The Perseus is a "software defined" receiver based on direct digital sampling architecture. Use a 14-bit and 80 ms/s sampling analog/digital converter, a high-performance down-converter based on FPGA based and a 480 Mbit/s high-speed USB interface. {
{
A complete SDR receiver for short waves
The analog front -end of the Perseus has been carefully designed for the most demanding users and includes a attenuator -30 dB, with 10 dB steps, a 10 -band pre -selector, and a high -dynamic preamplifier with a interception point of the third order from the class of the class: more than 30 DBM. The resulting dynamic is greater than 100 dB in SSB and greater than 105 dB in CW. Believing us, there is no other SDR receiver so performing on the market. The Perseus receiver can work as a spectrum analyzer with a band of 10 KHz - 40 MHz with more than 100 dB of dynamics. {
software for demanding users
being an SDR receiver, the Perseus carries out the demoding process by relying on software applications. In addition to providing the digital signal treatment features, Perseus software offers a convenient graphic interface and is easy to use under Microsoft Windows 2000, XP, Vista, 7 and 8. All the commands that you are used to using are present in the main application window. The interface with third -party software is provided in various ways, through the "MicroTelecom Software Defined Radio Developer Kit", the virtual audio doors and virtual communication doors. {
The Perseus software now supports the recording and listening to the wide band spectrum, using a 1 MHz sampling and a rejection of the image greater than 100 dB on a band of 800 kHz! {
