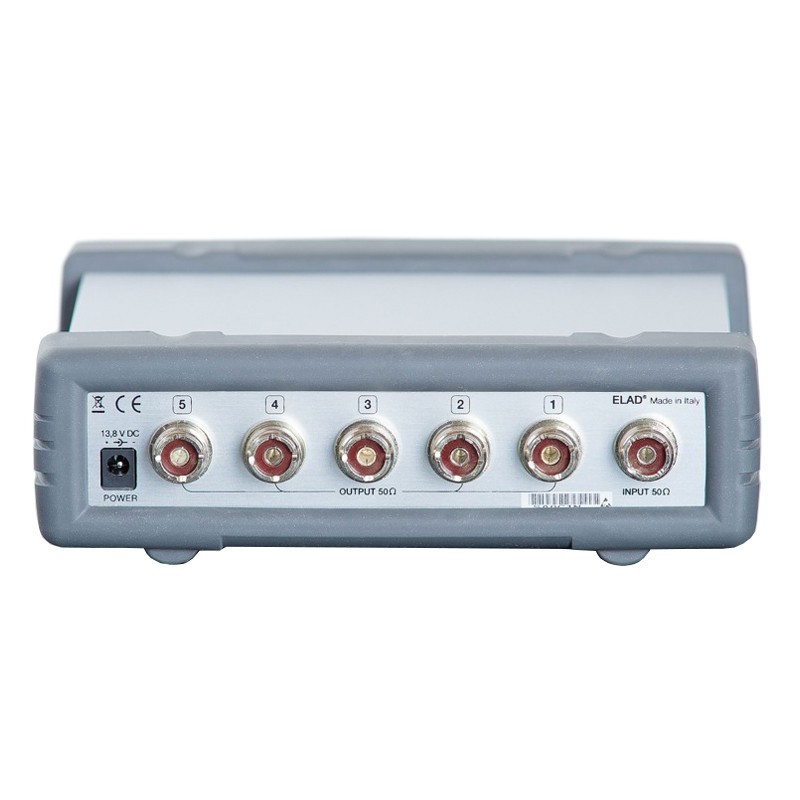

Elad Antenna Splitter ASA-15
- Write a review
€255.56
{
ASA-15: HF Splitter Antenna up to 70 MHz.
The Splitter ASA-15 antenna distributes the signal of an antenna receiving up to five different receivers. Each of these can use an individual amplifier with earnings up to 12 dB. In addition, a 15 dB mitigator is integrated on the entrance to mitigate too strong signals. The internal distributor is made with low noise amplifiers and prevents the diaphony of one exit compared to the others. The selected configuration is shown through the LEDs of the front panel. The power supply (12V/1A) is included. {
{This splitter not is suitable for transmitters. {
{| frequency field | 9 KHz - 70 MHz |
| Food | 11 - 15 VDC, 300mA |
| Connectors | Pl Female |
| profit | 0 db, impedance: 50 Ω |
| container | in robust aluminum, protected from rubber |
| dimensions | 200x200x55mm, weight 1 kg |
| isolation between outputs | about 50 db @ 30 MHz |
| 1 db compression point at 7 mHz | 15 dbm |
| IP3 A 7 MHz | 24 DBM |
ASA-15
Data sheet
- MPN
- 7438641839230
- Sku
- ASA-15
