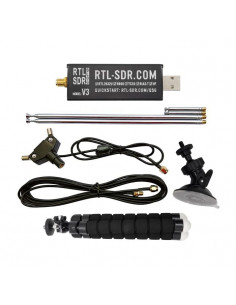

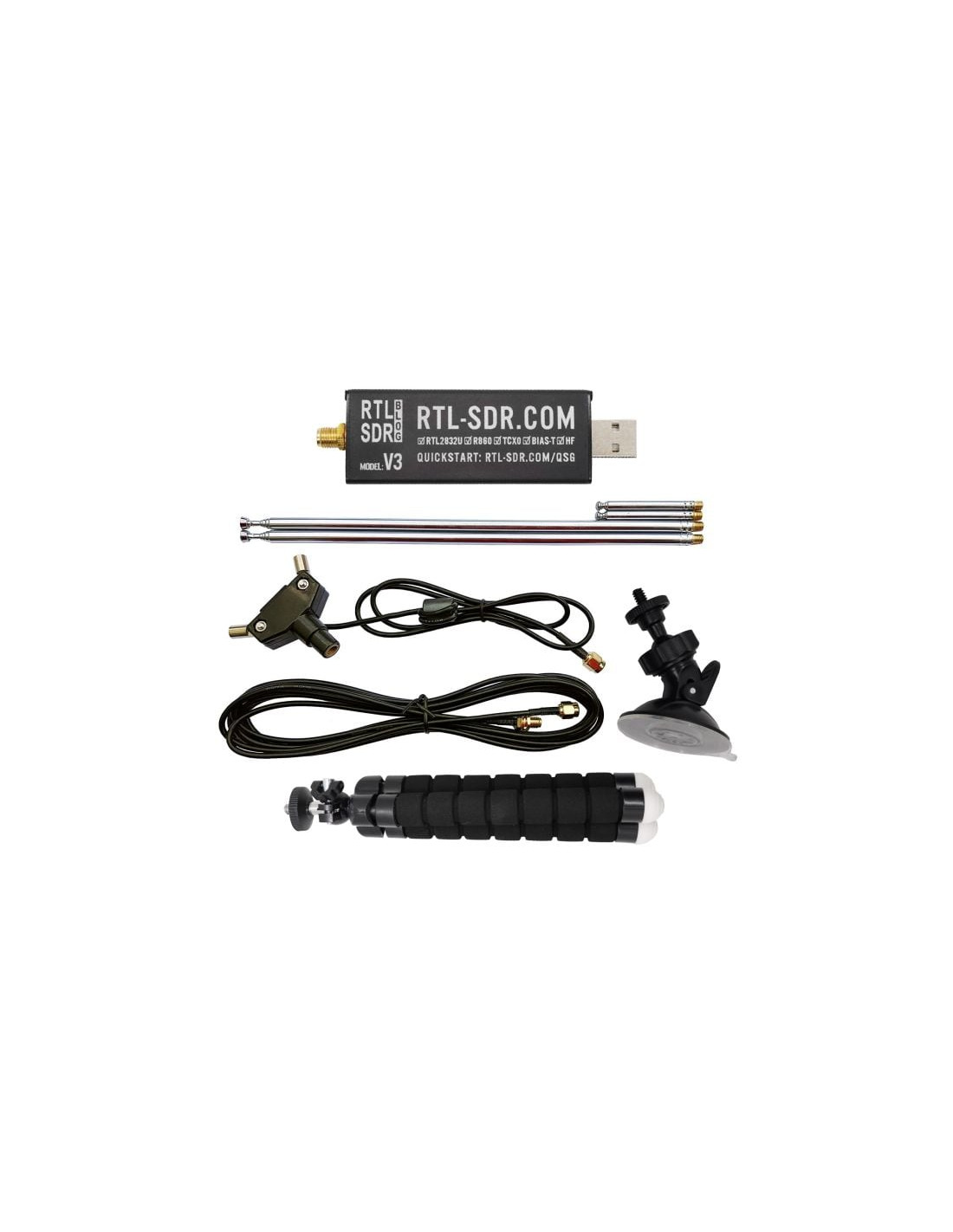

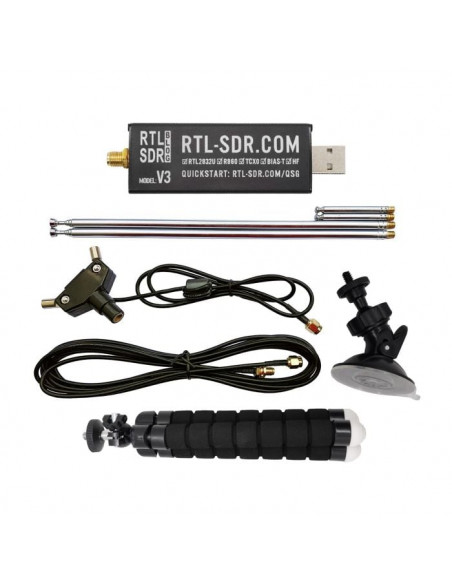

RTL-SDR V3 receiver with antenna kit
{
technical data
{Product Name RTL-SDR V3 Kit
{Operating voltage [V] 5 V (USB)
{brand wimo
{Weight 32 g
{connection of the antenna socket SMA
{Frequency range 0.5 - 1766 MHz
{size W x h x d 23 x 13 x 69 mm
Order processing times and shipping times:
Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.
Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.
Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.
When will it arrive?
Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.
Deliveries are made Monday through Friday.
Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.
Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.
Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.
{

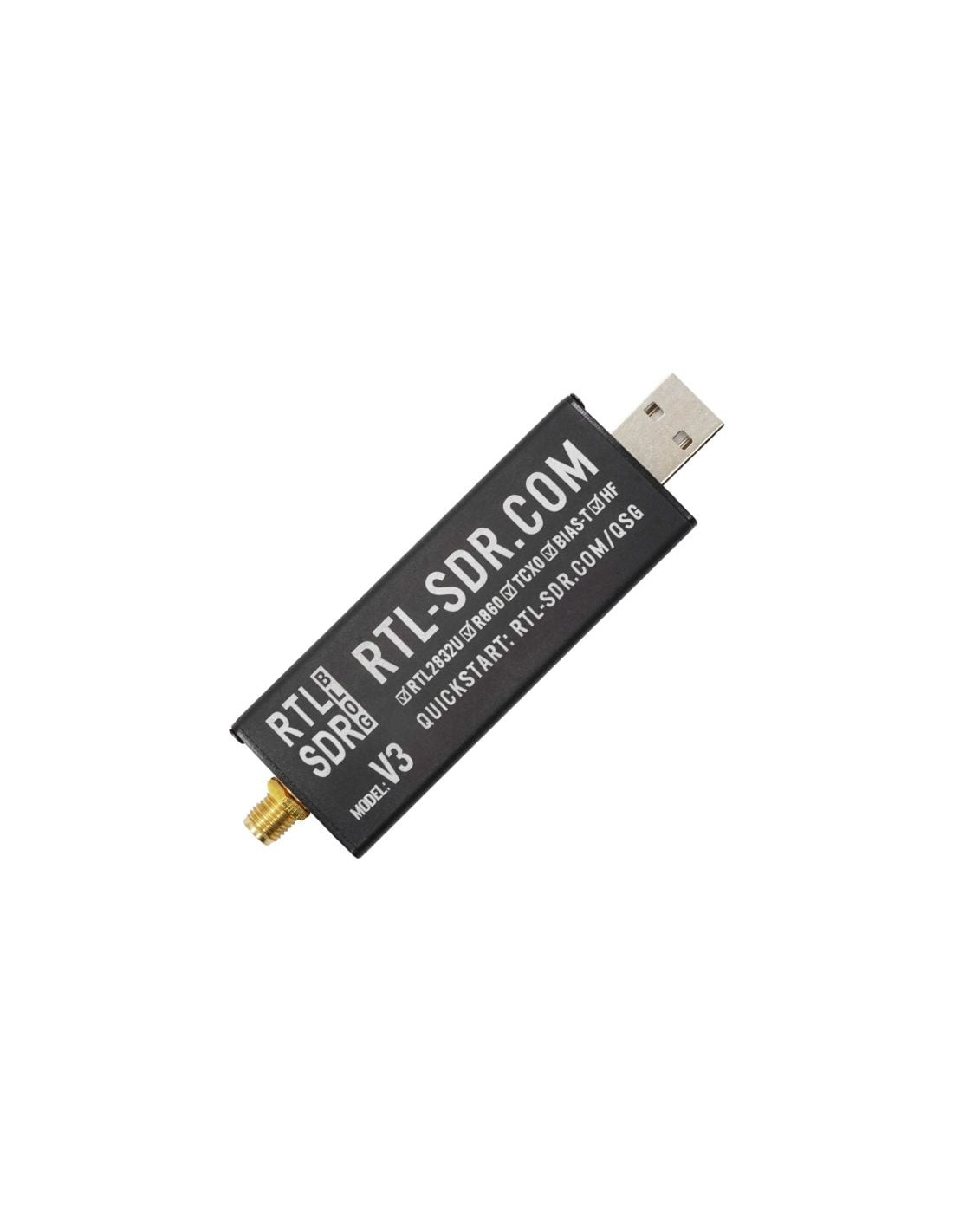

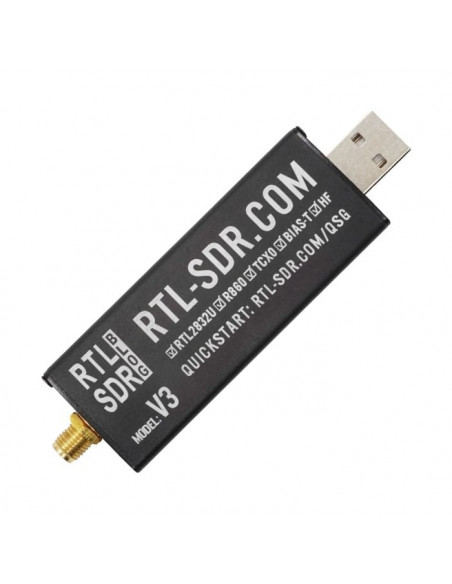

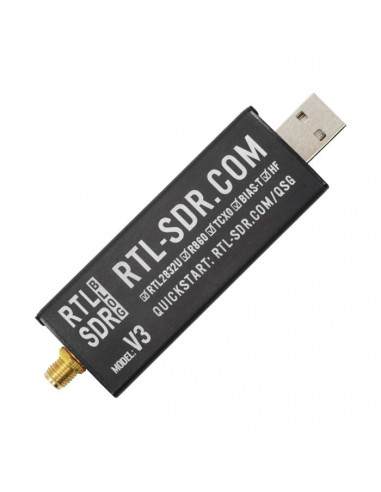

RTL-SDR receiver V3 with Antenna Kit The RTL-SDR BLOG V3 is a radio receiver defined via software (SDR) in USB format, designed for experiments and broadband reception in the VHF/UHF ranges, as well as in short wave through direct sampling. It is not intended for DVB-T reception. {
{{
{
frequency intervals (depending on the operating mode):
{
- {
-
{
Tuner mode (R820T2): ca. { 24 MHz - 1.766 MHz
{ -
{
Direct sampling (HF): ca. { 500 KHz - 24 MHz
{
performance and stability
- {
-
{
sampling bandwidth up to 2.4 MHz
{ -
{
TCXO (~ 1 ppm) for excellent frequency stability
-
aluminum custody for shielding and heat dissipation
-
four -layered PCBs , USB filtering and optimized thermal management
Hardware details
SMA connector (50 Ω) on the RF entrance
ESD protection on the entrance
bias-t commutable via software (ca. 4.5 V , up to 180 mA , with protection) to feed LNA or external active components
direct sampling without external changes for short waves
software and compatibility
on Windows, Linux and MacOS; Also usable with computer with a single card (e.g. Raspberry PI) and Android. The switch between Tuner mode and direct sampling takes place through software.
{
{
Typical applications
{
Analysis of broadband spectrum, listening to the aeronautical band, weather and satellite signals, record/trunk monitoring (where allowed), beacons and radio -amaemorial digital ways, short wave transmissions and more.
{
{
{
note
{
The tuner mode and direct sampling are distinct operating methods; The frequency intervals indicated apply respectively. Filters or external preamplifiers can further improve the quality of reception based on the application.
