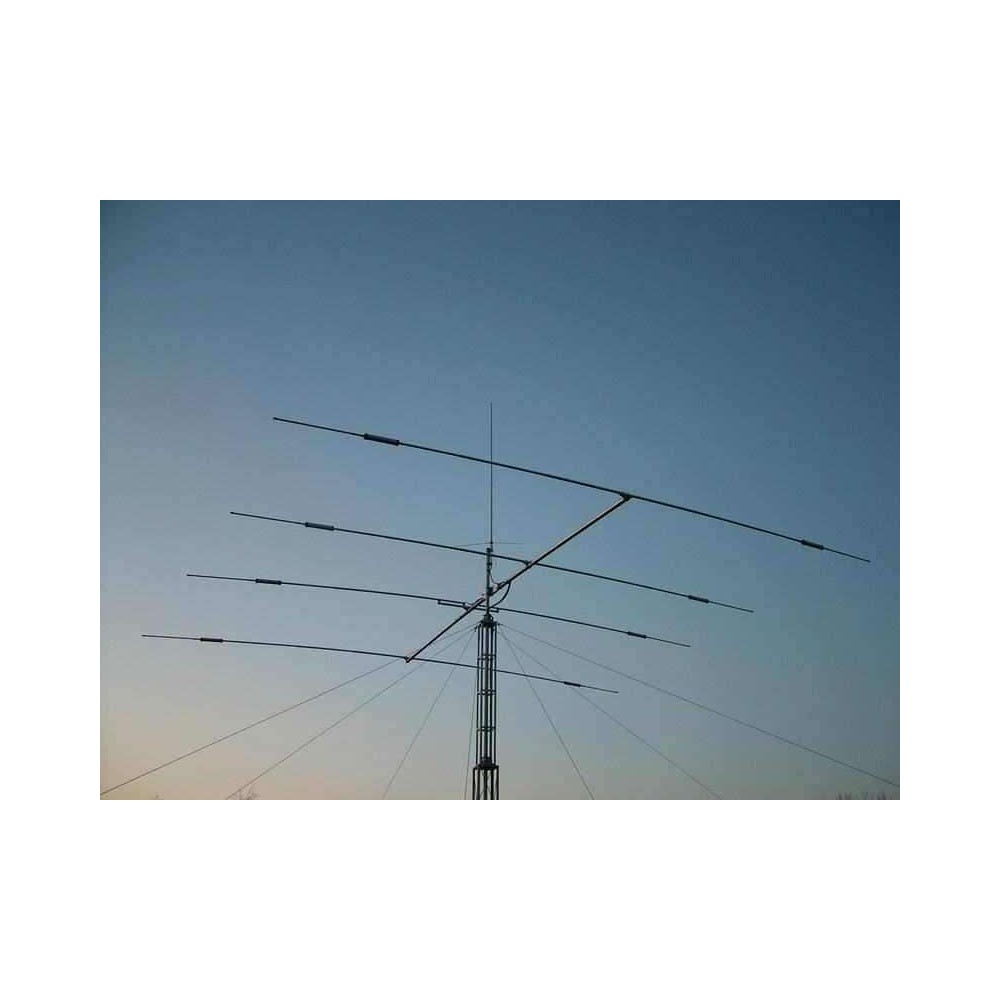

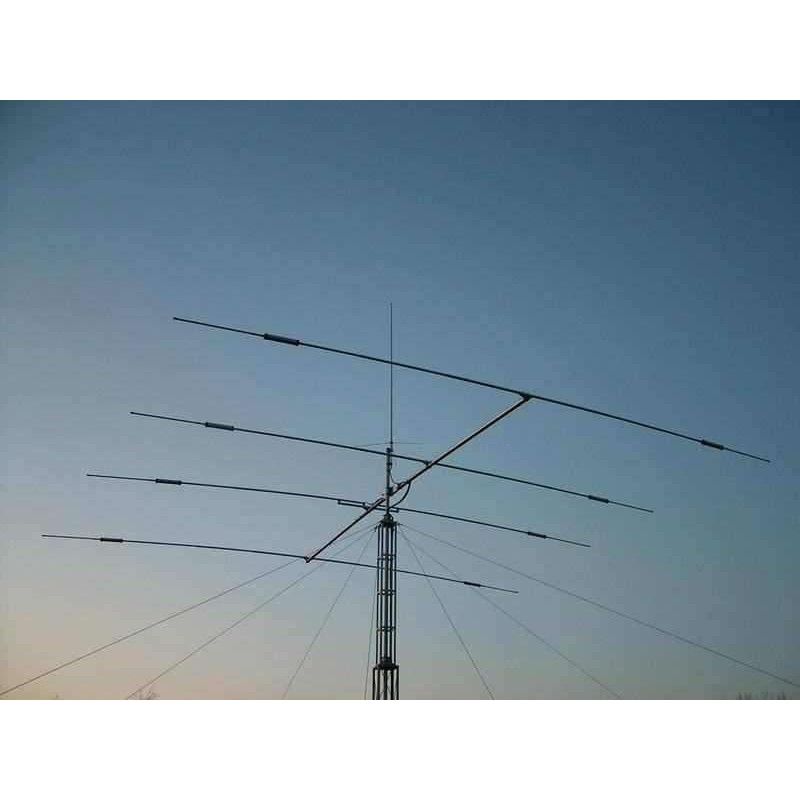

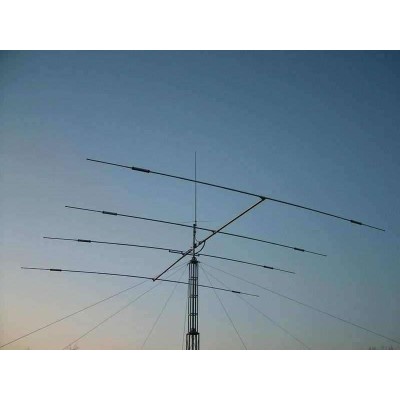

Mosley Ta 34xl Athenna Directive 4 Elements 10 15 20 20 meters

a complete triband 4 elements. There would be a Long Yagi 5 element of beating the TA-34XL on 10 or 15 meters! Made for all users with little space on their roof and who want to operate first on 10, 15 and 20 m. {

{ The TA-34XL is a 4 element for 10, 15 and 20 meters with the power of a monobanda antenna on 10 and 15. 20 meters the "xl" still has a good profit and front / retro ratio. Built with the same solid trap quality quality like other products from Mosley, it provides a good bandwidth and excellent results in all bands. The exclusive Mosley of the traps offer high frequency stability in any atmospheric condition. {

The central parts of the elements are made with double pipes for greater stability and less sag. The boom has 51 millimeters of external diameter and a wall variable thickness between 2.6 and 3.2mm. Included is a huge assembly plate for the assembly of the tree. {

{ maximum power is 2.5kw pep ssb and cw 1.5 kW. With Ta-ta-30kr and 40kr extension kits, the antenna can be extended to 30 and 40 meters. {

Technical Data
Gain	10 METER	9.5 DBD
	15 meter	9.1 DBD
	20 Metter	8.2 DBD
front/back rat	10 Metter	18 db
	15 Meter	18 db
	20 Metter	18 db
max. Power	CW	1.5 kW
	SSB	2.5 kW
SWR		1: 1 to 1.9: 1
Boom Length		6.4 m
Rotating Radius		5.4 m
mast diameter		38 mm
Max. Element Length		8.5 m
Weight (ca.):		30.6 kg
Surface antenna		0.64 m²
Wind Load (at 125 km/h):		725 n
Shipping Weight		32.4 Kg
