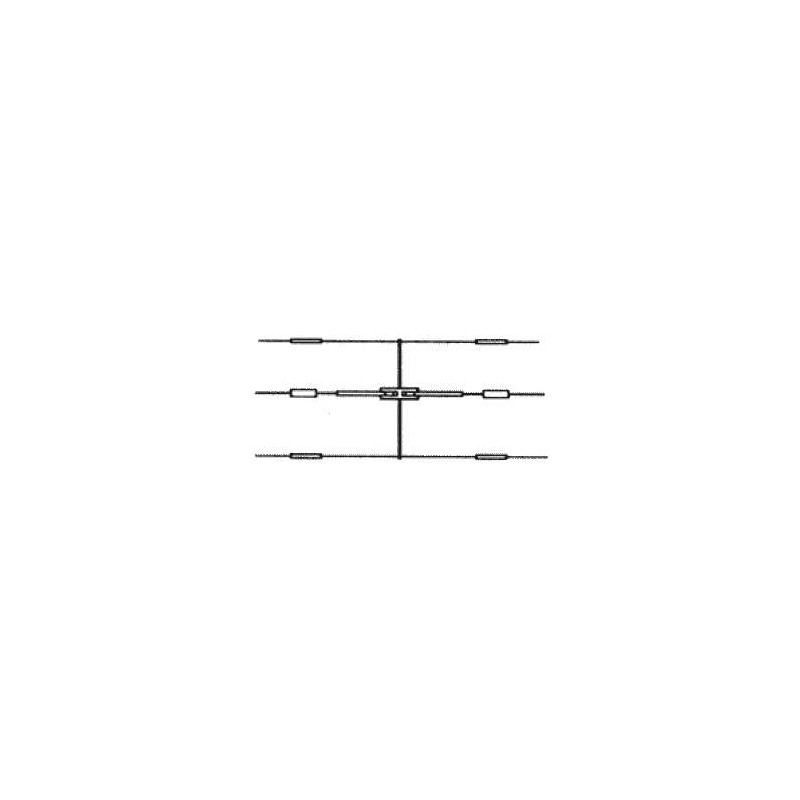

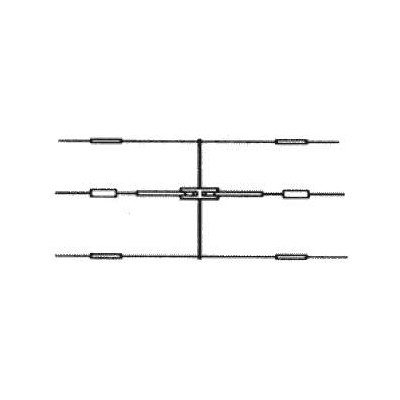

Mosley MP 33N Antenna Directive 3 Elements
- Write a review
€975.23
{
{ antenna directive 3 elements for bands 10-15-20 meters {} { compact and light directive. { {
The MP-33N consists of elements of the Th-33JR for the director and the W reflector of a TA-33M dipole this allows you to work with high powers despite the small form factor, and extends the antenna to 30 or 40m. {
| profit | 10 METER | 8.0 DBD |
| 15 METER | 6.8 DBD | |
| 20 METER | 5.8 DBD | |
| front/back ratio | 10 METER | 20 db |
| 15 METER | 20 db | |
| 20 METER | 20 db | |
| Mass. | CW | 1.1 KW |
| SSB | 2.0 kW | |

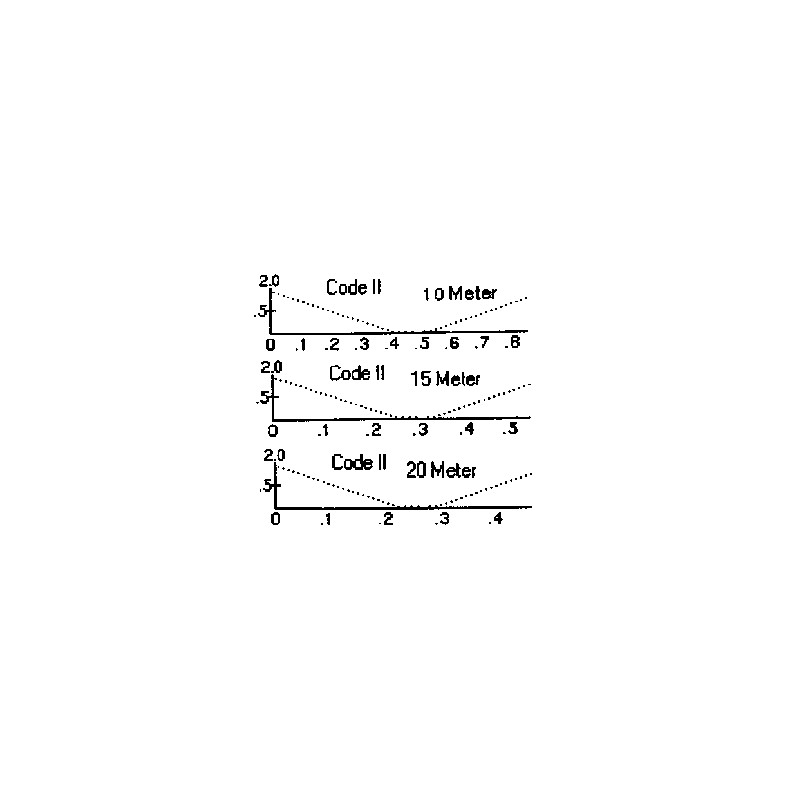

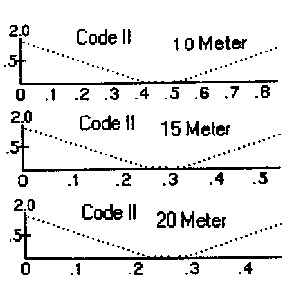

| ROS | 1: 1 bis 1.6: 1 | |
| Boom length | 3.7 m | |
| 4.5 m | ||
| #diameter_mast ## | 38 mm | |
| Length Mass. of elements | 8.1 m | |
| Weight (Ca.) | 9.5 kg | |
| Mass. d'antenna | 0.43 m² | |
| Load Cento (@ 125 km/h) | 380 n | |
| Weight (transport), weight (Transporte) | 13.5 kg | |
11835
Data sheet
- MPN
- 7438641839230
- Sku
- 11835
New
