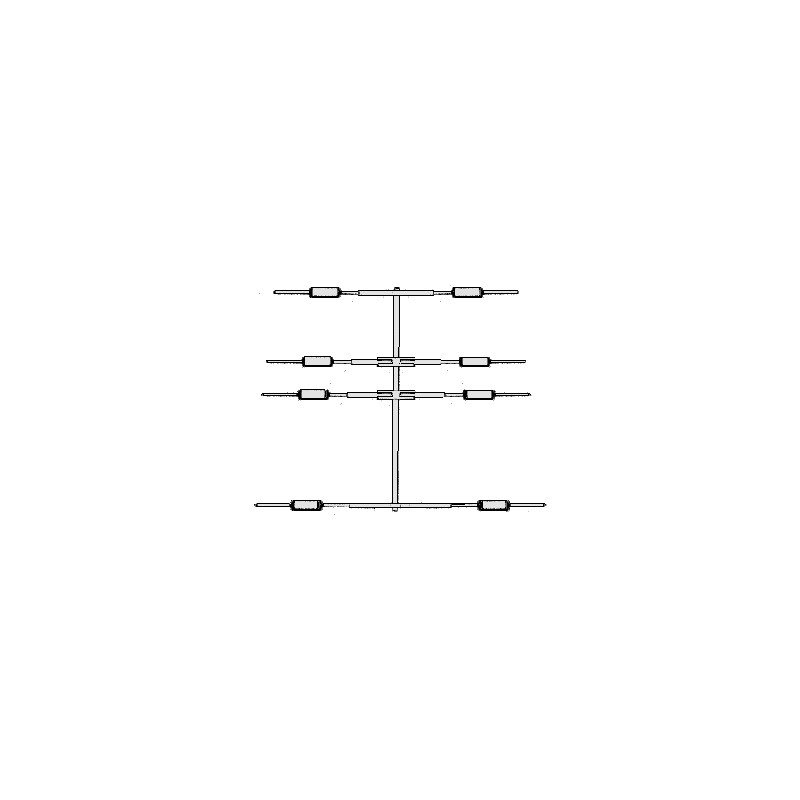

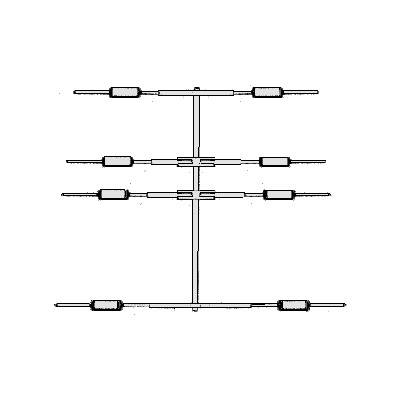

MOSLEY TA 33 JRN WARC 4 Elements 5 Bands Mini directives

MOSLEY TA-33-JRN WARC  10-12-15-17-20 Meters 4 Elements 5 Bands Mini directives

Technical characteristics

• Technical Data:This is a TA-33-JRN with additional WARC dipole. QRV on 5 bands with little effort.
• Gain:10 Meter8.1 dBD12 / 17 Meter0.0 dBD15 Meter6.9 dBD20 Meter5.8 dBD
• Front/Back Ratio:10 Meter20 dB12 / 17 Meter0 dB15 / 20 Meter20 dB
• Max. power:CW0.5 kWSSB1.2 kW
• SWR:1:1 bis 1.6:1
• Boom length:3.7m
• Turn radius:4.5 m
• Mast diameter:38 mm
• Max. element length: 8.3 m
• Weight (approx.):12.2 kg
• Antenna surface:0.46 m²
• Windload (at 125 km/h):430 N
• Shipping weight:15.8 kg
