{ The trap master series, still among the most copied, with broadband and multi-band made! {
{
robust construction and designed for the amateur with a limited space and a limited budget. The Trap Master series responds to everyone's needs, from power management skills to frequency coverage. The great feature on the trap master series is that they are never obsolete! {
The kits can be expanded or reduced to various configurations from a swivel dipole to a multi-element bundle. You can other frequencies or even update to perform more power. {
Our hardware is made of the best degree of stainless steel and our tube is aluminum designed at the aircraft level. As with all Mosley Amateur antennas, the warranty is two years against any defects of material or processing. {
{
{
| Technical Data | ||
| Gain | 10 METER | 5.5 DBD |
| 15 METER | 4.5 DBD | |
| 20 METER | 3.1 DBD | |
| Front/Back Ratio | 10 METER | 20 db |
| 15 METER | 20 db | |
| 20 METER | 20 db | |
| Max. Power | CW | 0.5 kW |
| SSB | 1.2 kW | |

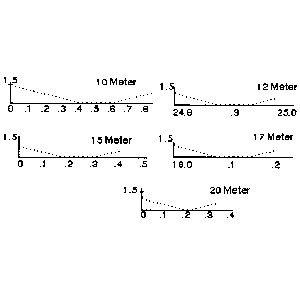

| SWR | 1: 1 bis 1.6: 1 | |
| Boom Length | 1.8m | |
| Turn Radius | 4.2 m | |
| mast diameter | 38 mm | |
| Max. Element Lenmgth | 8.1 m | |
| Weight (ca.) | 6.3 kg | |
| Surface antenna | 0.23 m² | |
| Windload (at 125 km/h) | 260 n | |
| Shipping Weight | 11.3 kg | |
