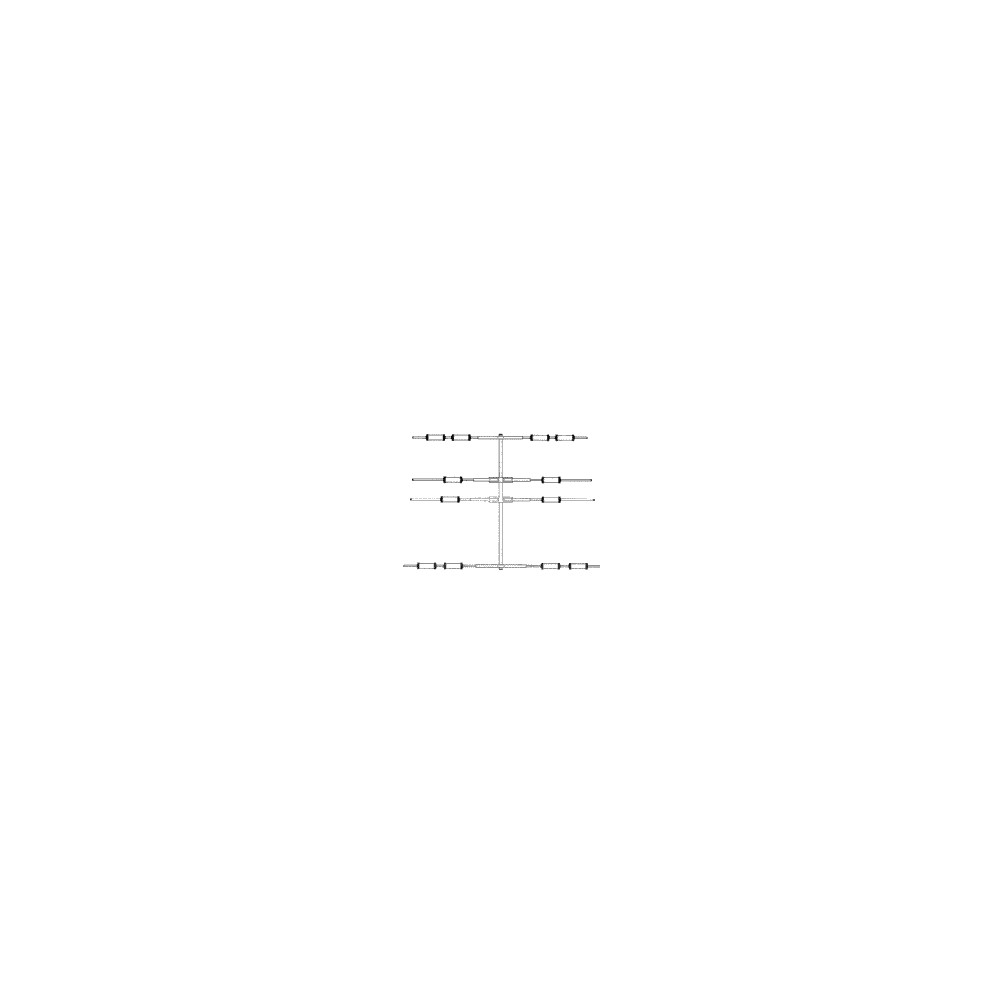

Mosley Ta 53m 10 12 15 17 20 Mate Directive 4 Elements

{ The TA-53M has been developed for those radio amateurs looking for a directive 4 elements 5 bands that occupy little space. {

• {
• a single power line {

• a real broadband antenna that works well with the solid state amplifiers. { {

• {
• An antenna the smallest for 5 bands. { {

• {
• designed to have an excellent profit on the 5 bands and with a boom of 4.3m {

• {
• minimal influence three elements of the antenna due to the restricted space between them. { {

• An antenna that bears severe climatic conditions. { {

This is the antenna suitable for the radio amateur who asks for an antenna for all the purposes. The TA-53M is the same if not better to other three-element directives with 4.3m boom, better in relation to the bandwidth, the construction and the Swr ratio. {
{ we think the light and small ta-53m, it is heavy pou 'of the Mosley Ta-33m and up to twice heavier than the competing antennas of other manufacturers. The reason for this is a very robust construction. At the beginning the TA-53M was designed as a light antenna for military and commercial purposes ...
the TA-53m can be extended to 30 and 40m. The extension kit for 40m is the TA-40KR, the one for 30m the TA-30kr. {
{ tribute shipping
{{} extension kit 6m for ta-53m
{{{{002 {
three active elements each on the 20m, 17m, 15m, 12m and 10m. Outimo performance on all bands! are not necessary, pre-fried, with stainless steel viper. And the Mosley warranty.

the development criteria are:

we think we can do. If you accept a slight deterioration of the front/back ratio, which is given by having only a director and a reflector.

this extends the ta-53m to 3-element/6m antenna. Gain 6.9dbd on 6m. No more need for a separate 6m beam!

technical data

• gain 10 meters dbd 12 meters DBD 15 meters DBD 17 meters DBD 20 meters DBD
• front/back ratio 10 meters db12 meters db15 meters db17 meters db20 meters db
• max. CW1.5 Kwssb2.5 kW power
• mating system "Q" Match SWR: 1.0: 1 to 1.6: 1 {
• length of the boom 4.3 m {
• rotation radius 4.6 m {
• { MAST diameter 50 mm {
• Max. Elementlänge: 8.1 m {
• Weight (Ca.): 24.8 kg {
• surface of the antenna 0.62 m² {
• charge to the wind (at 125 km/h) 710 n {
• Weight to shipping 27.7 kg {
• Another Mosley First! {
