Diamond cpatu antenna hf verticlae hf 3.5-50mhz

diamond cpatu antenna hf verticlae hf 3.5-50mhz.  It is designed exclusively for operation with an external automatic remote tuner. The compatible devices tested by the manufacturer are for example

Antenna CG-3000

ICOM AH-4

ICOM AH-705

ICOM AH-730

MFJ-993BRT

Yaesu FC-40

The use of 2 coils integrated into the radiator allows a reduced length of the radiator of only 4.60 meters. This means that the antenna, produced with the proven Diamond quality, can be used wherever it is not possible to use long cables, for example for reasons of space or for the lack of options for guying. {

depending on the pairing used, the cpatu can work up to 300 W (SSB). {

The tuner is connected to the antenna near the power point using the connection cable about 1.20 meters long supplied. {

To obtain optimal performance, it is essential to guarantee sufficient counterweight. We recommend the use of three radial wires, each 10 meters long, to be connected to the ground connection of the antenna tuner. {

The assembly of an existing antenna pole or a railing of the metal balcony (conductive) is suitable if it must also be used as a counterweight. The necessary assembly material is included in the supply and allows a simple fixing to vertical pipes with a diameter between 30 and 62 mm. {

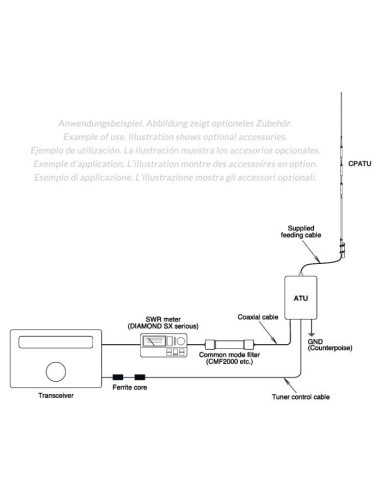

Note: the images have purely illustrative purposes and show optional accessories that are not included in the supply. {
