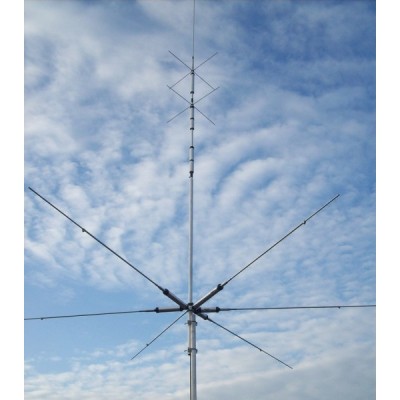

DIAMOND CP 6SR Vertical Antenna HF 6 Mt 10 Mt 15 Mt 20 Mt 40 Mt 80 Mt

Multiband HF Diamond vertical antenna with short radials for 6, 10, 15, 20, 40, 80m.
80 meter radial for CP-6. It resonates at 3575 - 3650kHz for better VSWR in the CW/SSB part. Replaces the standard radial.
80 meter radial for CP-6. It resonates at 3.7 MHz for better VSWR in the SSB part. Replaces the standard radial.

Total height only 4.8m, radial length 1.8m.

High quality finishes and easy assembly, typical of Diamond products.

Maximum power 200W PEP, SWR <1.5, tunable by adjusting the length of the radials.

The PL connector and the mast mounting bracket (30 - 62mm) are included.

If there are space problems, the radials can be mounted on one side only.

Comes with standard SSB center band R-2 radial kit

R-1 Radial

R-2 Radial
