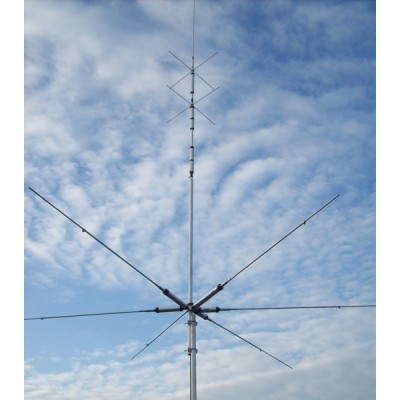

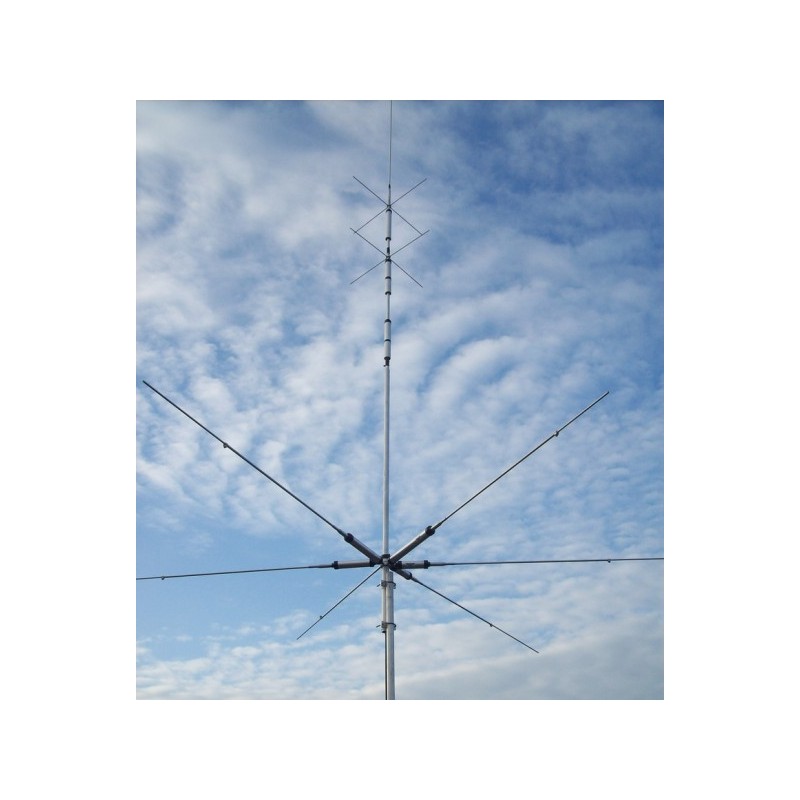

DIAMOND CP 6S HF VERTICAL ANTENNA from 6 to 80MT

HF VERTICAL ANTENNA from 6 to 80MT.
New model
" Vulcanized tape (#15227)" isolates the antenna from the mast, which allows stable regulation of the VSWR.
“Cored Cable (#15226)” is inserted directly under the antenna connector, to reduce  resonance of the coaxial cable.
In the new CP6-S the ROS curve has been improved and is more stable than the previous model.
Operation manual
■ Features
1. The CP-6S is a 6-band vertical antenna for HF and 6m. Compact,
lightweight and simple to assemble. It is self-supporting and does not require
tie rods.
2. Radials can be concentrated on one direction instead of
being distributed over 360°, this is especially useful if
the antenna is installed on the balcony/railing.
3. Since the antenna is directly grounded (DC) at the
power point, the transceiver is protected from possible
electrostatic charges.
4. The central resonant frequency is adjustable in each band
simply modifying the length of each radial.
5. Load-bearing structure, rigid and robust enough to resist
wind pressure up to 90 mph (40m/sec) the antenna
8. New band plans in 40m and 10m are compatible.

The CP-6S has the same characteristics as the CP-6R, with some internal changes to the coils, and two new parts have been included in the new model: 15227 and 15226.

3.5/7/14/21/28-29 and 50MHz – 6 bands vertical

Maximum power 200W PEP, SWR <1.5, tunable by adjusting the length of the radials.
