The rotors of the SPID are of medium heavy use of the same class as those of the Hygain type Tailwister or of the Yaesu type G-1000/2800dxc me with advanced digital characteristics. Mechanical complexity is reduced to a minimum using a double bearing system. Reading the position is acquired by a solid magnetic Reed Switch, CGE by a resolution of 1 degree. {

The controller is completed by several characteristics, including digital reading, Cottollo Software Control and an integrated interface for the PC (USB). It is in degrees to emulate HY-Gain, Yaesu and Orion rotors, and is compatible with almost all software. The dek controller features make it easy to upgrade with a Plug-in prom. {

The rotors require an external power supply of 12 ... 24V DC, it is also possible to feed it at 12V for any portable uses with a reduced torsionary fora and a greater period of rotation. {

The twisting force 'about 350nm (3,200 lb-Iinch), with power to 24. It is significantly greater than any other rotor of the same class and of the same price range. {

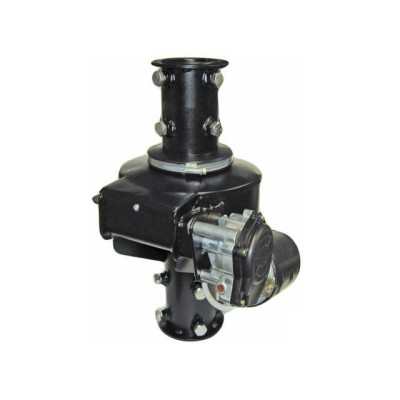

The Big-Rak and Big-Ras rotors are characterized by having a very high rotation pair of rotation and brake designed for use with large antennas systems. {

thanks to the double endless screw and the same magnetic sensor as the RAK/RAS models, the big version has the same 1st resolution. {

The new RAU compact rotor is designed for smaller antenna systems for VHF and microwave. {

General specifications

• {
• low voltage - high force of twisting 24vdc (or 12vdc) {
• version at 24/12 Volt with twist (Rak/Ras): 366/166 nm {
• version at 24/12 Volt with twist (big-rak/big-ras): 583/903 nm {
• version at 24/12v Rotation of 360 degrees, rotation period: 60/120 sec. {
• silent and powerful action of self-fingering with double reduction {
• Use little expensive cables to 4 conductors {
• Technology with switching sensors sealed for the utmost reliability and resistant to the environment {
• definition of 1 degree- Strait tolerance for a minimum game {
• Possible operating at low voltage with 12 volt power supply (typically 2-5 Amps), ideal for camping, DX shipments, and VHF/UHF {
• sized for large loads if mounted on a trellis {
• designed for masts on mast of 50mm (2 ") {
• Available set of adaptation to be adapted adequate rotor platforms {
• the coaxial cable can pass in the center of the rotor, thus preventing breakage or damage to the cable.

controller

• {
• Manuals, automatic, scanning, and programmable {
• digital reading with 1 degree of resolution {
• Large display easy to read with green LEDs {
• computer interface included serial cable, with ways of emulation of the Hygain, Yaesu and Orion {
• it can be reset to zero in any position to correct installation errors or antenna sleds {
• { Genous OverTravel (± 180 °) with electronic limits {
• programmble limits ideal for side Mount Applications {
• Small Front Panel to Simplify Stacking Several Units Takes Up Less Valuable Space {
• Optional Mouse Control With 6 User Programmable Presets {

horizontal rotors rak / bigrak / rau

applicable for simple installations as for the Yagi or other heavy short wave antennas. The mechanical parts are dentated mechanisms made of steel (as shown in the figure), which guarantee a long and continuous work and high reliability work. anti -corrosion paints. {

technical data

[1] Maximum twisting force and period of the voltage dependent rotation (12 - 24 V).
