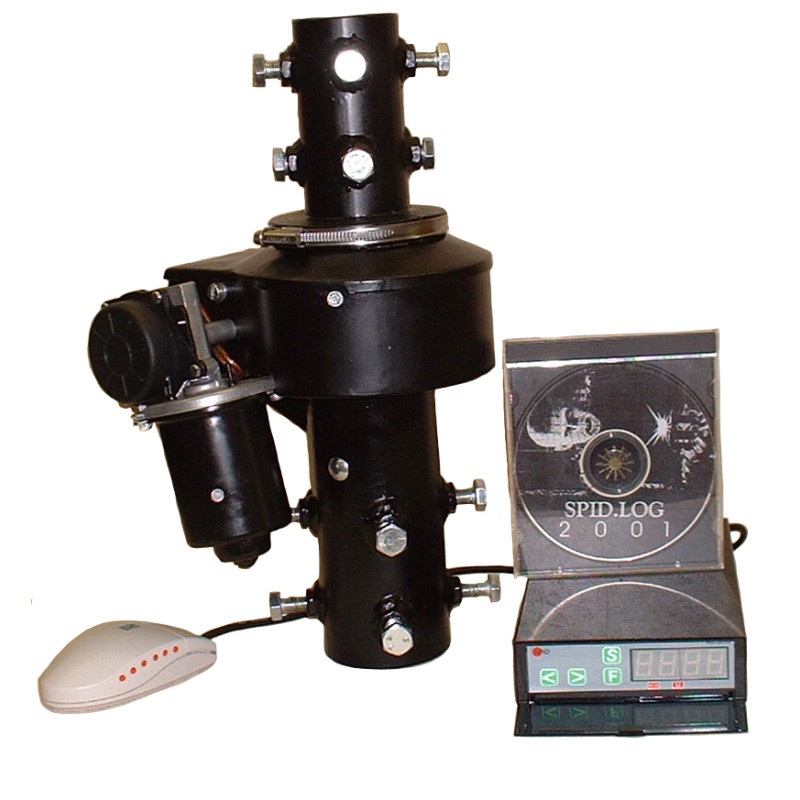

The Rators of the SPID are of medium heavy use of the same class as those of the Hygain type Tailwister or of the Yaesu type G-1000/2800dxc me with advanced digital characteristics. The mechanical complexity is reduced to a minimum using a double bearing system. Reading the position is acquired by a solid magnetic Reed Switch, CGE by a resolution of 1 degree.

The controller is complex by several characteristics, including digital reading, software control control and an integrated interface for the PC (USB). It is in degrees to emulate the raetors HY-Gain, Yaesu and Orion, and is compatible with almost all software. The dek controller features make it easy to upgrade with a Plug-in prom.

The rotors require an external power supply of 12 ... 24V DC, it is also possible to feed it at 12V for any portable uses with a reduced torsionary flow and a greater period of rotation.

The twisting force 'about 350nm (3,200 lb-Iinch), with power to 24. It is significantly greater than any other rotor of the same class and of the same price range.

The Big-Rak and Big-Ras rotors are characterized by having a very high rotation pair of rotation and brake designed for use with large antennas systems.

thanks to the double endless screw and the same magnetic sensor as the Rak/Ras models, the Big version has the same 1st resolution.

The new compact RAU rotor is designed for smaller antenna systems for VHF and microwave.

General specifications

rotors

• {
• low voltage - high force force of 24vdc (or 12vdc) {
• version at 24/12 Volt with twist (Rak/Ras): 366/166 Nm {
• version at 24/12 Volt with twist (Big-Rak/Big-Ras): 583/903 Nm {
• 24/12V version of 360 degrees, rotation period: 60/120 sec. { {
• silent and powerful action of self -strength with double reduction {
• uses little expensive cables to 4 conductors {
• Sealed switching sensors for the maximum reliability and resistant to the environment {
• definition of 1 degree- Strict tolerance for a minimum game {
• Possible operating at low voltage with 12 volt power supply (typically 2-5 amps), ideal for camping, DX shipments, and VHF/UHF {
• sized for large loads if mounted on a trellis {
• designed for mast of 50mm (2 ") {
• Also available set of adaptation to be adapted adapter rotor platforms {
• The coaxial cable can pass in the center of the rotor, thus preventing breakage or damage to the cable. {

Controller

• manuals, automatic, scanning, and programmable {
• digital reading with 1 degree of resolution {
• Large display easy to read with green led
• Computer interface including serial cable, with ways of emulation of Hygain, Yaesu and Orion {
• can be reset to zero in any position to correct installation errors or antenna sleds {
• Genous OverTravel (± 180 °) with Electronic Limits {
• Programmable Limits Ideal for Side Mount Applications {
• Small Front Panel to Simplify Stacking Several Units Takes Up Less Valuable Space {
• Optional Mouse Control With 6 User Programmable Presets

Download here the specifications and measures

RAK / BIGRAK / RAU

applicable for simple installations such as for the Yagi or other heavy short wave antennas. Mechanical parts are dentated mechanisms made of steel (as shown in the figure), which guarantee a long and continuous work and high reliability work. corrosion.

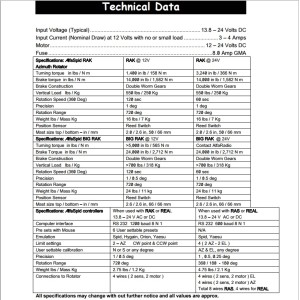

technical data

[1] Maximum twisting force and period of the voltage dependent rotation (12 - 24 V).
