Amplitec 4 Coaxial switch control via pc or manual

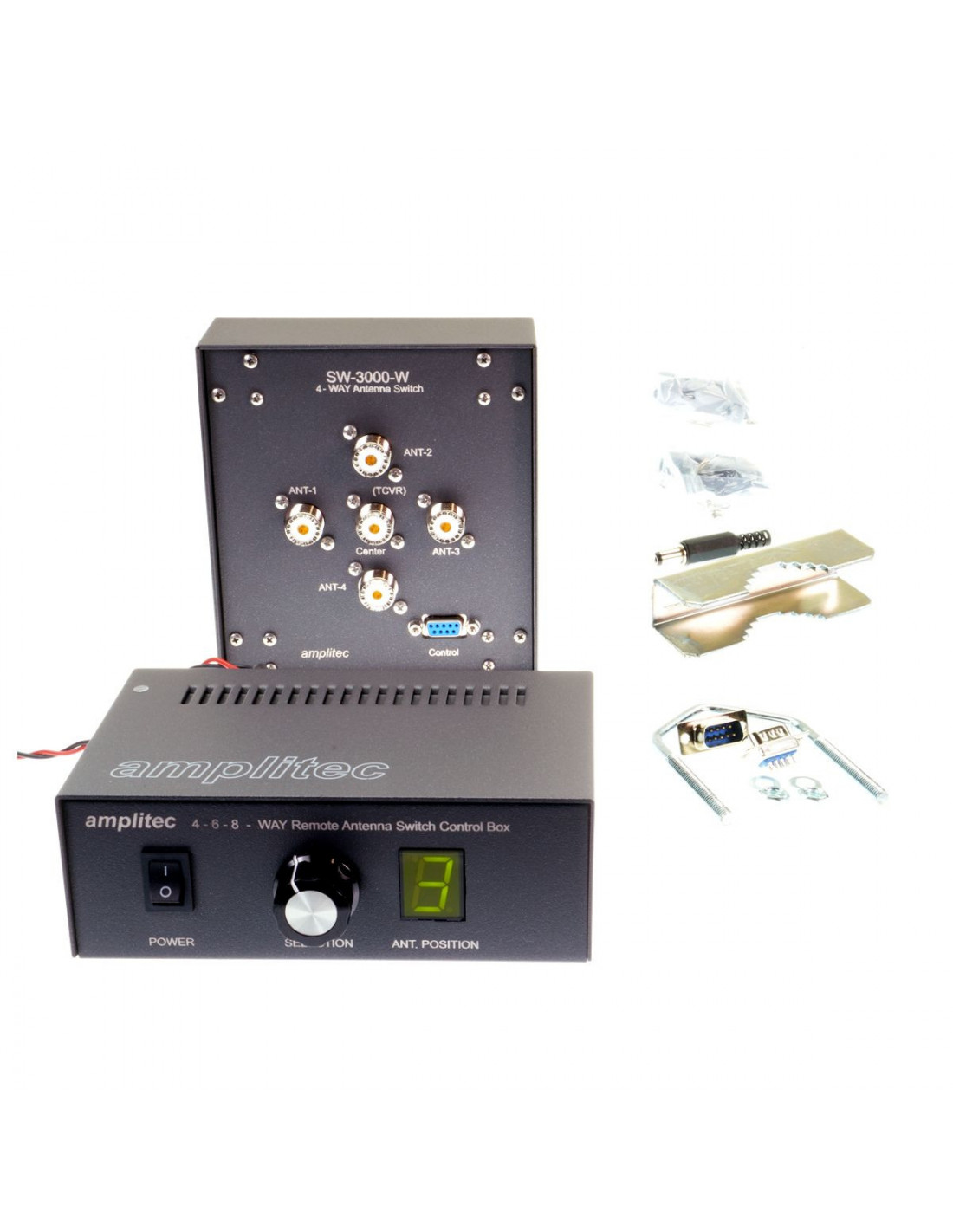

Amplitec 4 Coaxial switch control via PC or manual a 7 -segment LED display easy to read provides information on the current out of exit at any time. {

The cable of the antenna and the coaxial cable of the station are gathered in the real "commutator". This separate box can be placed far from the work area, for example in the attic or in an adjacent room. In this way the size of the cables in the shack is significantly reduced. The controller and the switch are connected to each other with a control cable of any length (not included). For this purpose, the necessary spines are provided on both housings and sub-d on 9 pin.

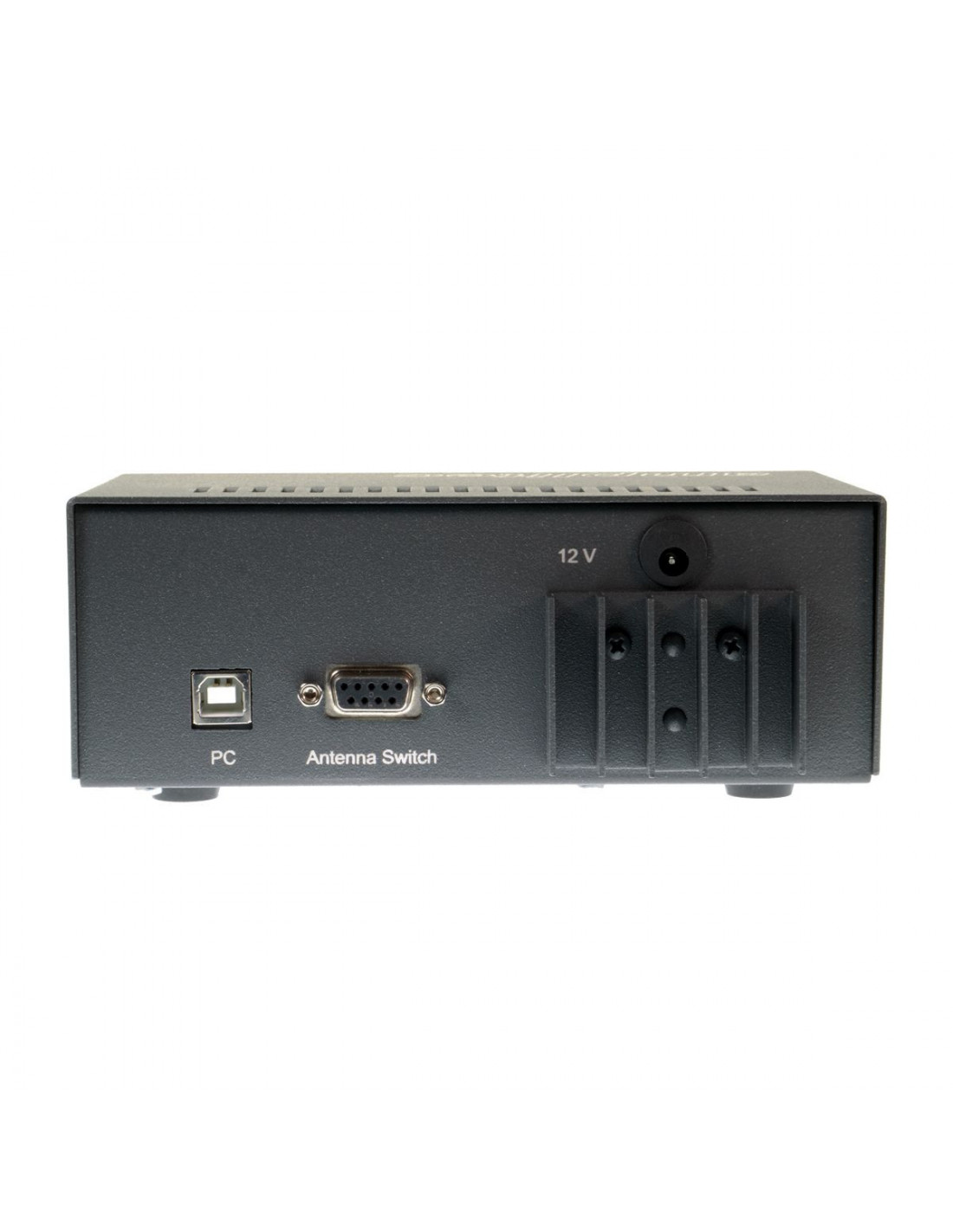

The power supply of 12 V CC is supplied directly by means of the PIN CAVA CAVA of the control unit; The supply also includes a suitable power cable.

maximum transmission power:

• {
• 100 KHz - 30 MHz: 3000 Watt {
• 50 MHz: 2000 Watt {
• 70 ​​MHz: 1000 Watt {

The appropriate command cable for connection of control and interrupting is reported below.
