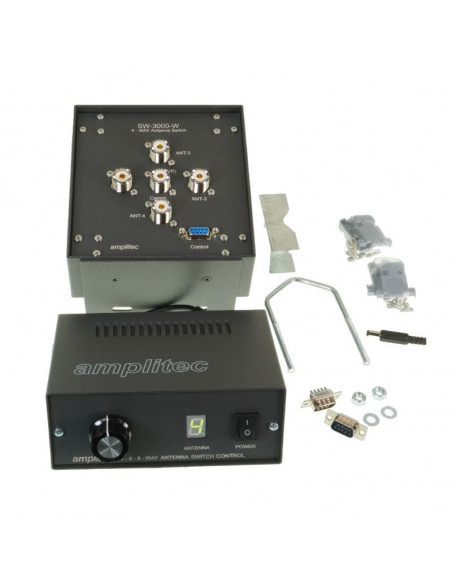

Amplitec 4 Remote coaxial switch

amplitec 4 Remote coaxial switch manually commutable outputs and can be used in the entire spectrum of 100 kHz frequencies to 30 MHz, as well as on 50 MHz and 70 MHz. A particularly practical feature is that the desired output can be selected comfortably by a remote control unit, which can be positioned in a suitable place in order to be easily accessible. {

A 7 -segmes easy -to -read LED display provides information on the currently moved output at any time.

The cables of the antenna and the coaxial cable for the station are gathered in the current "switch". This separate box can be kept far from the work area, for example in the attic or in an adjacent room. In this way the size of the cables in the shack is significantly reduced. The controller and switch are connected with a control cable of any length (not included in the supply). For this purpose, 9-pin sub-d sub-d are available on both housings; The necessary thorns are provided supplied. The "12: 1" version uses 15 pin connectors.

The 13.8 V CC power supply is supplied directly by means of the cava Pin cava of the control unit; The supply also includes an adequate power cable.

{{} maximum management of the Potenza:

• {
• 100 KHz - 30 MHz: 3000 Watt {
• 50 MHz: 2000 Watt {
• 70 ​​MHz: 1000 Watt {

Control cable not included
