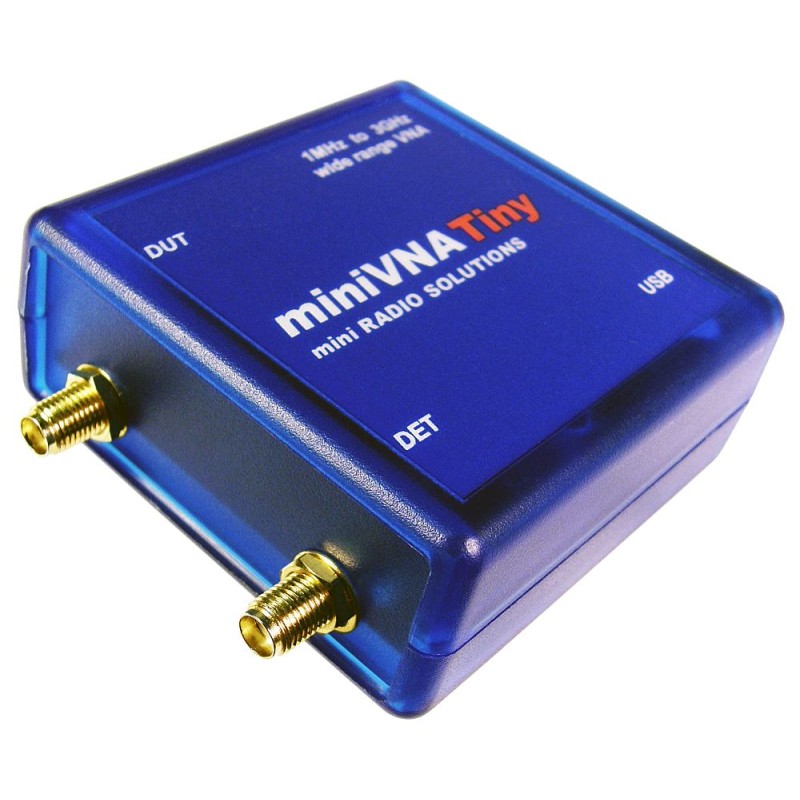

Minivna antenna analyzer 1 to 3000 mhz

Minivna -in is a very compact antenna analyzer with USB connection. Remarkable is the very wide range of frequencies from 1 to 3000 MHz. The minivna -in is a network analyzer and not only allows the measurement of Swr and antennas impairment. As a two-door system, Minivna -in can be used for transmission measures on band filters or amplifiers. The device works as a vector analyzer, suitable for performing quadrupular measurements typical of the S11 and S21 parameters. The results can be displayed or stored as Smith's diagram. {

Due to the calibration with an optional calibration kit (open, short, load, see article 21010.sma), the measurement results are precise and easily reproducible. The impedance (z) can be measured from 1 to 1000 Ω, the dynamic range is up to 70 dB. The analyzer can also be used as a low power hf generator. The power supply is provided by the USB interface, an external power supply is not required. Software updates are also provided through the USB interface. The recommended software is 'Vna / J' the same software already known by the other products Minivna. This software is available for Windows, Mac and Linux, a new app for Android is also available. {

The app for Android is called "Bluevna" and is available in the Google Play Store. The connection to the Android device takes place via USB, an OTG adapter is required (not sold by SM Technology). {
