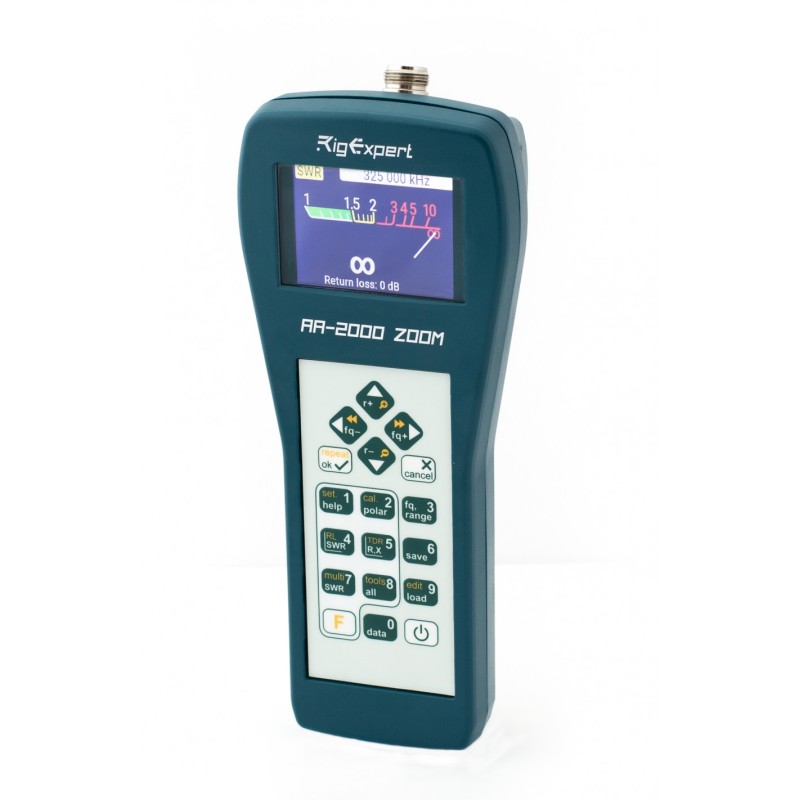

RigExpert AA-2000 ZOOM Analyzer up to 2000 MHz

RigExpert AA-2000 ZOOM Analyzer up to 2000 MHz

Frequency range:  0.1 to 2000 MHz

Frequency input:  resolution 1 kHz

Measurement for  25, 50, 75, 100, 150, 200, 300, 450 and 600-Ohm systems

SWR measurement range:  1 to 100 in numeric mode, 1 to 10 in map mode

R and X range:  0… 2000, -2000… 2000

View mode: SWR, return loss, R, X, Z, L, C, magnitude and phase angle at a single frequency, SWR graph (100 points). SWR graph on fixed HAM bands for IARU regions (100 points), Multé mode, cable tools (speed factor measurements, cable length meter, stub tuner, cable loss checker), TDR

Optional short open load calibration in SWR, R, X, or Smith/polar graph graph modes.

RF output:
- Connector type: N
- Output signal shape: square, 0.1 to 200 MHz. For higher frequencies, the harmonics of the main signal are used.
- Output power: -10 dBm (with 50 Ohm load)

Power:
- Three 1.2V batteries, 1800… 3000 mAh, Ni-MH, type AA
- 3 Li-Ion / Li-PO batteries 3 × 3.7 V, size AA
- Max.  3 hours of continuous measurement, max.  2 days in standby mode when using fully charged batteries
- When the analyzer is connected to a PC or DC adapter with a USB plug, it draws power from these sources

Interface:
- 400*800 color BlanView display
- 6 × 3 keys on the waterproof keyboard
- Multilingual menu and help screens (English / German / French / Spanish / Portuguese / Italian / Japanese / Ukrainian / Russian)
- USB connection to personal computer
- Bluetooth v. 4.2 (Single Mode, Class B)
Dimensions:  23x10x5.5cm (9x4x2")

Operating temperature:  0… 40 °C (32… 104 °F)

Weight:  650g (23 Oz)

Warranty: 2 years RigExpert Care

GTIN-13: 4820185420310

RigExpert AA-2000 ZOOM is produced in Ukraine.

Specifications are subject to change without notice.
