DXPATROL Amplifier for the 2400 MHz 12 Watt

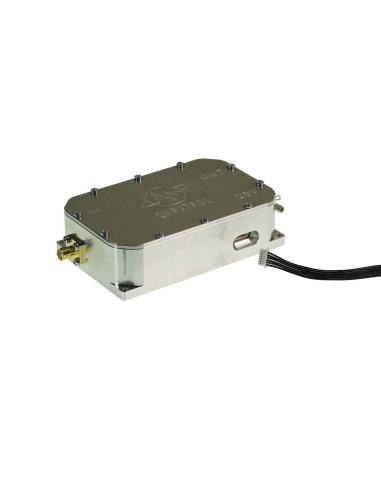

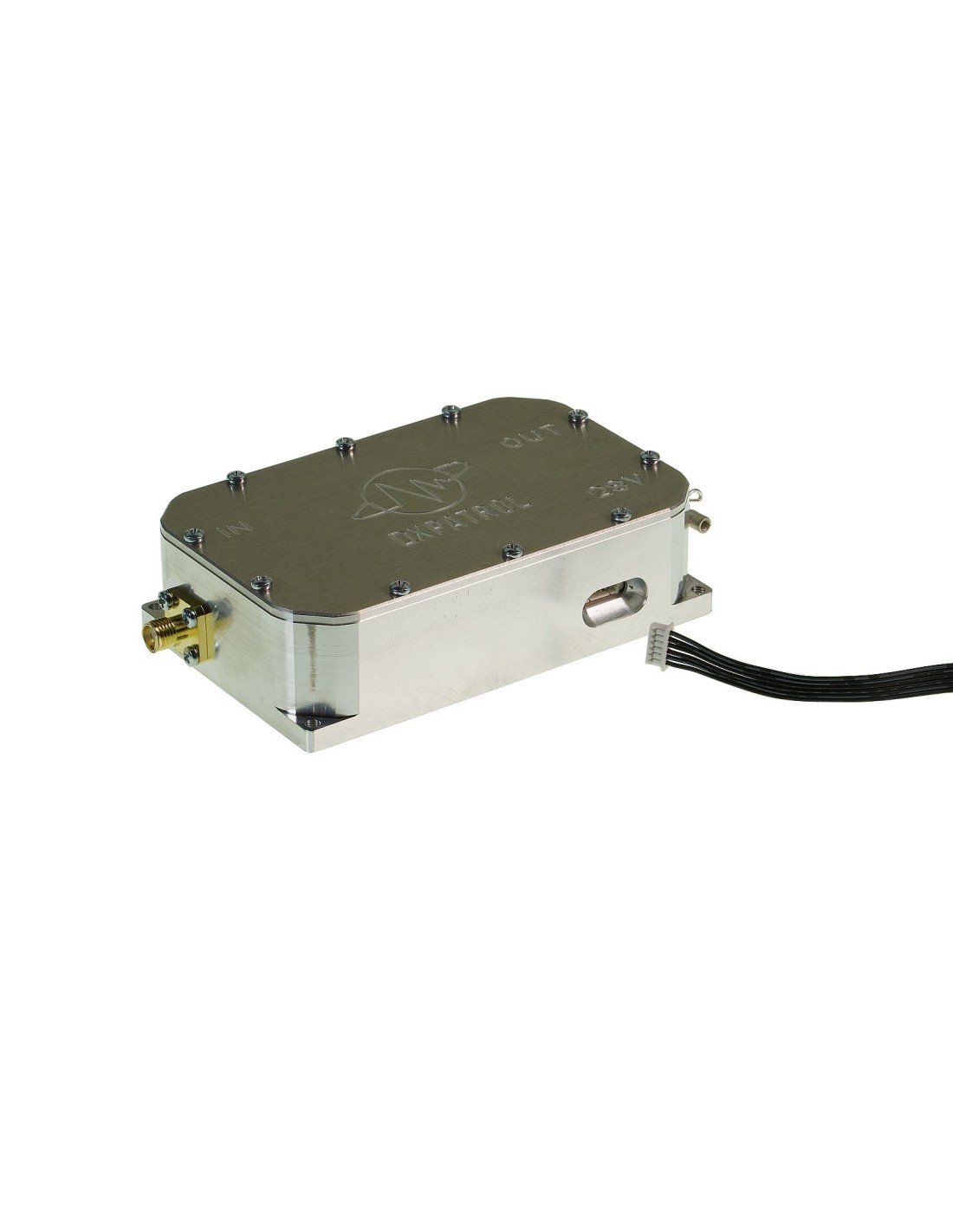

DXPATROL amplifier for the 2400 MHz 12 Watt offers a profit of about 24 dB. The drive power is max. 70 MW, the 28 V output power of power voltage is max. 12 Watt (5 Watt at 12V). The amplifier is equipped with outputs (0-4v) for switch and power, these signals are brought outside through passing capacitors. PTT's typing takes place through an external signal or through HF Vox (can be off). The inputs and outputs are designed with an impedance of 50 ohm, all HF connections are taken SMA. {

Description of the application qo100-AMP12

The DXPATROL QO100 12W amplifier is ideal for satellite or terrestrial operations on the 13cm band. Using a modern LDMOS module and careful design of the circuits, a clean amplification is guaranteed. This is all the more important when operating through the QO-100 satellite, so as not to disturb other users. {

The integration into your system is easy. All the necessary signals are conducted outside the sturdy aluminum housing through passing capacitors. Ptt Keying can be done either through a switching signal on the ground or through HF Vox. The signs of measurement for switch and output power (0-4v) allow precise control of the operation of the amplifier. The supply voltage can be 12 to 28 V, with the full output power reached only to 28 V. A step-up converter from 12 to 28 V is included in the delivery. {

technical data

Product Name qo100-AMP12

amplification (DB) 24

supported band 13cm

brand dxpatrol

Mass. [W] { 12 W
