RM Italy The 250V amplifier for 2m

Name: RM Italy The 250V amplifier for 2m
Brand: RM Italy
SKU: LA-250V
Price: 664.72 EUR
Availability: InStock

Reference LA-250V

In Stock

€664.72

Order processing times and shipping times:

Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.

Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.

Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.

When will it arrive?

Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.

Deliveries are made Monday through Friday.

Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.

Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.

Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.

{

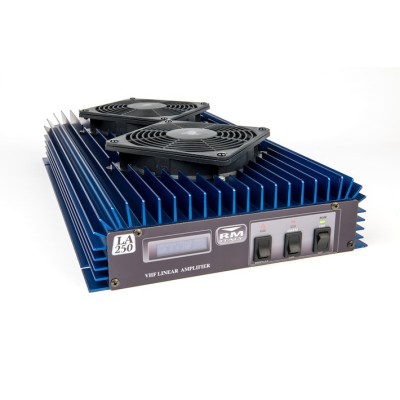

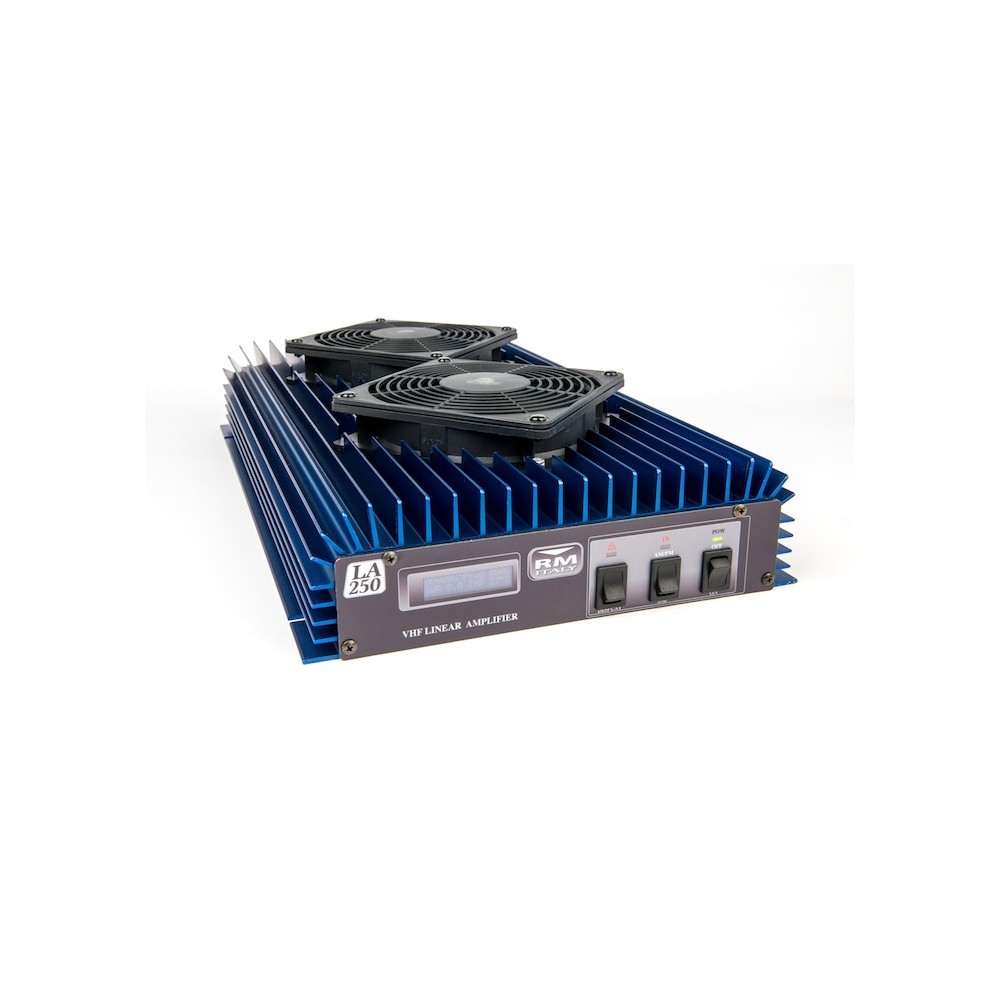

{ The LA-250V is a 200W 140-150mHz amplifier, at 1 to 20W input (13.6v 30a). It uses 4 Mitsubishi RD70 Mosfet mounted on a copper heat diffuser (200x60x3mm). It is available in two versions, one with and one without top mounted fans. There is an external PTT input but it can also be used without incorporated cause HF-Vox. {

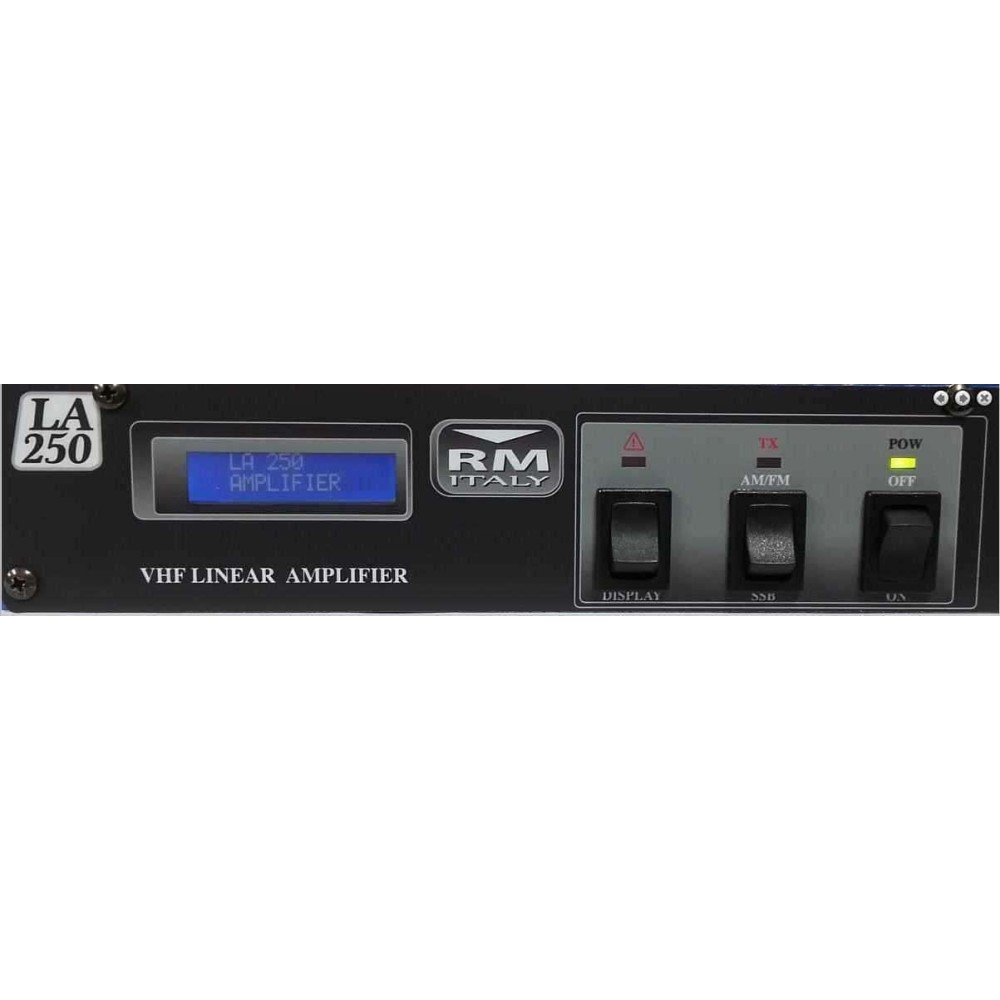

The front panel is equipped with an LCD display that shows entrance power, output power, heat heat heat heat hallnown and VSWR output. There is the possibility to change the intensity of the backlight. The CPU keeps an eye on entry power, temperature and ROS and will possibly deactivate the amplifier to be transmitted in the event of a failure. Any errors will be recorded and will be available for the recall following diagnostic purposes by the manufacturer or distributors. The weight is about 4kg. {

{

The dimensions are approximately 240x420x70mm for the non -fan version and 10 millimeters more than 80mm height, for the fan version. {

	la-250V
Frequency range	140 - 150 MHz
Supply Voltage	13.5v
Power consumption	max. 30 to
Input Power	1-20 W
Output Power Typ.	200 W
Fans	No	Yes, 2x
RX Pre-Amplifier	Switchable, 10-25db
Fuses	2x 12a Internal 2 td>
SIZE	240 x 420 x 70 mm	240 x 420 x 80 mm
Weight	4.0kg
	>

{

the La-250 is a 200W 140-150mHz amplifier, at 1 to 20W input (13.6v 30a). It uses 4 Mitsubishi RD70 Mosfets Mound on a Copper Heat Spreader (200x60x3mm). It is available in Two Versions One with and One Without Top Mound Fans. There is an external ptt input but it can be used also with two to the built-in hf-vox. {

{

The Front Panel Features an LC Display Which Shows Input Power, Output Power, Heat Sink Temp and Output VSWR. There is the skill to change the Intensity of the backlight. The CPU Keps An Eye on Input Power, Temperatures and VSWR and will if necessary disabled the amplifier from Transmitting if there is fault. Any Errors Will Also Be Recorded and Will Be Available for Later Recall for Diagnostic Purposes by Either the Manufacturer or his distributors. Weight is landing 4kg. {

{

dimensions are approximately 240x420x70mm for the non fan version and an extra 10mm of height, 80mm, for the fan version. {
