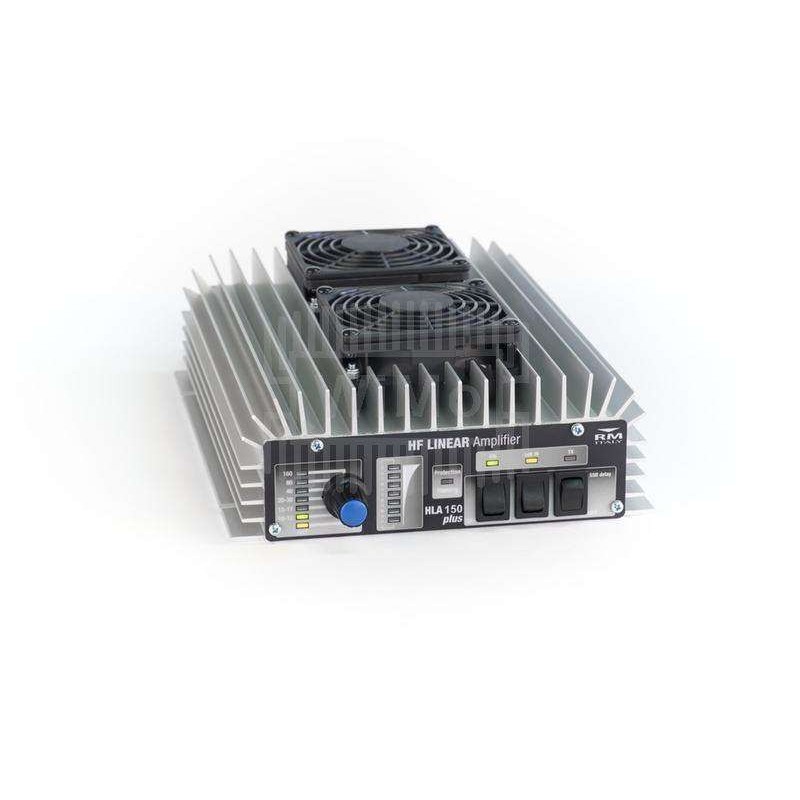

RM ITALY HLA 150 V PLUS linear amplifier HF and CB

} HF amplifiers from 150/300watt

compact and easy to handle linear amplifiers for all HF bands from 1.8 to 30 MHz with exit powers of about 150 or 300 watts. These amplifiers do not operate in class C as many CB amplifiers do. A feature that distinguishes them is the six-way output of output filter, automatically switched by a microprocessor. These filters can also be commuted manually (p.e. In reception).

The output power is shown by a LED bar on the front panel. The amplifiers are protected against high ROS. The transmission/reception switching can take place through VOX or a PTT line. The controls on the front panel allow the selection of the VOX withholding time and it is possible to insert an entrance to the 3 dB entrance that reduces the 50%amplifying. {

Connectors: In/OUT 2X PL, PTT: Cinch, Low active. {
The model Hla-150v-Plus has two thermostat fans, excellent for continuous use. The HLA-300V-Plus model has three standard fans. On high frequencies, the power is slightly reduced, the HLA-300V-Plus model reaches about 250 W.

technical characteristics

frequency HF

Food 12-14 VCC

Current absorbed 24 at

Input power 1-10 W

Input power SSB 2-20 W

output power 150 W

SSB 250 W PEP

way to

Fusible 2x12 at

output power 2

dimensini 191x290x80 mm

Weight 2.0 Kg
