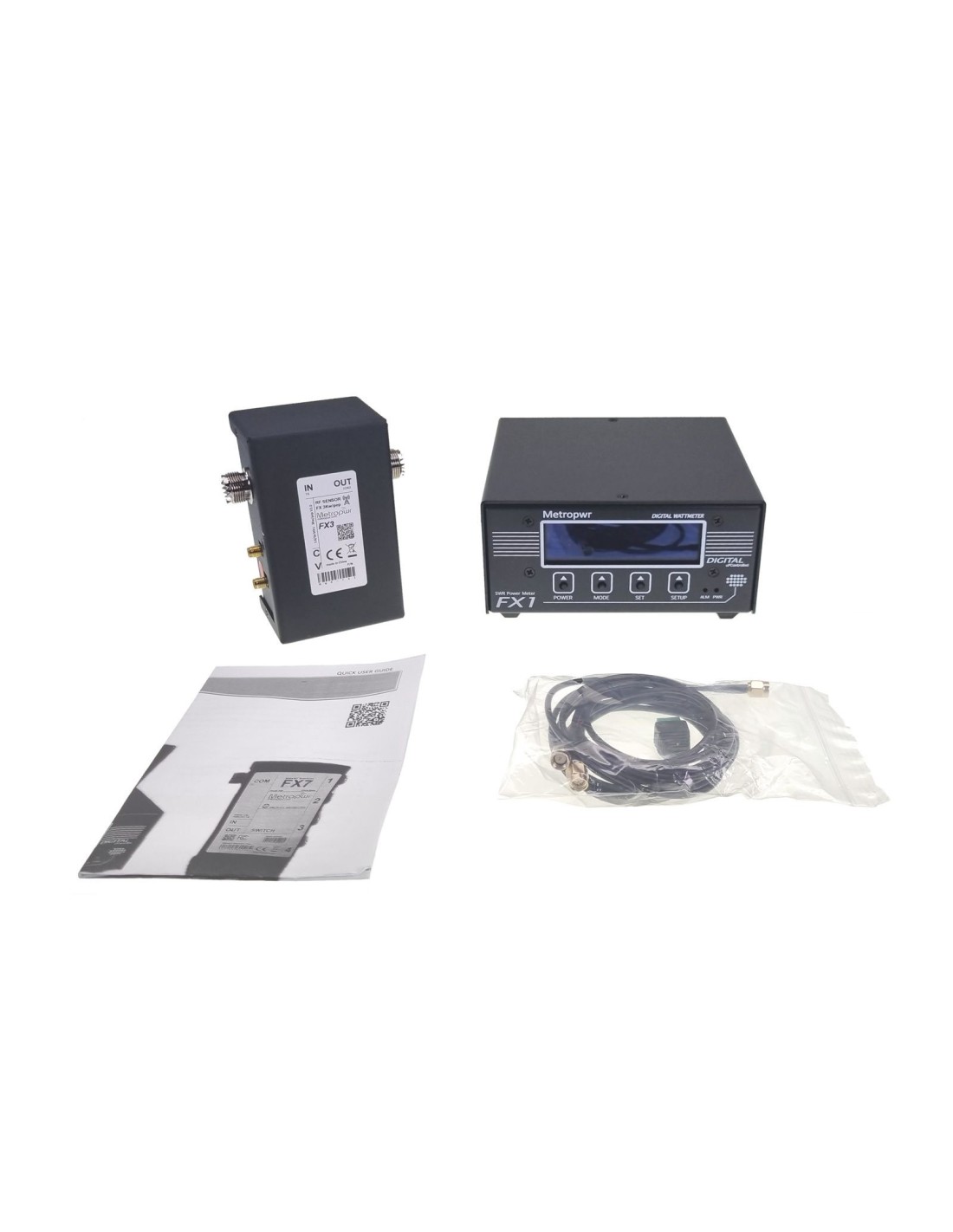

Metropwr FX1 Vector wattmeter with 3" Oled display and FX3 probe

Metropwr FX1 Vector wattmeter with 3" Oled display and FX3 probe frequency range from 1.8 to 54 MHz, fully digital. The fast 32-bit processor and coprocessor allow you to measure power (average, PeP, dBm) and SWR in real time. In addition to the VSWR, various measurement values such as R, Z and X can be determined for each antenna.

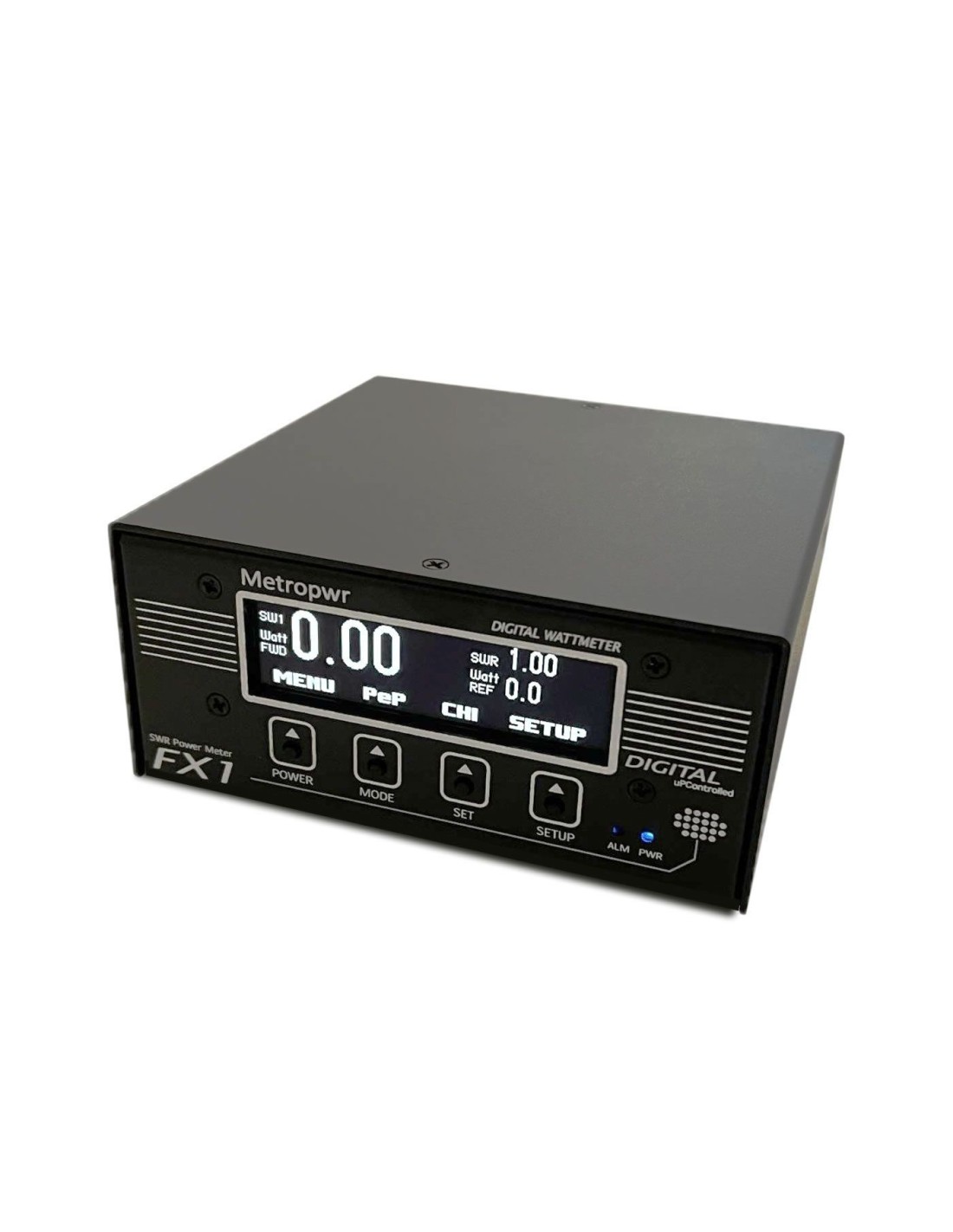

The front panel, with a very clear design, features a high-contrast 3.1" OLED display to display the measured values. Only 4 softkeys are available for setting up and operating the FX1, located directly below the display.

External Metropwr sensors can be installed up to 5 m away from the control unit. Shortwave sensors up to 3 or 5 kW are available. The sensors are intended for indoor use (they are not weatherproof) and include a directional coupler through which measurement data is reported to the main unit.

The FX1 comes with a 6m shortwave FX-3 sensor, which can be used to take measurements up to 3 kW. It is equipped with PL connections and is simply connected to the antenna cable.

Firmware updates can be installed via the integrated USB interface to benefit from any improvements.
