METROPWR FX 773 wattmeter rose meter from 3 to 5 kw

METROPWR FX773, is a modern fully digital VECTOR POWER/SWR METER. It consists of a wattmeter and a power coupler for measurements up to 3/5kW. It has a very modern design and very high performance. It has a fast 32bit processor inside plus a coprocessor to manage all measurements in real time, and measure Power (AVG, PeP, dBm), SWR, R, Z, X and more. It has a fast external bus with which many accessories can be connected in series:

3 KW PROBE INCLUDED

1X4 antenna switch positions

Radio switch 1X4 positions

3/5kW directional coupler

Power switches

VHF/UHF coupler

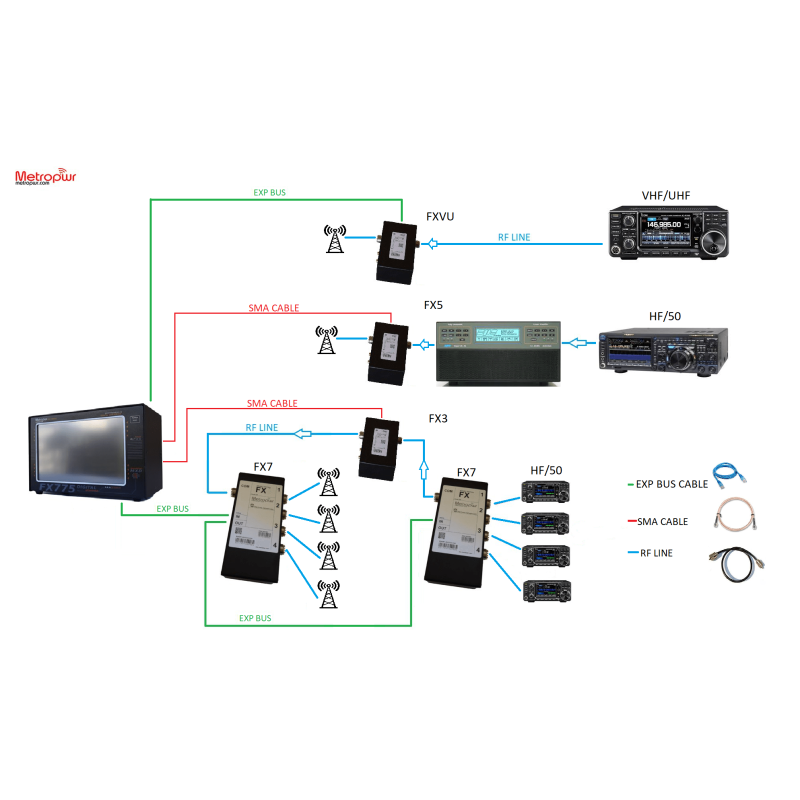

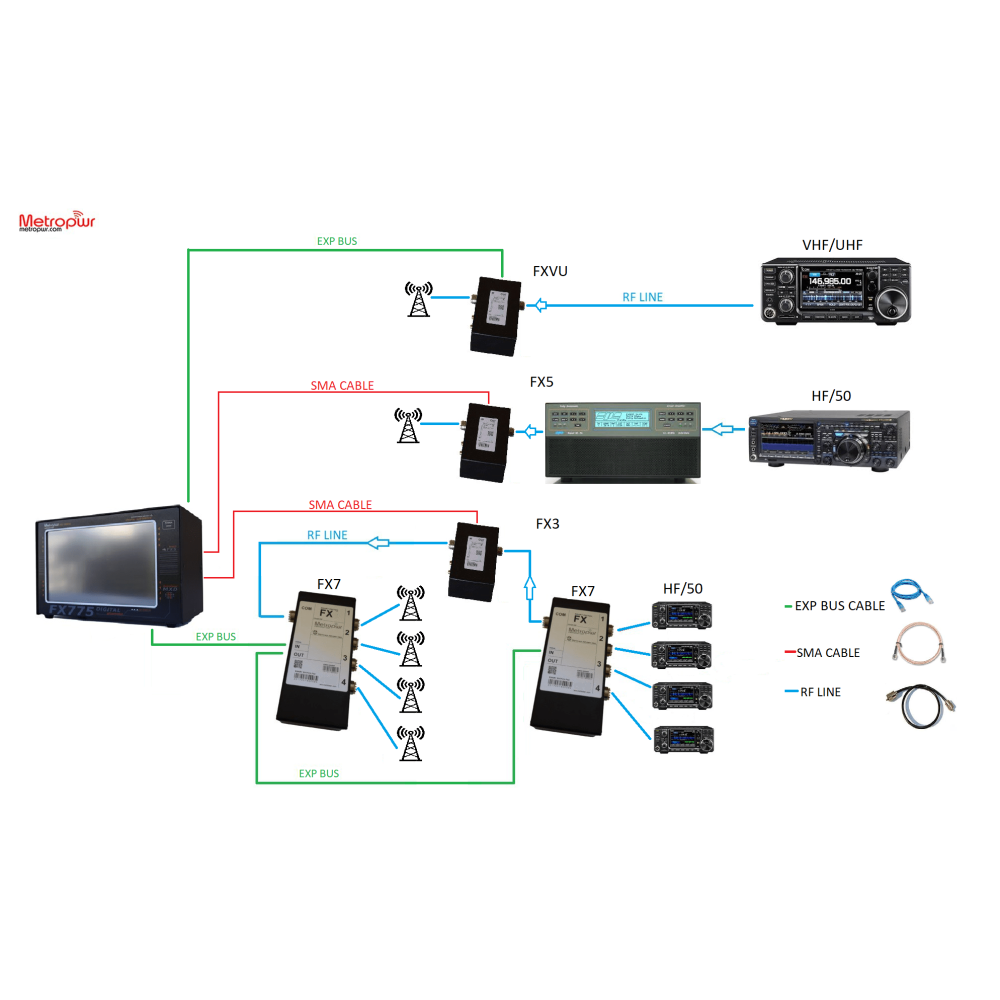

To understand the potential of the METROPWR FX773/FX775 Wattmeter, I attach some connection diagrams. The potential is enormous thanks to the scalability and expandability of the tool. Perhaps calling it a wattmeter is somewhat reductive since in the Metrovna I thought about the great design of an instrument capable of measuring almost any power at almost all frequencies and managing all antennas and radios at the same time. In short, a UNIQUE instrument of its kind and perhaps never seen before. Regarding the Metrovna, I wanted to integrate all the features of commercial instruments and integrate them into a high-tech wattmeter. Starting from the unique design of SMART functions, in addition to the common tools seen in the last decades. Recalling the chats in the photos below some connection diagrams:

– Easy for HF/50MHz 3/5kWatt

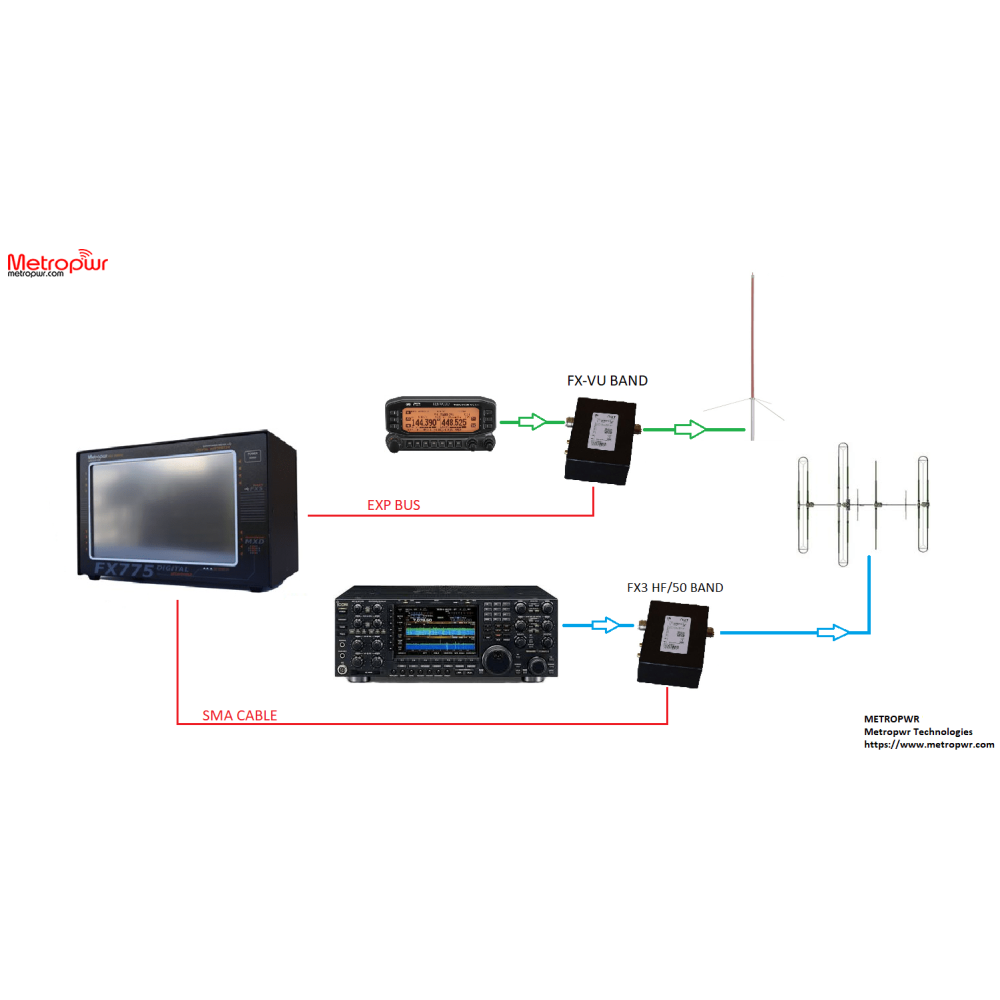

– Dual for HF/50MHz 3/5Kwatt + V/U Band

• Measurement errors

• High SWR alarm

• RX/TX/Wait

• ADC/ACT monitoring

• USB PC RX/TX

• Control I2C Bus

• AVG power, PeP (autoranging scale 0.5W/5kW)

• Power expressed mW/W/kW and dBm

• CFA / RL

• Power AVG,P&P Dual Function Meter

• Measure return loss

• Antenna Measurement Parameter Resistance, Impedance, Reactive (R, Z, X) Up to 3 / 5kW

• Supply voltage Vcc / USB

• Operating frequency MHz, KHz, Hz

• Operational OM band

Technical Characteristics VECTOR SWR/POWER METER METROPWR FX773/FX775

It has a large, very fast and responsive LCD touch screen display, with which it is possible to monitor:

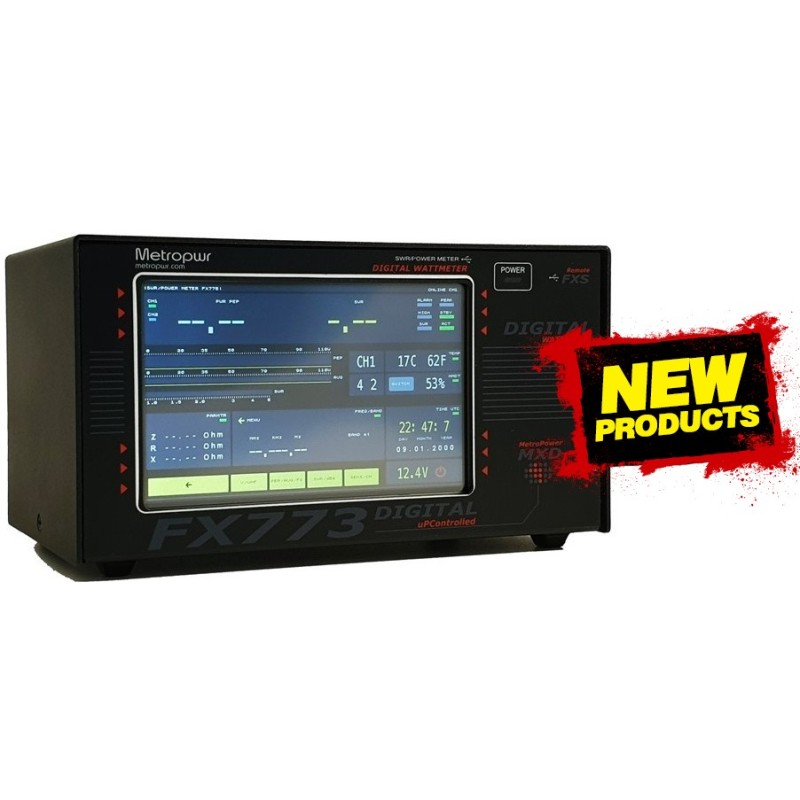

In the photo, the Metrowatt FX775 with the first menu through which you can view

Functional features

 Coverage 1.8/55 MHz 160/6mt + VHF/UHF

 HF/55MHz Power measurement AVG, PeP, dBm, R, Z, |X| , SWR, Frequency

  Wide autoranging power range 0.5 W/5 kW

  V/U SWR/Power/FWD/REF measurement

 Optional couplers HF/50 MHz 0.5 W /3 kW (FX3) – 0.5 W/5 kW (FX5)

 Optional 200W VHF/UHF coupler (FX-VU)

 Accuracy SWR Error <5%

 Directivity coupler 30dB

 Power Accuracy Best 5%

 Operating voltage 13.8V

 Dimensions 205x120x109 mm

 Weight 200gr

 TFT display 5" (FX773) / 7" (FX775) 16K color touch screen

 up32bit + coprocessor

 14 internal menus

 Internal analog/digital UTC clock

 PC USB port

 16-bit ADC resolution

 Bring fast EXP

 firmware update via USB

 App Pc Software

>
