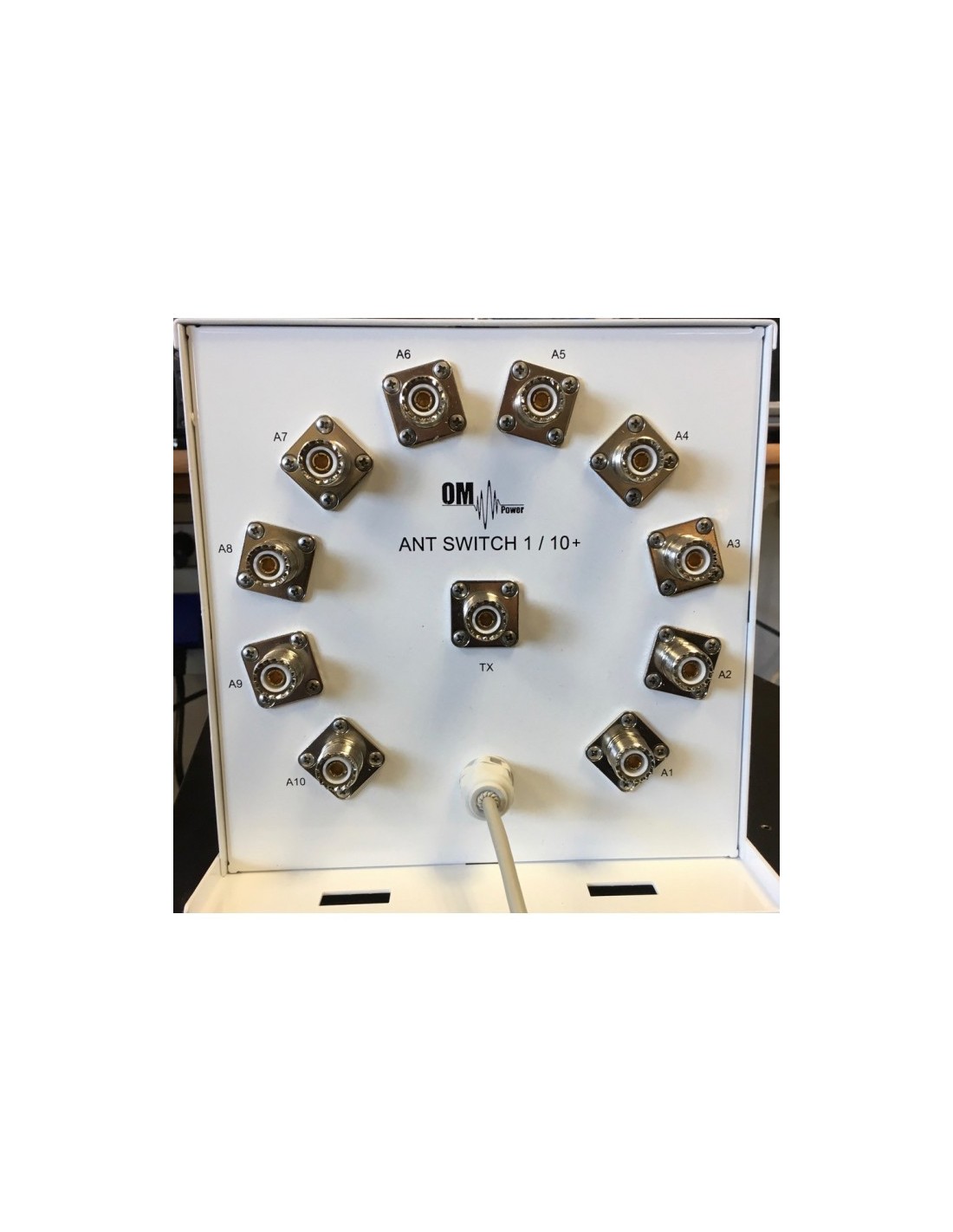

Om Power OM SW 1/10+ antenna switch

Om Power OM SW 1/10+ antenna switch

Specifications

Frequency range: 1.7 - 54 MHz

Characteristic impedance: 50 ohms

Number of radio ports: 1

Number of antenna ports: 10

Supply voltage: +12 to +15 V DC

Port selection: BCD code

Consumption: max. 100mA

Connectors: SO239 (type N on request)

SWR: (depends on selected port – worst case)

1.8 MHz: < 1.00 : 1

14 MHz: < 1.02 : 1

28 MHz: < 1.04 : 1

50 MHz: < 1.08 : 1

Isolation: (depends on ports – worst case)

1.8 MHz: > 90 dB

14 MHz: > 95 dB

28 MHz: > 90 dB

50 MHz: > 80 dB

Insertion loss: (typical)

1.8 MHz < 0.00 dB

14 MHz < 0.01 dB

28 MHz < 0.04 dB

50 MHz < 0.05 dB

Rated power: (depends on antenna SWR)

up to 30 MHz

ROS <1,2 :1................... < 5 KW

SWR <1.5 : 1 ........... < 4 KW

ROS < 2 : 1 ............. < 3 KW

ROS < 3 : 1 ............. < 2 KW

50MHz

ROS <1,2 :1................... < 3 KW

SWR <1.5 : 1 ........... < 2.5 KW

ROS < 2 : 1 ............. < 2 KW

ROS < 3 : 1 ............. < 1.5 KW

Operating temperature range: -30 to +60 °C

Dimensions: W 210 mm x H 120 mm x D 210 mm

Dimensions: (8.27") x (4.7") x (8.27")

Weight: 1.56 kg (3.44 lbs)
