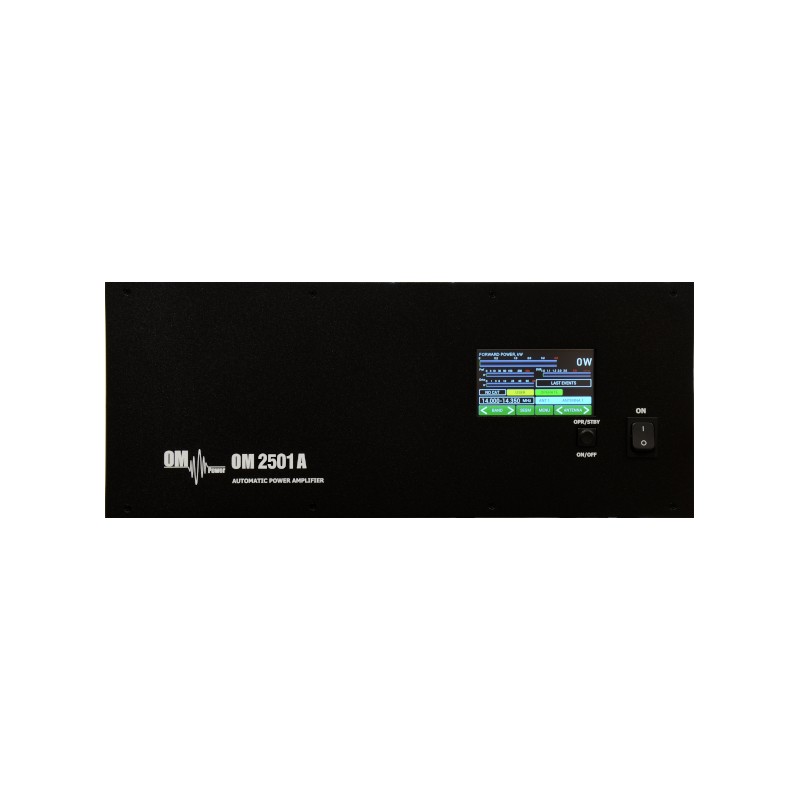

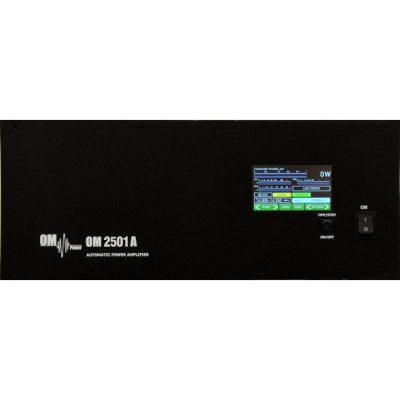

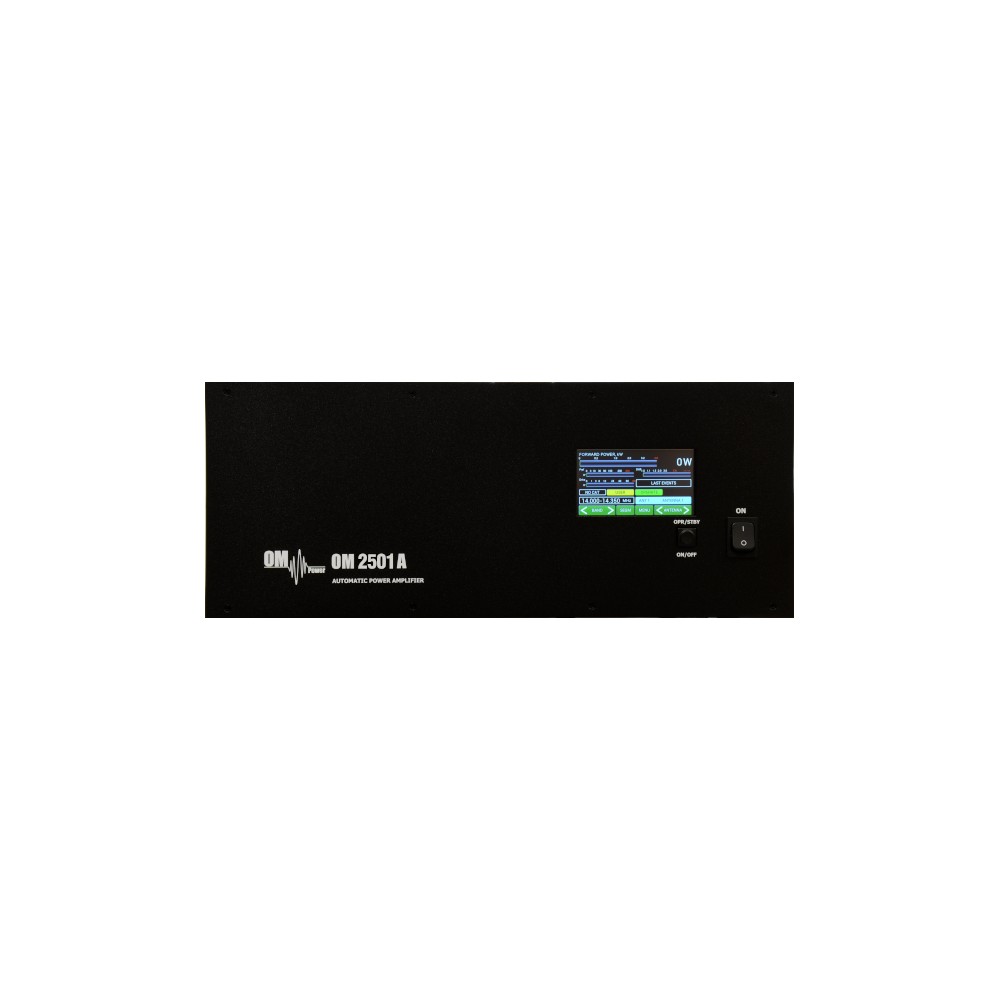

Om Power OM 2501A automatic hf amplifier 2500 watts GU84B

The OM2501A automatic linear amplifier is designed for all shortwave amateur bands from 1.8 to 29 MHz (including WARC bands) and all modes. It features a single piece of FU-278F or GU84B ceramic tetrode.

The advantages of OM2501A:

Full compatibility with TRXs-CAT

- I'M COMING

- YAESU

- ELECRAFT

- Ten-Tec Orion

- Kenwood

- Icom transceiver protocol used by microHAM devices - CI-V output (MK II, MK2R, MK2R+, etc.)

- Flex Radio Series 6xxx

- Apache Labs Anan

Radio frequency sensitive band and frequency switching, for use with non-CAT radios

Automatic switching between bands

Automatic band tuning by segments

Automatic band pass filter switching - BAND DATA output compatible with YAESU radios (BCD code)

Automatic switching of antenna switches: the maximum number of antennas is 10, controlled by BCD output code

Remote control via Windows PC application

OM2501A specification:

Frequency coverage: Amateur bands 1.8 - 29.7 MHz including WARC

Output power: 2500 W in SSB and CW on HF bands,

2000W in RTTY / FM

Input Power: 30 to 60 W for maximum output power

Input impedance: 50 Ohm, VSWR <1.5: 1

Power gain: 17 dB

Output impedance: 50 Ohm unbalanced

Maximum Output SWR: 3:1

SWR protection: Automatically switches to STBY when reflected power is 350W or more

Intermodulation distortion: better than -32dBc

Harmonic suppression: <-50 dBc

Tube: 1x FU-728F or GU84B ceramic tetrode

Cooler: Centrifugal Fan + Axial Fan

AUTO tuning response speed: less than 0.5s within the same BAND, less than 2s if out of BAND

Power supply: switchable voltages - 220/230 / 240V for 50Hz or 230/240 / 250V for 60Hz

(or other primary voltages e.g. 200V 50 / 60Hz for Japan)

Transformers: 2 pcs of 2kVA toroidal transformer

Dimensions: 485 x 200 x 455 mm (width x height x depth)

Weight: 40 kg

Protection circuitry: - VSWR too high

  - Anode current too high

  - Anode voltage error

  - Screen current too high

  - Screen voltage error

  - Mains current too high

  - Mains voltage error

  - Heating voltage error

  - Mistuning by PA

  - Temperature too high

  - Soft start to protect your fuses

  - "ignition lock" with amplifier open

Indications: 4.3" color touch screen display

Features: High level of protection

  Memory for faults and warnings, easy maintenance

  Automatic anode current configuration (BIAS): no need to manually adjust after changing the tube

  Three programmable working modes of the axial fan

  QSK operation complete

  Many operating parameters to view

  REMOTE control - connector for LAN connection - free remote control software

  Support automatic external ANT switching

LAN connection

The power amplifier is interfaced to the LAN via Lantronix's XPORT (type XP1001000-05R). More information can be found at www.lantronix.com.

The XPORT factory default settings are:

IP address: 192.168.1.222

Mask: 255.255.255.0

Gateway: 192.168.1.1

These are strictly default settings. You can change any of these by accessing the XPORT Web GUI via your web browser. Changing other parameters of the XPORT interface is not recommended as this may cause loss of communication. There is no default username or password. We strongly recommend that you protect your web interface with your username and password.

Special software is required for remote control and monitoring via LAN. It is available free of charge and can be downloaded from the following address:

https://www.om-power.com/download/HF_PA_Manager_v3.31-setup.exe.

NOTE: For the software to function correctly it is necessary to have accessible LAN ports 9999 and 10001.
