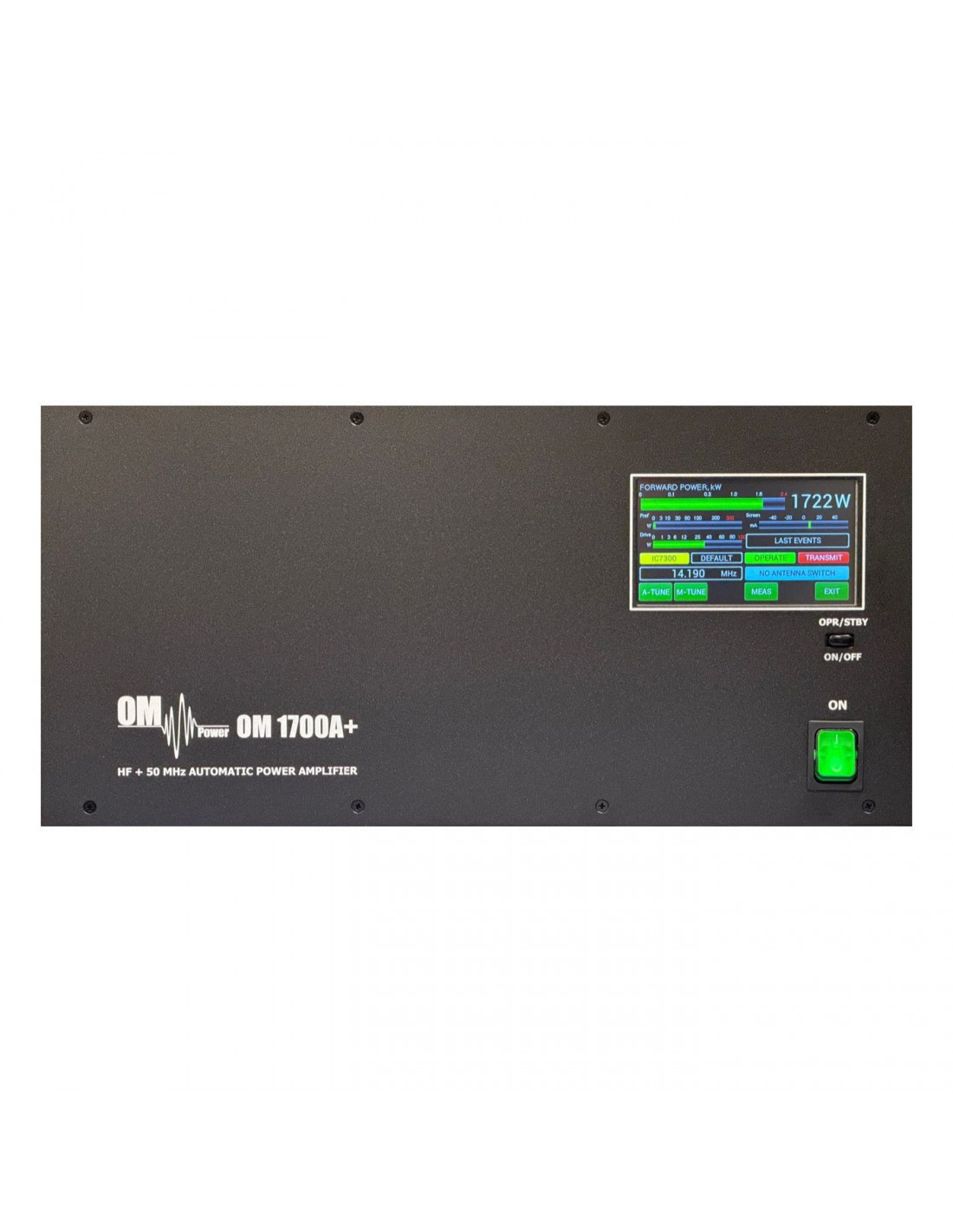

OM Power OM-1700A+ HF Automatic Amplifier, 1700 Watt

OM Power OM-1700A+ HF Automatic Amplifier, 1700 Watt is a lightweight and compact 1700 W class automatic PA that can also be used remotely. The 4CX1500B ceramic tetrode provides sufficient power on shortwave and 6 m in all situations, whether SSB, CW or RTTY. To drive it, a normal transceiver with transmission power from 40 to 60W is sufficient. The PA can be used on all bands from 160 to 6 m, including the WARC bands.

The special feature of the OM-1700A+ power amplifier is its fully automatic operation. There is no longer any need to tune the circuits: the PA measures the transmit frequency and adjusts automatically. This happens very quickly: in the same band in about 0.5 seconds, when changing bands in about 3 seconds. This fully automatic operation doesn't even require a CAT connection! Of course, all common HF transceivers can be connected via CAT, further simplifying the operation of the station. Another connection can be made via Ethernet to the local network. This way you can monitor and control the power amplifier from a remote computer.

Like all OM-Power power amplifiers, the OM-1700A+ is equipped with all the usual safety mechanisms, such as protection against high SWRs, filament current or voltage failures, mains current or voltage failures, temperature, case opening and much more. An error memory helps in subsequent diagnosis. The 4.3" color display shows the operating status very clearly at all times. The display also acts as the (only) control element (touch display). The connection to the power supply is via a 230 V cable; the absorbed power is approximately 3kVA.

Special features of OM-Power OM-1700A+:

Automatic band switching

Automatic tuning

Automatic band filter selection

Clear display, even for error conditions

Error memory facilitates diagnosis

Three selectable cooling modes (two fans)

QSK-capable transmit/receive switching with no-load relay

The power transformer can be easily removed for easy transportation

Remote control and monitoring via Ethernet network

Technical data OM-1700A+:

Frequency range: 1.8 - 29.7 MHz, 50 - 52 MHz

Output power:

SSB 1700W (HF); 1500W (50MHz)

CW 1700W (HF); 1500W (50MHz)

RTTY 1300W (HF);

FT8 1000W (HF); 800W (50MHz)

Input power: 40-60W

Input impedance: 50 Ω (VSWR ≤ 1.5:1)

Output impedance: 50 Ω unbalanced

Gain: 15 dB

Maximum allowable SWR (output): 3:1

SWR protection circuit: Automatic shutdown in case of reverse power ≥ 350 W

Intermodulation products: ≤ 32 dBc

Spurious wave suppression: 1.8 - 30 MHz ≥ 50 dBc

30 - 54 MHz ≥ 70 dBc

Tuning speed: 0.5 s in band, max. 3 s out of band

Tube: 4CX1500B

Fan: 1x radial, 1x axial

Input voltage: 200, 220, 230, 240 VAC 50/60 Hz
