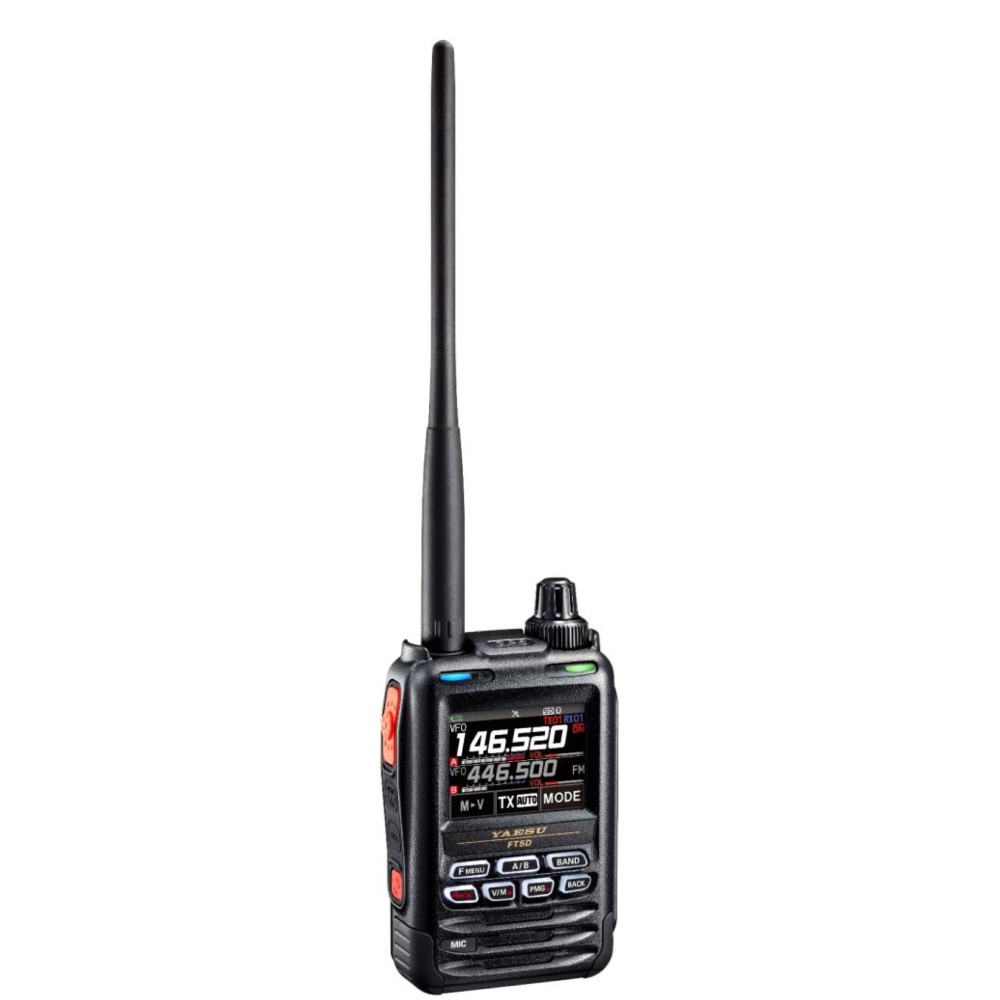

Yaesu ft 5dr portable c4fm transceiver

The Yaesu FT T5DR provides a reliable RF power of 5 W and reaches a 1 W audio power that has been optimized for a quality audio.  Real Dual Band operations (V+V, U+U, V+U, U+V) are available with two independent receivers.  Large individual LED indicators for band A and Banda B instantly present the state and communication methods (C4FM or analog) of each band.  The new FT5DR supports simultaneous C4FM digital

(C4FM/C4FM waiting). {

a high resolution display highlights the frequency of the operating band.  The color of the frequency of the operating band can be selected between white, blue or red.  Three (3) Touch panel keys and seven (7) operational keys under the display offer intuitive operations. {

{ The new Touch & Amp operation; Go is convenient to immediately start communications on a frequently used frequency. {

{ With the new FT5DR the C4FM digital communication features already widespread on the market are available, such as: Automatic mode selection (AMS), Digital Group ID (DG-ID) operation and intelligent navigation function.  The FT5DR also supports the Wires-X portable digital node function.  A portable digital node can be easily configured with the new FT5DR, a portable PC connected to the internet and the optional SC-39 cables kit. {

Furthermore, the advanced features of the new FT5DR are: wireless functioning with free hands using the optional Bluetooth® headset (SSM-BT10);  VOX function;  Automatic group of memory (Mag);  VFO band jumping function;  Wide -range RX coverage with continuous reception from 0.5 MHz to 999.99 MHz (Band A) and 108 MHz to 580 MHz (Band B);  GPS receiver integrated with high sensitivity 66 channels;  APS Data Modem at 1200/9600 BPS;  Battery with high capacity lithium ions of 2,200 mAh (SBR-14li) ions;  Voice registration function; Reception of simultaneous AM/FM transmissions during the monitoring of two frequency channels;  MicroSD card slot.

{{} Download the manual in Italian
