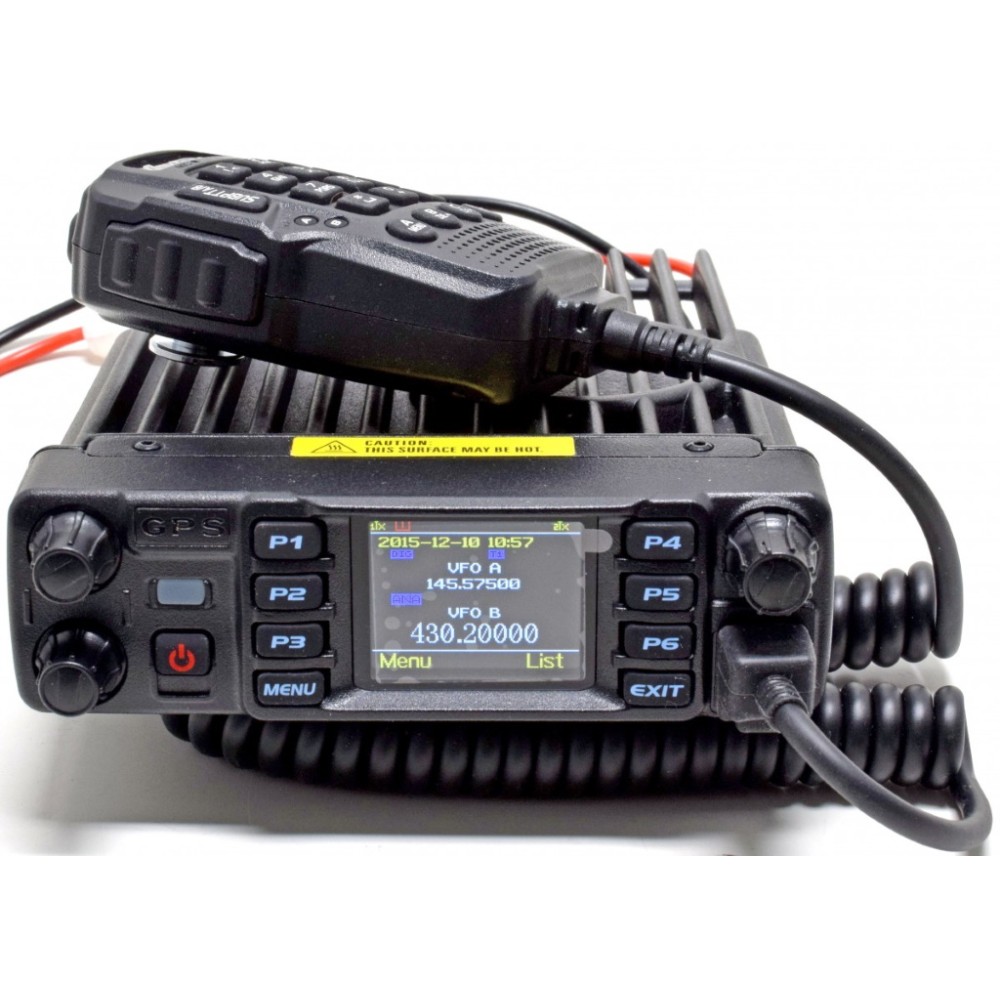

Anytone at d578uv plus dmr digital analog 144 and 430 MHz

The Anytone AT-D578UV-PLUS is a bi-bend radio for digital DMR radio systems, compatible with Tier 1 and 2 mototrbo. The traditional FM mode is obviously equally supported. Unlike many other DMR radios, the AT-D578UV presents a real VFO, which makes it operationally closer to the radio-amaemor style: it is possible to vary the frequency and all the other parameters as in a traditional radio instead of using only pre-programmed memories. Obviously the memories are also on the AT-D578UV: 4000! Another difference compared to the other DMR radios is the possibility of modifying most (unfortunately not all) of the parameters of the transceiver, without having to resort to the connection with a computer for each minimum modification you want to implement. To really access and modify all the settings, however, it is necessary to rely on the CPS programming software and a PC. In addition to the well-known functions such as Aprs in FM, digital roaming and the new Bluetooth option, the AT-D578UV-Plus now offers the possibility of simultaneously receiving a DMR and an analog channel. Of course, two analog channels can also be received simultaneously: each of the two bands has its own control of the volume and its own VFO. The transmission power can be set on four levels: the maximum power is 50 watts in VHF and 45 watts in UHF. The further series of functions provided by the AT-D578UV is very wide: it is possible to store up to 4000 different channels (digital, analog or mixed); It is possible to configure 10000 conversation groups and memory can contain up to 20,000 digital contacts (the DMR user database completes all over the world can be stored in the device). In analog mode, functions such as DTMF, CTCSS and DCS are supported as well as coding with two tones and five tones signals. Ten buttons on the radio and on the microphone can be assigned to individual functions, allowing the user to set their personal preferences. The brightness of the 1.77 "color display and of the backlit keys on the unit and on the microphone can be adjusted in steps, thus guaranteeing an ideal readability also in the sunlight and operation without dazzling while driving in the dark. The roaming function of the AT-D578UV is independent of the position of the device:During Roaming the system checks if a repeater can be reached from a predefined list and sets it automatically if necessary. Roaming channels can be divided into areas, similarly to conventional channels, which, for example, correspond to the geographical regions. Anytone AT-D578UV is equipped with a GPS receiver and position data can be transmitted via radio (DMR-APRS and FM-APRS). The device also has a connector for an external GPS antenna. A WFM receiver for the FM radio band is also available. The connection of the antenna is made with a PL connector. The programming cable (USB / micro-USB) is included in the supply. {

Features:

• {
• { 1.77 -inch color Lk display {
• Numerical keyboard on microphone, 10 freely configurable keys {
• { Twin Band 2m/70cm Banda (V/U, V/V, U/U) {
• { Width of IF channel selectable 12.5/25 kHz (analog) or fixed 12.5 kHz (DMR) {
• { digital: DMR (Tier I/II) and FM analog {
• WFM receiver 87.5 - 108 MHz {
• Up to five programmable DMR IDs {
• { 4000 memories, 10000 conversation groups, 200000 digital contacts {
• 250 areas (memory benches) programmable {
• View of ID (Callsign), Location and country of the partner Qso {
• { Twice Slots available, all the color codes available {
• { transmission power 5, 10, 25, 45 (uhf) / 50 (vhf) watt {
• { Automatic selection of analog/digital mode {
• tone of 1750 Hz {
• { A SQUELCH Tonale: CTCSS, DCS {
• { reporting to tones: dtmf, 2 tones, 5 tones {
• { GPS receiver {
• { new simultaneous analog/digital or analog/analogue reception {
• new many OPS parameters set by radio, without computer {
• { Registration and reproduction of the signal received (DMR only) {
• { new roaming (selection of the repeater reachable from a pre-uv-pruscious list) {{} {
• VOX function
• new bluetooth interface
• individual volume checks for VFO
