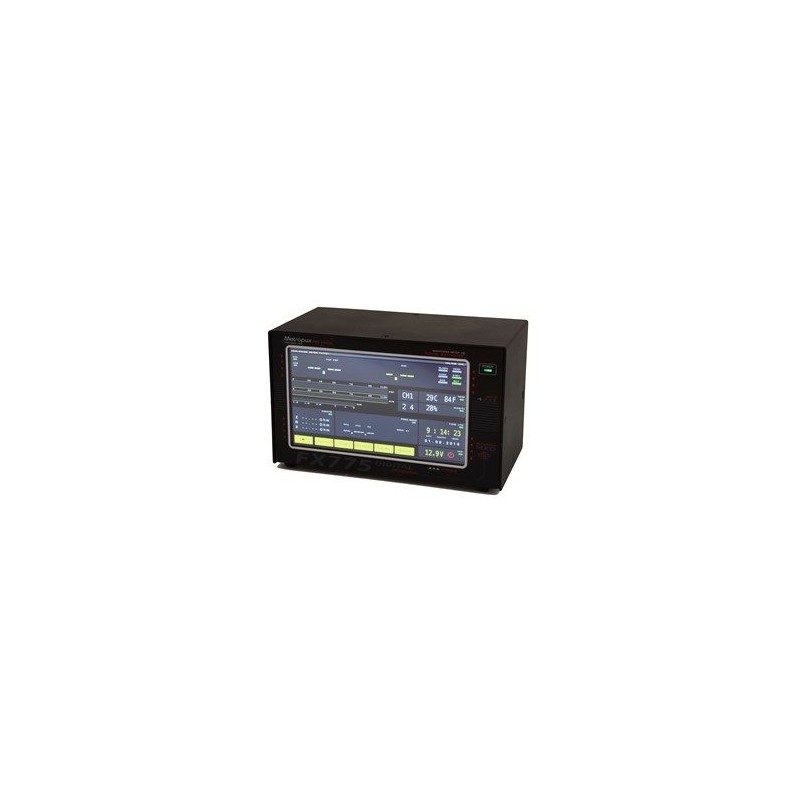

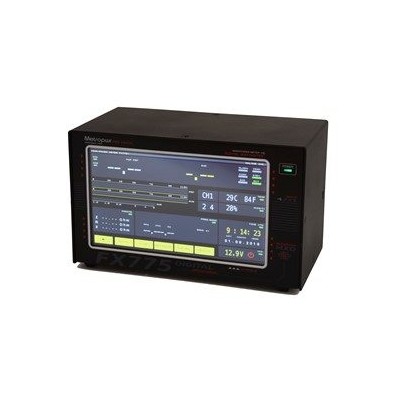

METROPWR FX-775 wattmeter and rometer up to 5 kilowatts

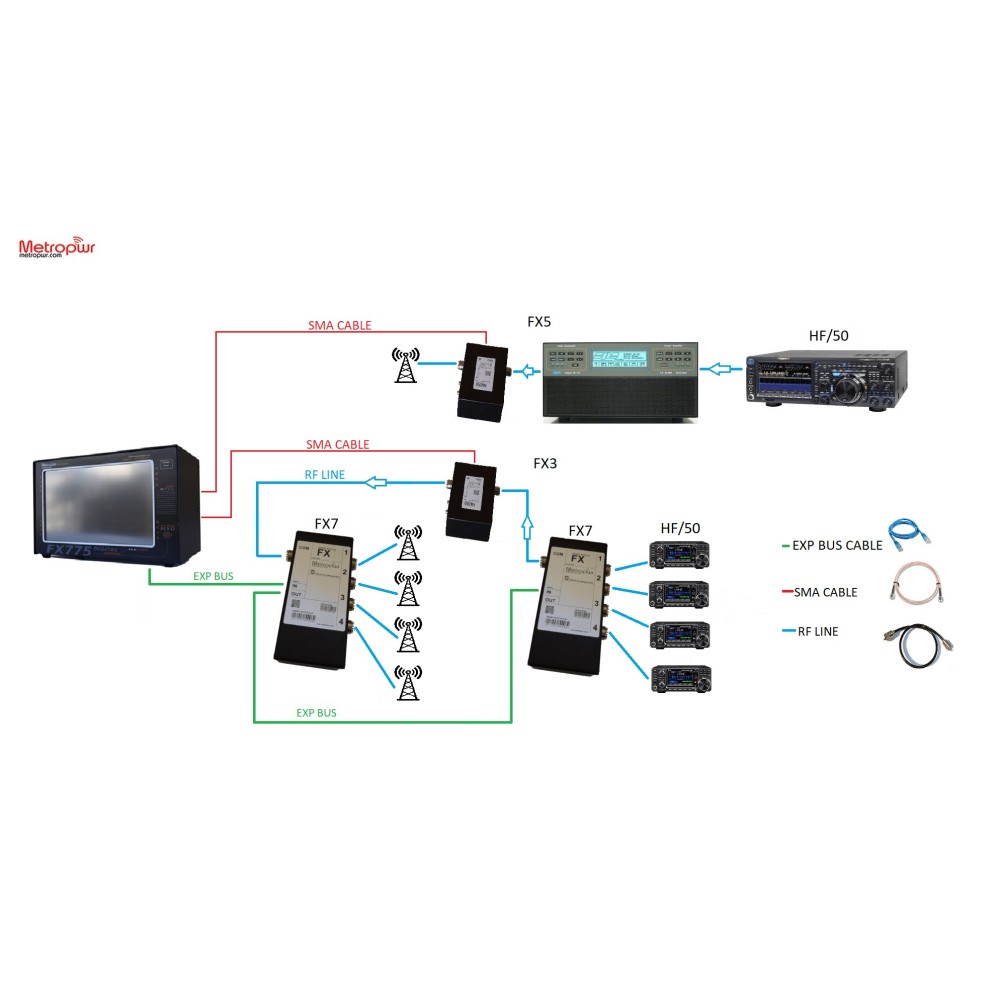

The    METROPWR FX775, is a modern fully digital VECTOR POWER / SWR METER.  It consists of a wattmeter and a power coupler for measurements up to 3/5kW.  It has a very modern design and very high performance.  It has a fast 32-bit processor inside plus a coprocessor to handle all measurements in real time and measure Power (AVG, PeP, dBm), SWR, R, Z, X and more.  It has a fast external bus with which many accessories can be connected in series:

• 1X4 position antenna switch FX7
• 1X4 position radio switch FX7
• 3 / 5kW FX3 / FX5 Directional Coupler
• 3 kW probe INCLUDED

It has a large, very fast and responsive LCD touch screen display, with which it is possible to monitor:

• Measurement errors
• High SWR alarm
• RX / TX / Standbye
• ADC / ACT monitoring
• USB PC RX / TX
• Check the I2C bus

Technical characteristics VECTOR SWR / POWER METER METROPWR FX775

•  Coverage 1.8 / 55 MHz 160 / 6mt
•  HF / 55MHz Power measurement AVG, PeP,dBm, R, Z, | X | , SWR, Frequency
•  Wide range of autoranging powers 0.5 W / 5 kW 10 kW
•  Optional couplers HF / 50 MHz 0.5 W / 3 kW (FX3) - 0.5 W / 5 kW (FX5)
•  SWR Error Accuracy <5%
•  30dB Directivity Coupler
•  Power Accuracy Best 5%
•  Operating voltage 9 / 13.8 V.
•  Dimensions 205x110x130 mm
•  Weight 300gr

Functional characteristics

•  TFT display 7 "(FX775) 16K color Touch screen
•  uP 32 bit + coprocessor
•  14 internal menus (expandable)
•  Internal analog / digital UTC clock
• Weather station (% humidity / temperature C / F)
•  PC USB port
•  16-bit ADC resolution
•  Fast 2 x OUT ports
•  firmware update via USB
• 4 SMA rear ports
• expandable 2 x sensor + 2 x switch antenna
