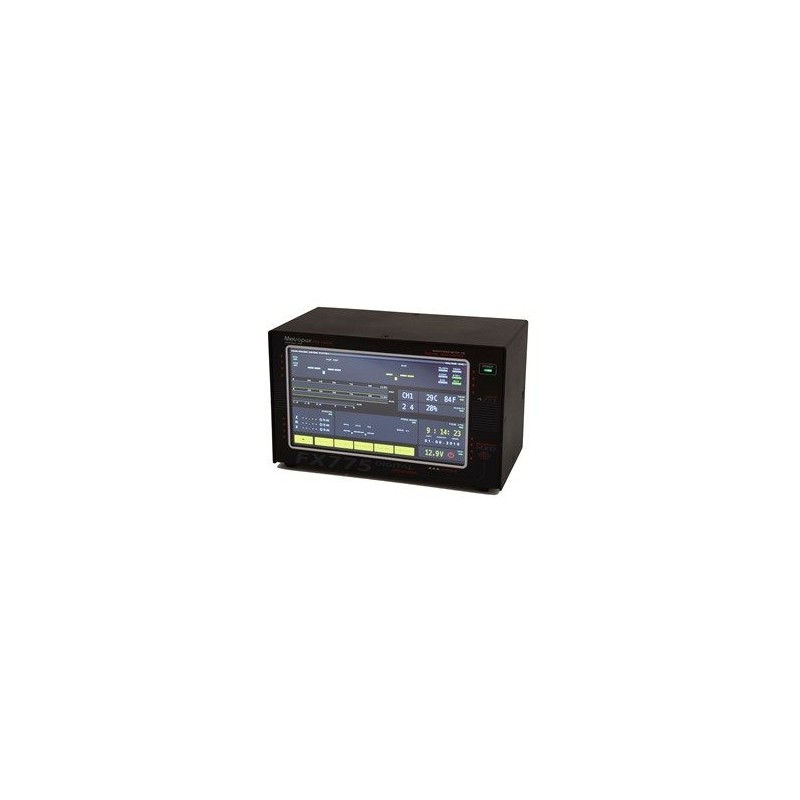

Metropwr FX-775 WattMetro and Rometer up to 5 Kilowatt

{

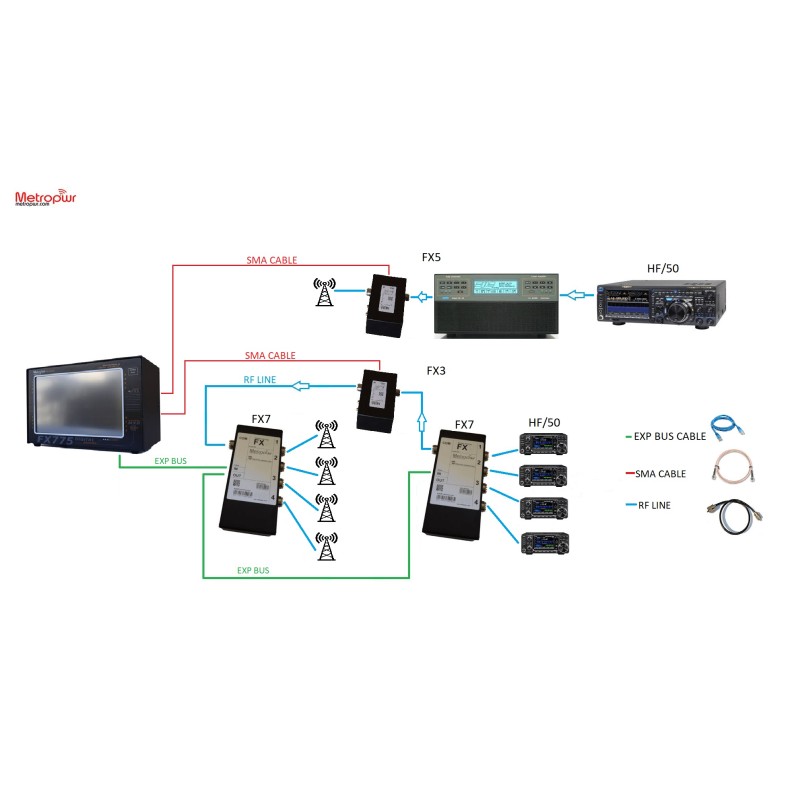

The { {{} Metropwr FX775, is a modern vector power / switch meter completely digital.  is composed of a wattmeter and a power coupon for measures up to 3 / 5kw.  has a very modern design and very high performance.  { has a quick 32 -bit processor inside a covering line to manage all the measurements in real time and measure power (AVG, PEP, DBM), SWR, R, Z, X and more.  { has a fast external bus with which it is possible to connect many accessories in series:

• {
• Antenna switch 1x4 positions fx7 {
• Radio switch 1x4 positions FX7
• Directional coupling 3 / 5kw FX3 / FX5 {
• 3 kW probe included

{

it has a large very fast and reactive touch screen display, with which it is possible. monitor:

{

• >
• Measurement errors
• Alarm High SWR
• RX / TX / Standbye {
• monitoring ADC / Act {
• USB PC RX / TX {
• Check the I2C bus {

{

{ {007 007} Technical features Vector SWR / Power Metter Metropwr FX775

{

• {
• Cover 1.8 / 55 MHz 160 / 6mt {
• HF / 55MHz measures AVG power, PEP,DBM, R, Z, | X |  , swr, frequency
• Wide range of Autoranging powers 0.5 W/5 kW 10 kW
• Optional coupons HF / 50 MHz 0.5 W / 3 KW (FX3)-0.5 W / 5 kW (FX5)
• Precision SWR & LT Error; 5%
• Directivity coupling 30db
• Best power precision 5%
• Operating voltage 9/13.8 v.
• dimensions 205x110x130 mm {
• Weight 300gr {

{

Functional characteristics

{

• {
• TFT 7 "display (FX775) 16 K in touch screen colors {
• Up 32 Bit + COVER {
• 14 internal menus (expandable)
• UTC analog/digital internal digital watch
• Meteorological station (% humidity / temperature c / F)
• USB port of the PC
• ADC 16 Bit resolution
• fast 2 x doors out
• Firmware update via USB
• 4 rear doors
• { Expandable 2 x sensor + 2 x Switch antenna
