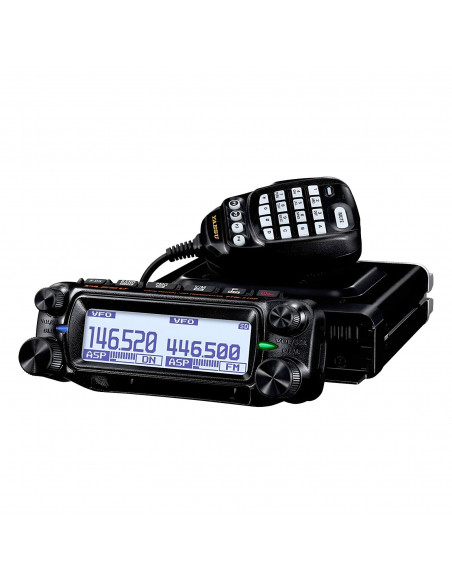

Yaesu FTM-310de FM/C4FM VHF and UHF transceiver

Yaesu FTM-310de FM/C4FM VHF and UHF

The series FTM-310de of Yaesu offers true functioning Bibanda with two independent receivers. It is possible to receive signals simultaneously on different bands or also on the same band - including the double C4FM/C4FM receiver (V/U, V/V, U/V {

The output power reaches up to 55 W in VHF and 50 W in Uhf , also selectable at 25 W or 5 W. A robust heatsink with Funnel Air Convection conductor (FACE) {{{} ensures stable performance also in prolonged use. {

The audio system is the acoustic enhanced speaker system (aess) : a 3 W speaker in the control head and another 3 W in the main unit offer together 6 W of audio power. The information is displayed on a clear points matrix display . {

Main functions common to both models

• {
• {

  { digital mode C4FM with low error rate and correction technology Yaesu

  { {
• {

  Super-DX : Sensitivity of reception improved in digital and analog mode

  { {
• {

  PMG (Primary Memory Group): simultaneous monitoring of up to five frequencies stored with real time graph

  { {
• {

  Mag (Memory Auto Grouping): Automatic or personalized grouping of memory channels

  { {
• {

  CFL (Customized Function List): Quick access to up to nine favorite functions

  { {
• {

  { Band Scope with up to 47 channels, commutable with double reception

  { {
• {

  AMS (Automatic Mode Select): Automatic switching between digital C4FM signals and analogous FM

• dg-ID (Digital Group ID) and GM (Group Monitor) for targeted group communications

only in the FTM-310DEASP

• asp (audio signal processing): advanced signal processing in FM mode

  • cars: automatic activation with weak signals

  • manual: manual control on/off

  • note: the ftm-310de does not include ASP. It is only available with the optional spu-1 module .

other features

• 66 channel GPS receiver for position data and aprs® (1200/9600 BPS)

• complete support for yaesu wires-x

• reception coverage from 108 MHz to 550 MHz (main/diver)

• bluetooth® available with optional bu-5 module

• flexible control head assembly with the sjmk-500 kit

• Microphone socket on the control head or on the main unit

  {
