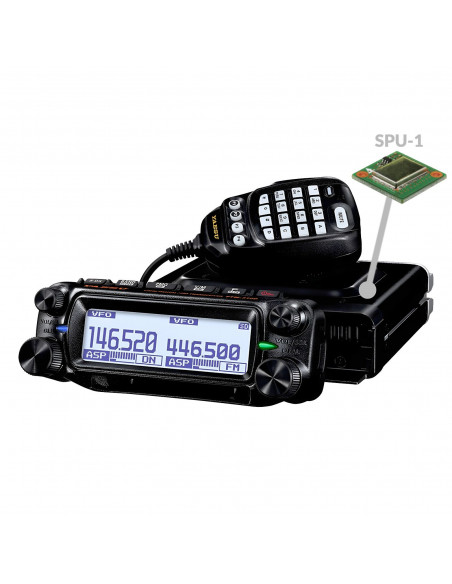

Yaesu FTM-310D Remoteterator C4FM VHF and UHF

{

Yaesu FTM-310D Remoteterator C4FM VHF and UHF

{

The series FTM-310de of Yaesu offers true functioning Bibanda with two independent receivers. It is possible to receive signals simultaneously on different bands or also on the same band - including the double C4FM/C4FM receiver (V/U, V/V, U/V {

{

{

The output power reaches up to 55 W in VHF and 50 W in Uhf , also selectable at 25 W or 5 W. A robust heatsink with Funnel Air Convection conductor (FACE) {{{} ensures stable performance also in prolonged use. {

{

{

The audio system is the acoustic enhanced speaker system (aess) : a 3 W speaker in the control head and another 3 W in the main unit offer together 6 W of audio power. The information is displayed on a clear points matrix display . {

{

{

Main functions common to both models

• {
• {

  digital mode C4FM  with low error rate and correction technology Yaesu

• super-dx : sensitivity of reception improved in digital and analog mode

• PMG (Primary Memory Group): simultaneous monitoring of up to five frequencies stored with real time graphic

• Mag (Memory Auto Grouping): automatic or personalized grouping of memory channels

• cfl (customized function list): quick access to up to nine favorite functions

• Band Scope with up to 47 channels, commutable with double reception

• ams (Automatic Mode Select): automatic switching between digital C4FM signals and analog fm

• dg-ID (Digital Group ID) and GM (Group Monitor) for targeted group communications

  {

only in "> FTM-310DEASP

• asp (audio signal processing): advanced signal processing in FM mode

  • cars: automatic activation with weak signals

  • manual: manual control on/off

    {
  • {

    Note: the ftm-310de does not include asp. It is only available with the optional spu-1 module .
