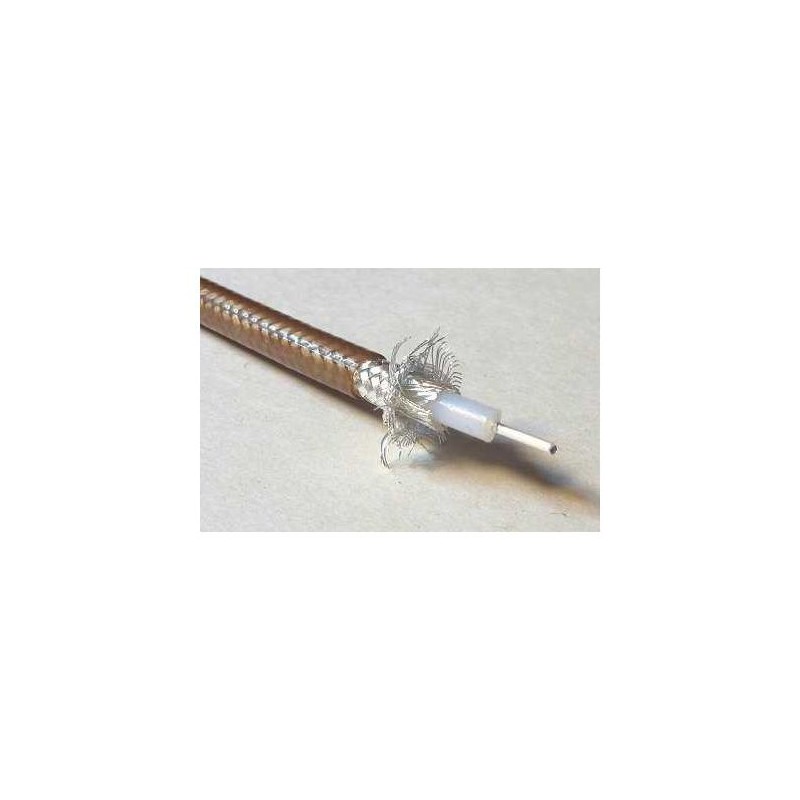

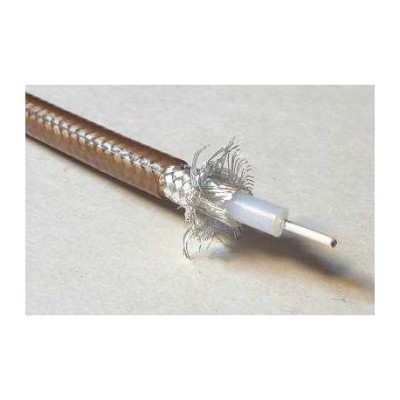

RG 142 U Low -loss cable for professional loss
- Write a review
€7.30
{
internal diameter of the diameter of the conductor Span>
0.92 mm
structure of the conductor structure Interior
wire Solid Span>
maximum cable diameter (mm) 50.0000
factor of shortening 0.69
radius of curvature curvature (mm) 50
attenuation 5000mHz (DB) { 120
{
{ attenuation 6000 MHz (DB)
{ 136
{
{ Attenuation 30mHz (DB)
{ 5.5
{
{ Attenuation 144MHz (DB)
{ 13
{
{ { Attenuation 432MHz (DB)
{ 23.9
{
{ { Attenuation 1296MHz (DB)
{ 48.8
{
{ Attenuation 2320 MHz (DB/100m) 77.0
brand
wimo
cable diameter [mm]
5
{
{
{
{
High quality coaxial cable, isolation in PTFE. {
RG-142 / U is a high quality coaxial cable with isolation in Teflon (PTFE), with low loss. { The cable has a double shielding with two silver -coated braids. { The dielectric is made up of PTFE, the central conductor is a solid thread, which translates into excellent temperature stability and excellent attitude to the high power. We provide this type of cable per meter. {
technical specifications
{{
| product name | RG-142/U |
|---|---|
| Type of cable | RG-142/U |
| Weight/meter | 56 g |
40032
Data sheet
- MPN
- 7438641839230
New
