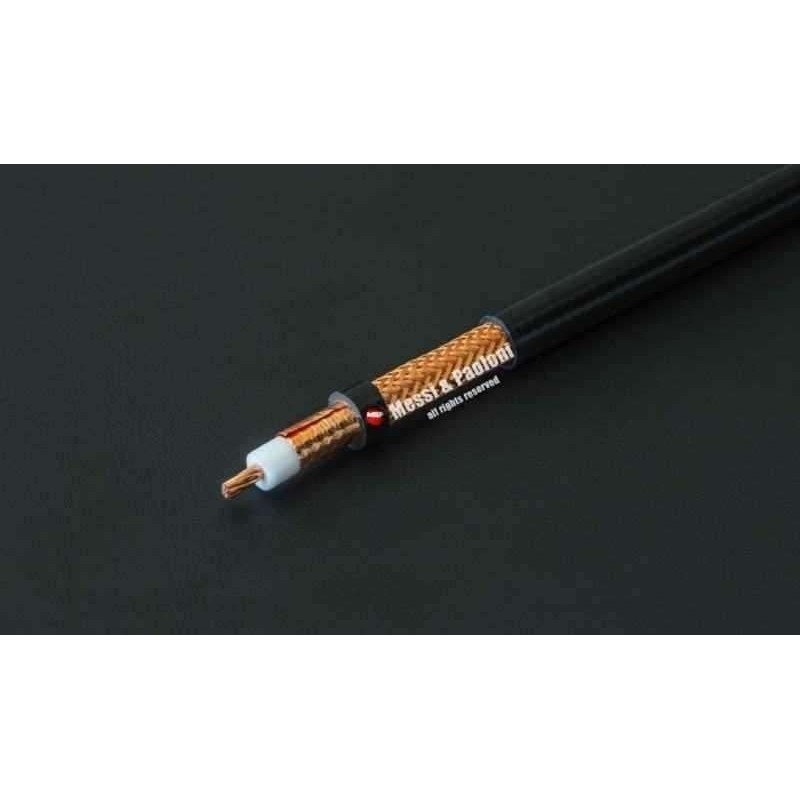

Coaxial cable Messi & Paoloni M&P Ultraflex 10
- Write a review
€4.75
Coaxial cable
{Messi & Amp; Paoloni
{Extraflexible professional with Cordata Anima for radio amateurs. The external protective sheath is in black PVC, resistant to UV rays. The cable guarantees exceptional performance in terms of mechanical flexibility and electrical characteristics. Its performances are so high as to be even just up to 10 MHz to our model with rigid Broad Pro 50 conductor. Above this frequency, although it is made with a geometric and concentric consortium, it guarantees characteristics at the top of the category (10.3 mm: same size as RG 213 U). {
| nominal impedance +/- 3 ohm | 50 ohm | |
| Est/int | 80/40 mm | |
| Installation temperature | -40 ° to + 60 ° C | |
| capacity +/- 2 pf/m | 78 pf/m | |
| propagation speed | 83 % | |
| Schermature efficiency | & GT; 105 db (class A ++) | |
| internal conductor resistance | 3 ohm/km | |
| external conductor resistance | 9.2 ohm/km | |
| tension test of the sheath | 8 KV | |
| weight (100m) | 13 kg | |
| Max power of peak | 8300 watts |
