Coaxial cable 50 Ohm Aircell 7

Name: Coaxial cable 50 Ohm Aircell 7
Brand: SSB-Electronic GmbH
SKU: 40024
Price: 3.83 EUR
Availability: InStock

Scegli la bobina

Reference 40024

In Stock

€3.83

Order processing times and shipping times:

Order processing includes: order registration after payment, adding the order to the list of previously registered orders, replenishing the product if it is not in stock, checking the product, packaging the product, preparing a shipping label for the product, and handing over the shipment to the courier.

Orders are generally processed within 3 business days of receiving payment, however, we strive to fulfill orders the same day whenever possible.

Once the goods have been picked up by the courier, it is not possible to change the shipping address or cancel the order.

When will it arrive?

Shipping and delivery times for products entrusted to the courier vary from 1 to 5 business days.

Deliveries are made Monday through Friday.

Delivery times are purely indicative and are in no way binding. Shipments are handled by external couriers (e.g., Poste Italiane Group, SDA, GLS, BRT, UPS, DHL, MailBoxes, etc.), so we cannot guarantee a specific delivery date, only an approximate timeframe.

Deliveries are subject to undetermined variations during holidays, unexpected or planned carrier strikes, shipment management issues with the courier, or significant weather conditions.

Deliveries may be delayed if the shipping company encounters management issues: e.g., misdirected shipments to other regions, lost shipments, adverse weather conditions, locations not served daily, delays during the Christmas period, delays during the Black Friday period, etc.

{

{ Aircell ® 7 is a super-lowering cable with low loss of 7mm (287 ") excellent for HF use and can be used up to the microwaves. Ideal for uses in which the dimensions must be contained or where high flexibility is required.

{

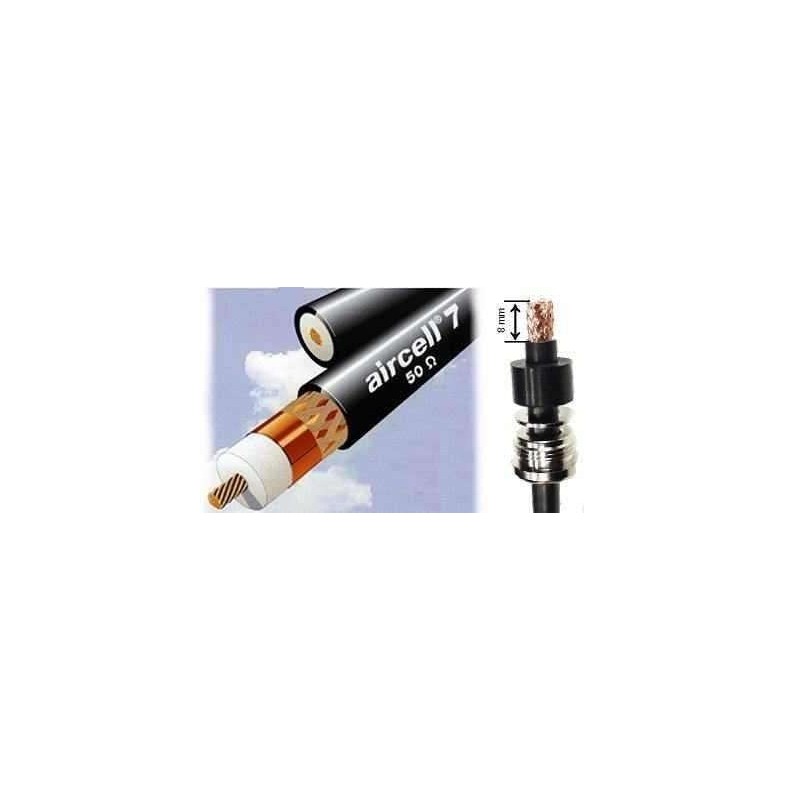

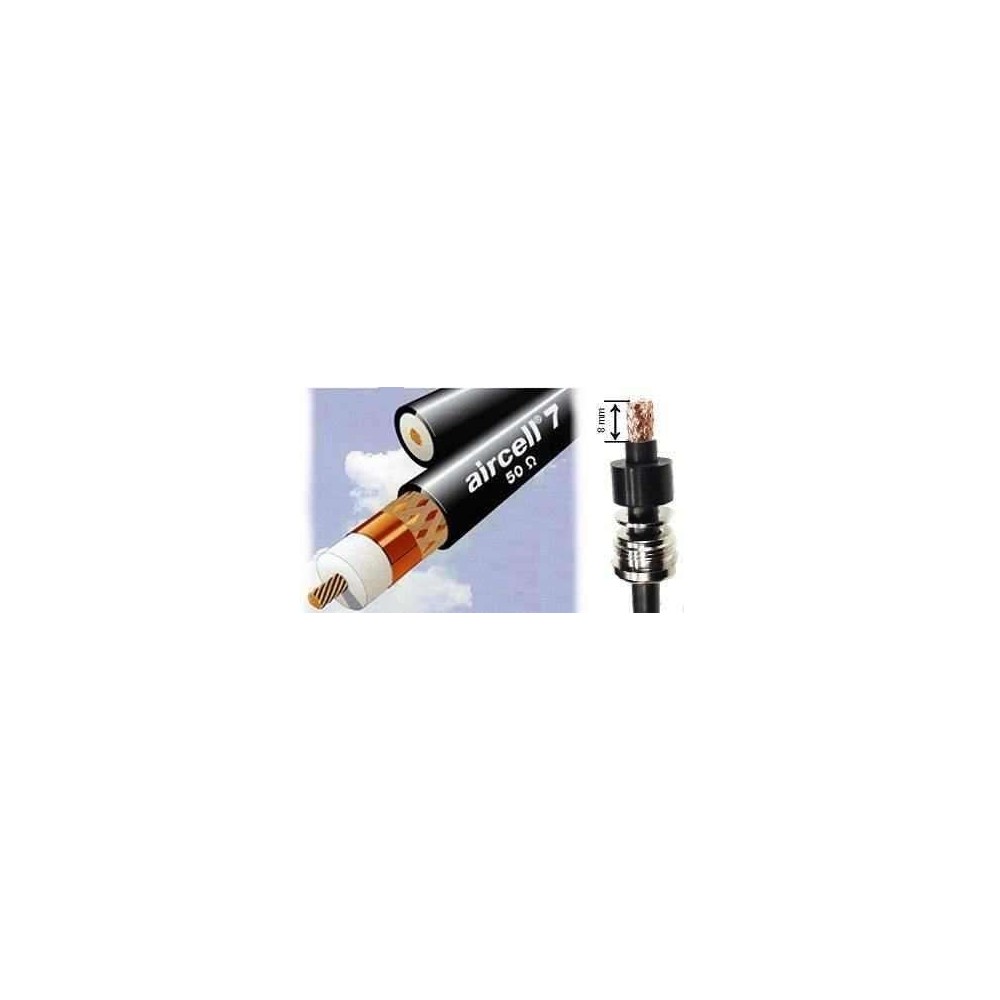

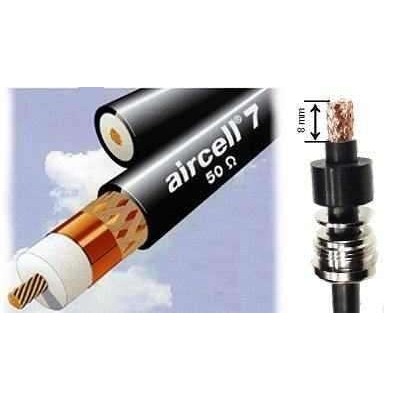

Aircell 7 presents a central conductor composed of several flexible intertwined conductors. Double screen composed of a sheet of copper and a copper braid. An external PVC coating guarantees excellent protection from UV (Ultra Violetti) rays. {

{

A complete range of high quality connectors is available for Aircell 7: BNC, N and PL259. {
mechanical and electrical specifications:
both the Aircom Plus cable and Aircell 7 satisfy the ISO 9002 standards and born AQAP. {
Assembly instructions Aircell ® 7 connectors

{

impedance 50 ohm, external diameter 7.3 mm, central conductor diameter 2.7 mm, dielectric diameter 5.00 mm, speed factor 0.83, capacity for m. 74.0 PF, minimum curvature radius 25.0 mm, weight per 100 m. 7.2 kg, Operating Nominal temperature -30/+80 C, maximum power 10 MHz 2960 W - 100 MHz 850 W - 1000 MHz 190 W.

{
