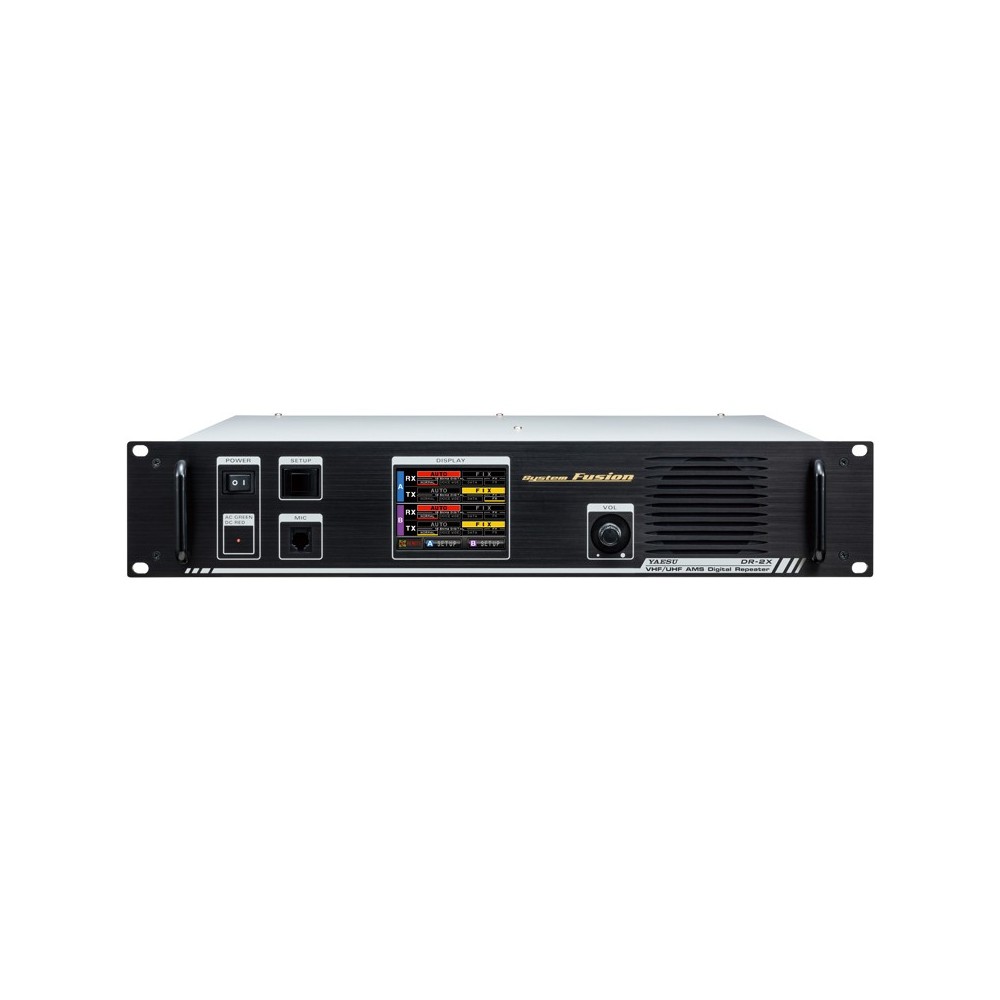

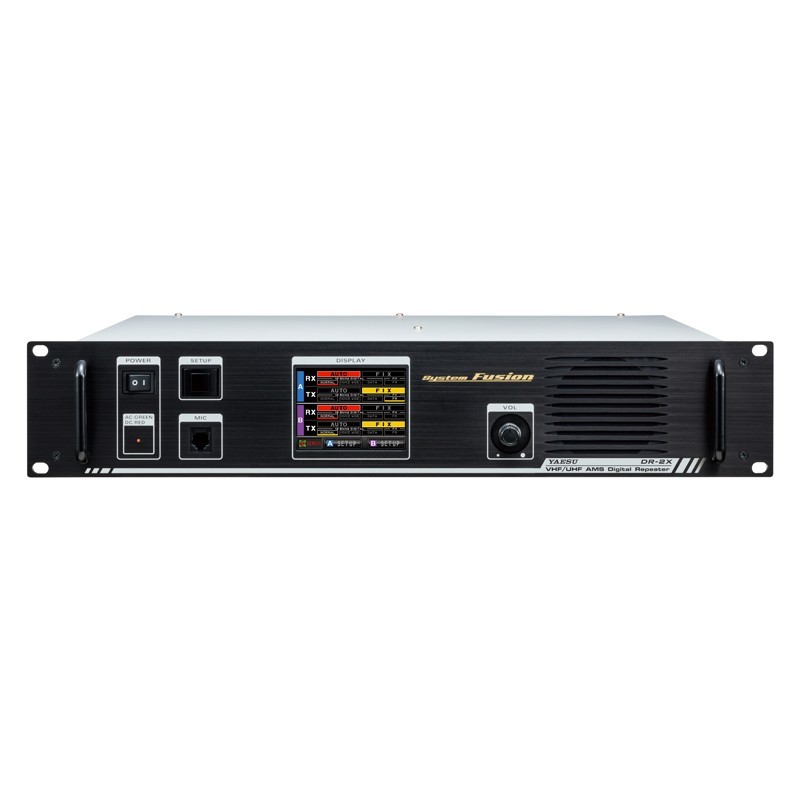

Yaesu Dr-2xe Digital Repeater C4FM/FM

Yaesu DR-2X is a conventional and double reception Dual Mode Dual Mode Repeater C4FM/FM that covers VHF and UHF amateur radio bands. DR-2X integrates the use of conventional FM communications with digital C4FM communications thanks to its exclusive AMS

{ functions of DR-2X
• Modulation mode: conventional FM, digital C4FM
• The AMS (Automatic Mode Select) function automatically recognizes the signal received as digital C4FM or conventional FM
• 3.5-inch color touch panel {
• High power RF output, extremely reliable: 50 W/20 W/5 W
• The connector for the microphone on the front panel is foreseen for the test of the repeater transmitter and allows use as a base station
• Advanced functions: the control I/O control on the rear panel allows the connection to the "S-COM 7330" repeater controller up to a maximum of three (3) DR-2X unit)

exclusive functions of DR-2X : {{} • Double reception function
• "News Station" function that allows you to share with members the vocal and text messages
• Facilitation function that facilitates the setting of the setting of the Groups
• Stable and high output power with large heat dissipator
• commercial components for long-term reliable operation
• IMRS function (internet-bookd multi-site Repeater System) for a simple coverage of an extended area via the Internet (option)
{{ Excellent audio quality and reliable communications
C4FM modulation presents better Beries (bit errar installments) compared to other digital modulation systems and guarantees reliable communications. The Yaesu Digital Clear Voice technology for C4FM uses a 12.5 kHz bandwidth that allows high quality voice communications. {

FM compatibility for digital communications with AMS (Automatic Mode Select)
System Fusion allows the connection between all users operating in different ways. In System Fusion this is possible thanks to AMS. The AMS function automatically recognizes the signal as a conventional digital C4FM or FM, therefore DR-2X retransmit it in the preset communication mode. {

The double reception function ensures operating flexibility
The exclusive DR-2X Double Received Simultaneous Receal allows the control operator to assign an additional frequency for the control of the repeater, the transmission of emergency messages or for a simple second frequency of Uplink. The control operator can also assign separate downlins frequencies based on the frequencies of Uplink.
Group monitor function
The revolutionary Group Monitor function of Yaesu allows you to quickly and efficiently trace numerous resources, viewing the data on telemetry and on the intensity of the signal of the members who share the same number of digital identification number. Group.
"News Station" function improved
groups or individual users can quickly memorize and recover digital and text digital messages. Users can access the messages on request, at any time of the day.
simple setting (display with 3.5-inch color touch panel) image of IMRS (internet-bookd multi-site Repeapater System) for use with large coverage (option)
impers (Internet-bookd Multi-Site Repeater System) allows the operator of the repeater to connect more repeaters to a WAN (Wide-Area-Network) network or to a local LAN network (Local-Area-Network), due to the deficiencies of reliability of the Connections of the WAN (Wide Area Network) network, such as the Internet, DR-2X integrates direct connectivity between the repetitions, offering a large variety of environments of environments of environments of environments Network and ensuring high quality digital and analog communications, also where any other solution is inadequate.
Advanced functions
The control i /o on the rear panel can be connected to the repeater controller "S-COM 7330". This controller can manage up to three (3) DR-2X units, offering programmable acoustic signal control, timer, access methods and other functions. other features
• Possibility of assembly on 19 "
tcxo rack of ± 2.5 ppm with high stability
• DSQ signal (Digital Squelch signal Code)
• CTCSS and DCS report
• Announcement ID (item mode: Requires FVS-2)
• operation as a base station
• Tot (time out timer)
• Firmware updates

Download the brochure
