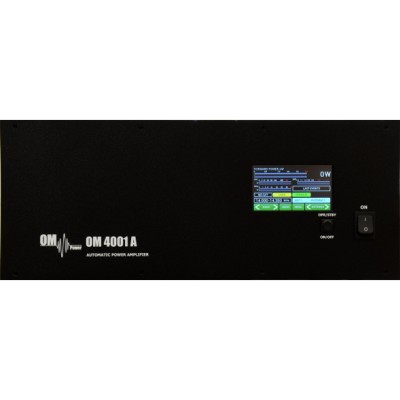

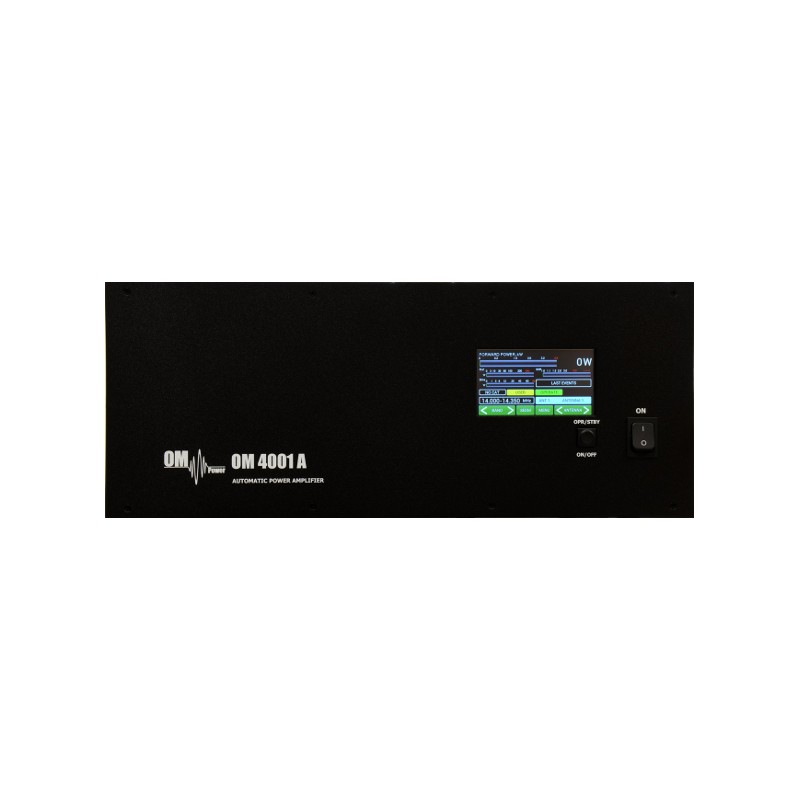

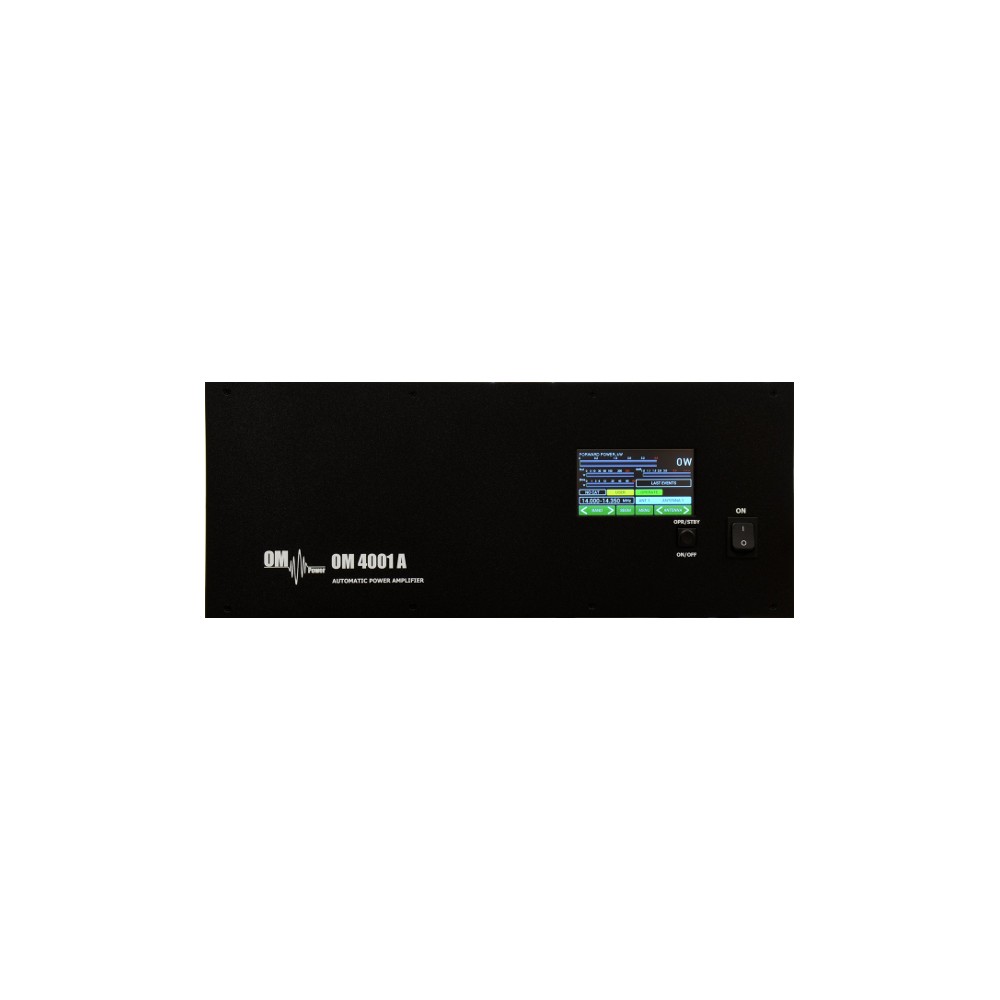

The OM Power Amplifier OM 4001A is an automatic power amplifier, designed for use on all shortwave amateur bands from 1.8 to 29.7 MHz (including WARC bands) and all modes. It comes with two pieces of FU728F ceramic tetrode.
The advantages of OM 4001A:
-
-

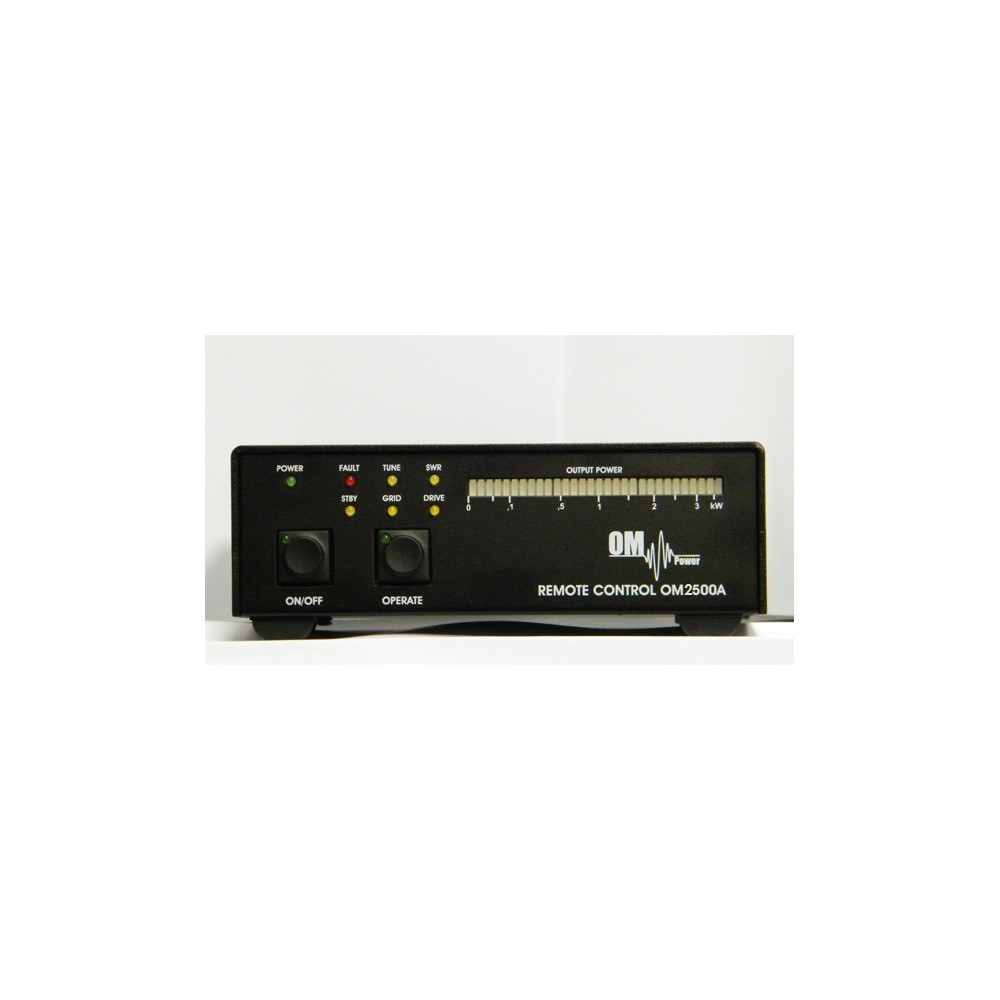

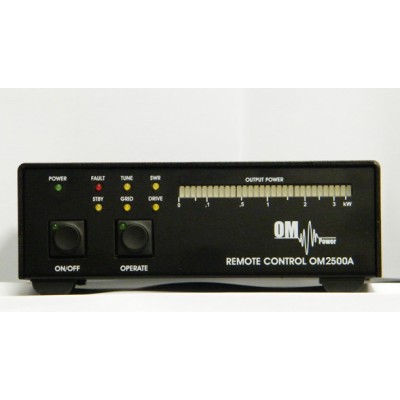

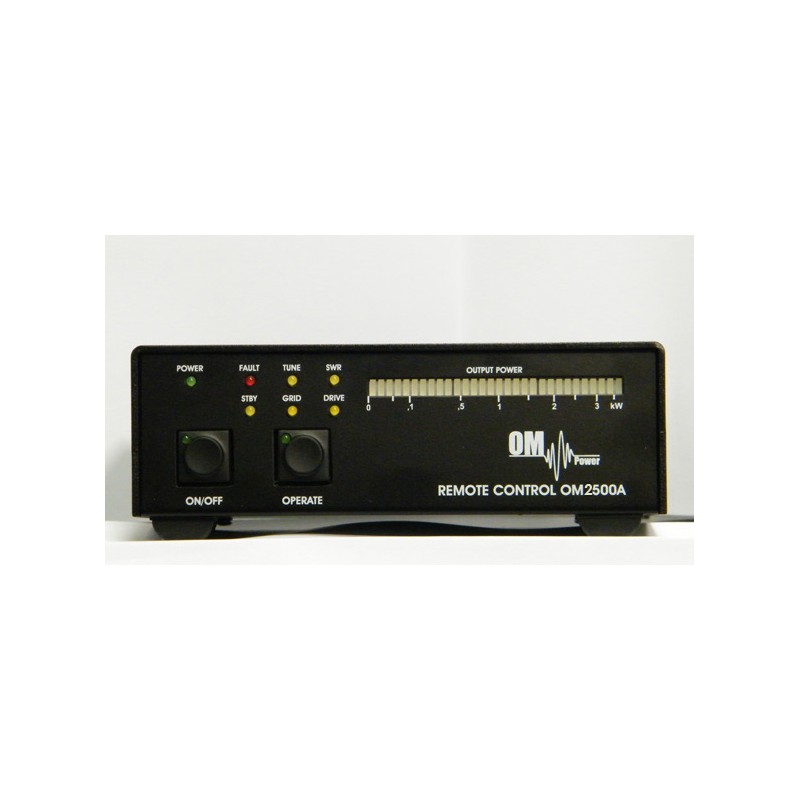

- Remote control via PC Windows application
- Frequency coverage: Amateur bands 1.8 - 29.7 MHz, including WARC
- Output power: 4000+ W in SSB and CW on HF bands, 3000 W in
- RTTY and DIGI modes
- Input Power: Typically 40 to 60W for maximum output power
- Input impedance: 50 Ohm, VSWR <1.5: 1
- Power gain: 17 dB
- Output impedance: 50 Ohm unbalanced
- Maximum Output Output: 3:1
- SWR protection: Automatic switching to STBY, when the reflected power is equal to or greater than 350 W
- Intermodulation distortion: -32 dB below nominal output
- Harmonic suppression: <-50 dBc
- tubes: 2x FU728F ceramic tetrode
- Cooler: Centrifugal blower + Axial blower
- Auto tuning response speed: less than 0.5 in the same BAND,less than 3 if not in BAND
- Electrical power supply: switchable 2 x 220/230 / 240V - 50 Hz one or two phases
- Transformers: 2 pcs of 3kVA toroidal transformer
- Dimensions: 485 x 200 x 455 mm (width x height x depth)
- Weight: 46 kg
Full compatibility with
- - ICOM
- - YAESU
- - ELECRAFT
- - Ten-Tec Orion
- - Kenwood
- - Icom transception protocol using microHAM devices - CI-V output (MK II, MK2R, MK2R+, etc.)
- - Flex Radio Series 6xxx
- - Apache Labs Anan
- RF sensitive band and frequency switching, for use with radios that do not have CAT
- Automatic switching between bands
- Automatic band tuning based on segments
- Automatic band pass filter switching - BAND DATA output compatible with YAESU radios (BCD code)
- Automatic switching of antenna switches: the maximum number of antennas is 10, controlled by BCD output code
-
