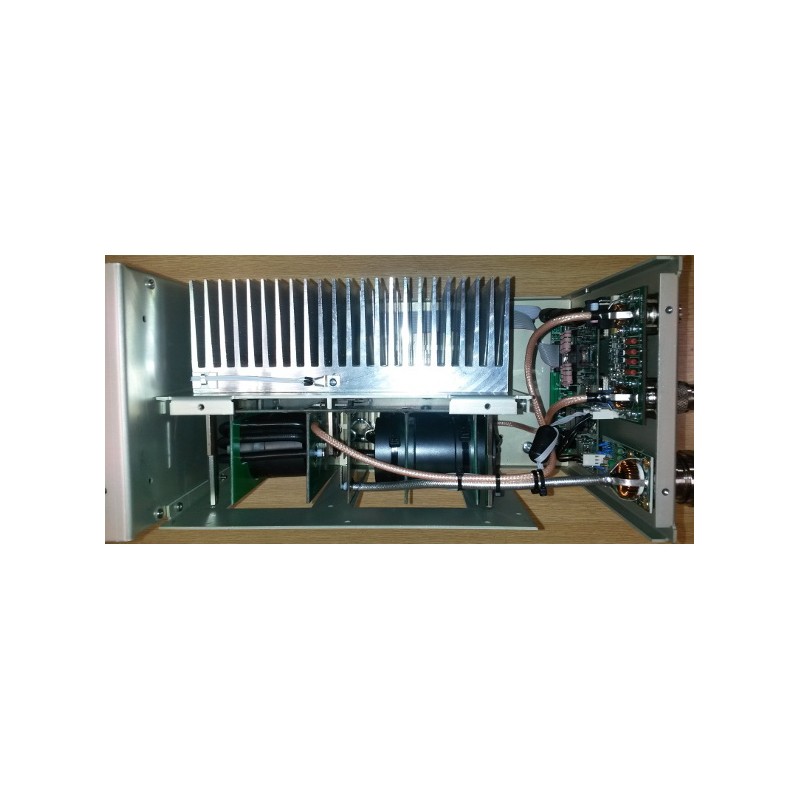

OM Power OM10C high power combiner 10 kw

The OM10C high power combiner is designed for all shortwave amateur bands from 1.8 to 29.7 MHz and a maximum PEP output power of 10kW.

The OM10C high power combiner is designed for all shortwave amateur bands from 1.8 to 29.7 MHz and a maximum output power of 10 kW PEP.

OM10C specifications:

• Frequency coverage: (1.8 – 29.7) MHz continuous
• Rated power: 10 kW PEP or continuous carrier into a matched load (VSWR less than 1.2:1). Reduce output at increased VSWR, linearly up to 5 kW at VSWR up to 2:1

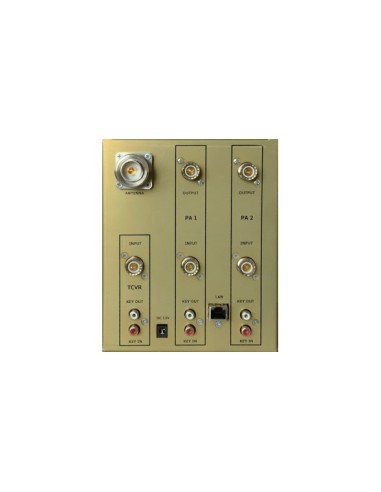

• Input impedance: 50 ohm unbalanced SO239 UHF input connector
• SWR: Less than 1.2:1 across the band, input VSWR with 50 ohm loads at the two splitter outputs: less than 1.2:1, (1.8 - 30) MHz continuously (no tuning, no switching)
• Output impedance: 50 ohm unbalanced, 7/16“ connector output
• Insertion loss: very low insertion loss, less than 0.3 dB
• Indications: 4.3" color touch screen
• Mechanical parameters: 165 mm x 200 mm x 350 mm (width x height x depth)
• Weight: 8.1 kg
• LAN connection

The power amplifier is interfaced to the LAN via XPORT produced by Lantronix (type XP1001000-05R). For more information, visit www.lantronix.com.

The XPORT factory default settings are:

IP address: 192.168.1.233

Mask: 255.255.255.0

Gateway: 192.168.1.1

These are strictly default settings. You can change any of them by going to the XPORT web GUI via your web browser. We do not recommend changing any other parameters of the XPORT interface as this may cause a loss of communication. There is no default username or password. We strongly recommend that you protect your web interface with your username and password.

Special software is required for remote control and monitoring via LAN. It is available for free; can be downloaded from the following link: Remote control software version 1.04

NOTE: For the software to function correctly, LAN ports 9999 and 10001 must be accessible.
